Catapult Vector User Manual
Contents
1. OUTLINE ...................................................................................................................Pg. 2
2. VECTOR S7 DEVICE ................................................................................................ Pg. 2 - 4
3. SYSTEM LOGIN ........................................................................................................Pg. 4 - 5
4. COLLECTING DATA ..................................................................................................Pg. 6 - 7
5. DOWNLOADING DATA ..........................................................................................Pg. 7 - 8
6. SOFTWARE USER GUIDE LINKS ............................................................................. Pg. 8
9. REGULATORY NOTICES ......................................................................................... Pg. 10 - 11
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vector S7 and is the answer not in the manual?

Questions and answers

Related Manuals for Catapult Vector S7

Summary of Contents for Catapult Vector S7

  • Page 1: Table Of Contents

    Catapult Vector User Manual Contents 1. OUTLINE …………………………………………………………………………………………………….Pg. 2 2. VECTOR S7 DEVICE …………………………………………………………………………………… Pg. 2 - 4 3. SYSTEM LOGIN …………………………………………………………………………………………..Pg. 4 - 5 4. COLLECTING DATA ……………………………………………………………………………………..Pg. 6 - 7 5. DOWNLOADING DATA ………………………………………………………………………………Pg. 7 - 8 6. SOFTWARE USER GUIDE LINKS ………………………………………………………………….. Pg. 8 7.

  • Page 2: Outline

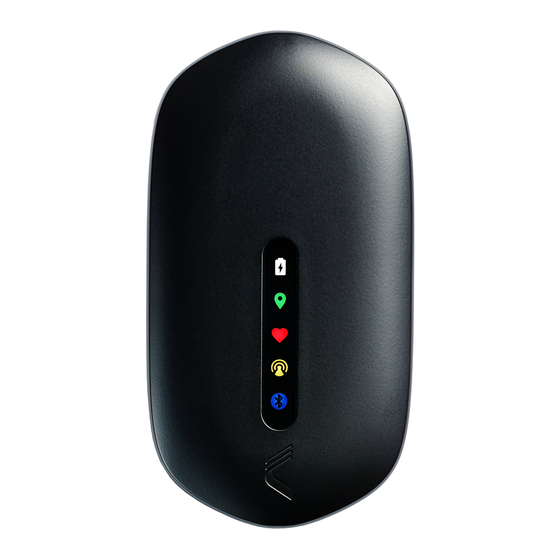

    GPS/GNSS and RTLS tracking. 2. VECTOR S7 DEVICE The Vector S7 is a wearable (combined) GNSS / LPS device with embedded microsensors that is used to measure the performance of elite athletes, in both real-time and post session. The Vector S7 device contains the following measurement sensors and components: ...
  • Page 3 4. Starting a live session: Connect the Vector Anchor via USB. In the software from the main screen, press the ‘quick start’ icon to start a live session. Vector S7 devices will show in ‘active players’ once they obtain GNSS lock and data transmission will begin. You can check if data is incoming by...

  • Page 4: System Login

    5. Download Session: Turn the devices off by pressing the button on the side of the device for 2 seconds and release. Place Vector S7 devices in Vector Dock press the dock ‘ignition button’ and connect USB to PC. Press settings then transfer. Press begin transfer. Once display says ‘finished’, data can be viewed from calendar.
  • Page 5  APAC (Australia Pacific and Asia): https://openfield.catapultsports.com  EMEA (Europe, Middle East and Africa): https://eu.catapultsports.com  US (North and South America): https://us.catapultsports.com 2) The OpenField Console Software can be downloaded from the OpenField Cloud. Login to the OpenField cloud with the account credentials and click the Downloads tab. Click the link under 'Secure Download' to download the latest version of the OpenField Console.

  • Page 6: Collecting Data

    4. COLLECTING DATA COLLECTING LIVE DATA (GPS/GNSS) A Live Activity is an Activity being analysed in real time whilst the Devices are being used; this is achieved via Data being collected through the Vector receiver (GNSS) or Anchors (LPS). Live Activities are extremely useful to be able to provide real time feedback on Athlete Performance.

  • Page 7: Downloading Data

    7. Start a New Live Period and PIP Athletes as necessary. See our Periods article for more information on how to create and stop Periods. 8. When the Activity is completed, stop all live Periods and press the pause button. 5.

  • Page 8: Software User Guide Links

    1. To reach the Data Transfer screen without an automatic download, click 'Start' from the Console Tile Screen, then click 'Settings' in the top left of the console screen. From the settings menu, select the 'Transfer' tab. 2. Connect the Devices to the PC, then in the 'Data Transfer' screen, ensure the correct number of devices are connected.

  • Page 9: Vector Anchor & Vector Dock

    OpenField console and mobile applications within a 50m range. This improves accessibility as a local Catapult Wi-Fi enables users to be more mobile around the pitch and to share live data more easily with coaches and players. Users have the option to add multiple anchors to the same system to improve live data capture capabilities.

  • Page 10: Support & Help

    The Vector Smart Docking Station consists of 24 individual device slots, an ‘ignition’ button, a USB port and a power supply port. The ignition button functionality gives the user the ability to turn on or off all connected devices with one button press. The USB port connects the devices to the PC via a USB cord to enable device configuration and downloading of the raw files on the devices.

  • Page 11: Regulatory Notices
