Interlink electronics SMK-Link VP6494 Quick Start Manual

N A N O
BLUETOOTH
CLASS 2 DONGLE

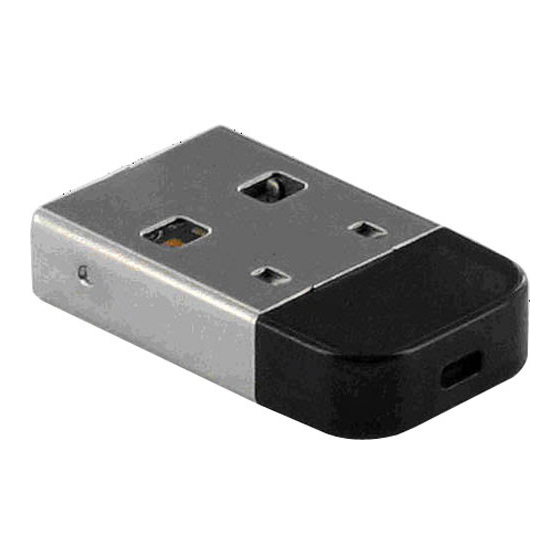

Interlink Nano Bluetooth
Class 2 Dongle
VP6494 by SMK-Link

System Requirements

Hardware: 1 available USB port
Operating System: Windows 2000, XP or Vista

Package Contents

Nano Bluetooth class 2 dongle
•
Bluetooth software CD-ROM
•
User's manual
•

Installing the Nano Bluetooth Dongle

Insert the included Bluetooth software
•
CD-ROM into your desktop or notebook
computer's CD drive.
Insert the nano Bluetooth dongle into
•
an available USB port on your desktop or
notebook computer.
Follow the on-screen instructions for
•
software installation.
Operating Tips & Trouble Shooting
Some Windows-OS already support
•
Bluetooth protocols. You may choose to
install and use the included Bluetooth
software or the Windows Bluetooth
software if it's already installed in your
computer.
After successfully installing the Bluetooth
•
software and adapter, you may connect
your Bluetooth-enabled computer to any
Bluetooth devices. During the pair-up
process (please consult your Bluetooth
device user's manual for instructions) it
may ask for a passkey. Use "0000" (4 zeros)
if your Bluetooth device does not provide
a passkey. If it fails to accept this passkey
please consult with your Bluetooth device
manufacturer for instructions.
The Bluetooth class 2 dongle supports up
•
to 7 Bluetooth devices with a maximum
transmission range of up to 33 feet/10
meters. Always use your Bluetooth
devices within this range to avoid loss of
transmission.
The Interlink Nano Bluetooth Class 2 Dongle
•
is designed to be plug-in and leave-in
with the computer without the need to
be removed when traveling. Nevertheless
precaution should be used when storing
your Bluetooth computer in its carrying
case:
When the computer carrying case is
»
too small/tight, remove the dongle,
keep it in a pocket inside the carrying
case, and plug it in to the USB port
again when the computer is out of
the carrying case. You don't need to
reinstall the Bluetooth software, nor do
you need to reconnect your Bluetooth
devices again as the connection
stays intact even when the dongle is
removed temporarily.
When carrying your Bluetooth
»
computer in a case, try to position the
side with Bluetooth dongle facing
up to avoid exerting pressure to the
dongle.

Product Specifications

Bluetooth v2.0 with EDR (Enhanced Data
•
Rate)
Class 2 supports up to 33 feet/10 meters
•
range
USB 2.0 physical interface
•
OS compatibility: Windows 2000, XP, Vista
•
Dimensions: 0.5" x 0.8" x 0.2"
•
Weight: 5.5g
•
BQB, FCC and CE certified
•

Warranty

SMK-LINK ELECTRONICS CORPORATION (SMK-LINK)
warrants to the original end-user purchaser of the
Product ("you") that the Product, excluding batteries,
will be free from defects in materials or workmanship
under normal use and service for one-year from date of
purchase. Dated invoice or sales receipt is necessary to
accompany the Product returned for warranty service
consideration. Any Product repaired or replaced under
the terms of the warranty is covered for the remainder
of the original warranty period or ninety (90) days from
