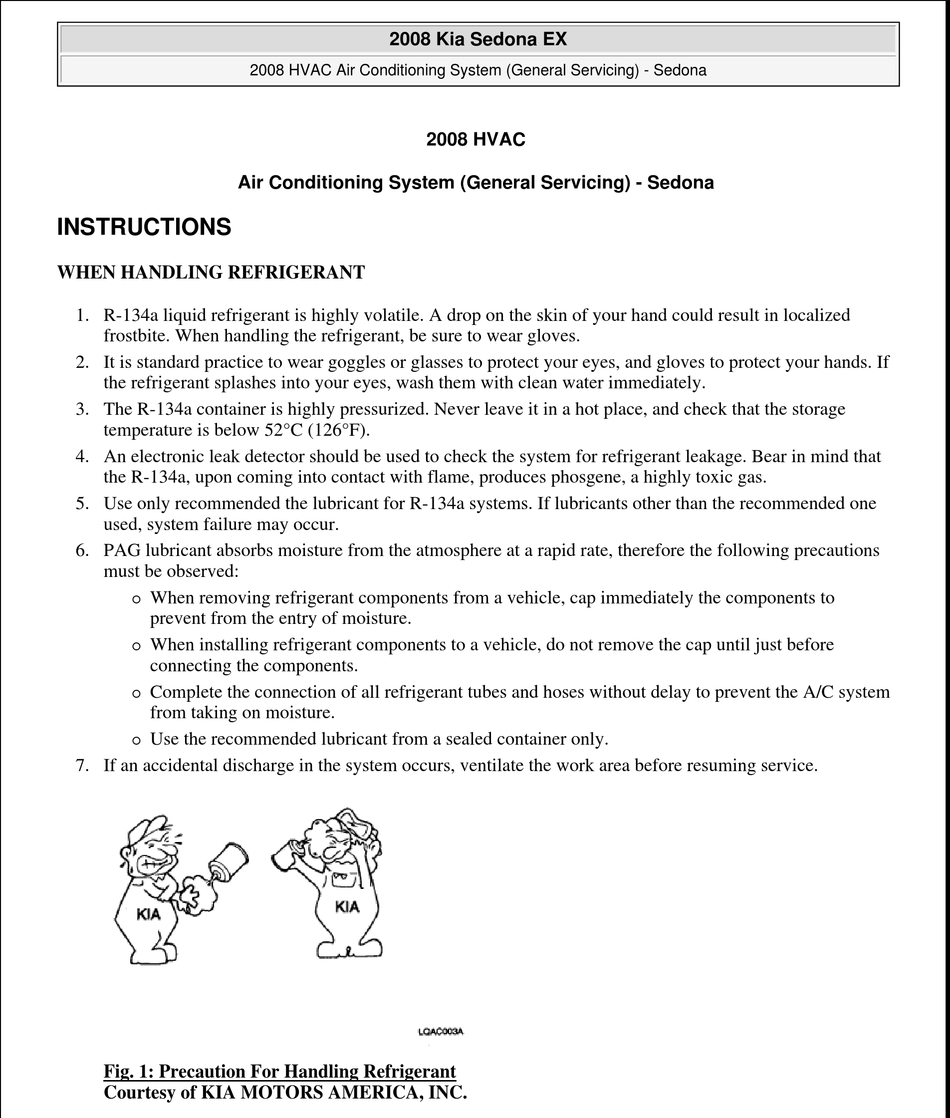

INSTRUCTIONS
WHEN HANDLING REFRIGERANT
1. R-134a liquid refrigerant is highly volatile. A drop on the skin of your hand could result in localized
frostbite. When handling the refrigerant, be sure to wear gloves.
2. It is standard practice to wear goggles or glasses to protect your eyes, and gloves to protect your hands. If
the refrigerant splashes into your eyes, wash them with clean water immediately.
3. The R-134a container is highly pressurized. Never leave it in a hot place, and check that the storage
temperature is below 52°C (126°F).
4. An electronic leak detector should be used to check the system for refrigerant leakage. Bear in mind that
the R-134a, upon coming into contact with flame, produces phosgene, a highly toxic gas.
5. Use only recommended the lubricant for R-134a systems. If lubricants other than the recommended one
used, system failure may occur.
6. PAG lubricant absorbs moisture from the atmosphere at a rapid rate, therefore the following precautions
must be observed:
When removing refrigerant components from a vehicle, cap immediately the components to
prevent from the entry of moisture.
When installing refrigerant components to a vehicle, do not remove the cap until just before
connecting the components.
Complete the connection of all refrigerant tubes and hoses without delay to prevent the A/C system
from taking on moisture.
Use the recommended lubricant from a sealed container only.
7. If an accidental discharge in the system occurs, ventilate the work area before resuming service.
Fig. 1: Precaution For Handling Refrigerant
Courtesy of KIA MOTORS AMERICA, INC.
2008 Kia Sedona EX
2008 Kia Sedona EX
2008 HVAC Air Conditioning System (General Servicing) - Sedona
2008 HVAC Air Conditioning System (General Servicing) - Sedona
Air Conditioning System (General Servicing) - Sedona
2008 HVAC

Advertisement

Table of Contents
loading

Related Manuals for Kia Sedona EX 2008

Summary of Contents for Kia Sedona EX 2008

  • Page 1 Use the recommended lubricant from a sealed container only.  7. If an accidental discharge in the system occurs, ventilate the work area before resuming service. Fig. 1: Precaution For Handling Refrigerant Courtesy of KIA MOTORS AMERICA, INC.
  • Page 2 4. Before connecting an open fitting, always install a new sealing ring. Coat the fitting and seal with refrigerant oil before making the connection. Fig. 2: Precaution For Replacing Parts On A/C System Courtesy of KIA MOTORS AMERICA, INC. WHEN INSTALLING CONNECTING PARTS FLANGE WITH GUIDE PIN Check the new O-ring for damage (use only the specified) and lubricate it using compressor oil.

  • Page 3: Tightening Torque

    2008 Kia Sedona EX 2008 HVAC Air Conditioning System (General Servicing) - Sedona TIGHTENING TORQUE Tightening torque [N.m (kg.m, lbf.ft)] General bolt, nut Size 5-6 (0.5-0.6, 3.6-4.3) 9-11 (0.9-1.1, 6.5-7.9) 12-14 (1.2-1.4, 8.7-10) 20-26 (2.0-2.6, 14-18) 25-28 (2.5-2.8, 18-20) 45-55 (4.5-5.5, 32-39)

  • Page 4: Refrigerant Recovery

    2008 Kia Sedona EX 2008 HVAC Air Conditioning System (General Servicing) - Sedona Fig. 4: Refrigeration Cycle Diagram Courtesy of KIA MOTORS AMERICA, INC. REFRIGERANT SYSTEM SERVICE BASICS REFRIGERANT RECOVERY Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE J2210 to remove...
  • Page 5 (B) and the low-pressure service port (C) as shown in Fig. 5 and Fig. 6 , following the equipment manufacturer's instructions. Fig. 5: Identifying High-Pressure Service Port And Low-Pressure Service Port Courtesy of KIA MOTORS AMERICA, INC. Fig. 6: Connecting Refrigerant Recovery To High-Pressure Service Port And Low-Pressure Service Port...

  • Page 6: System Evacuation

    2008 Kia Sedona EX 2008 HVAC Air Conditioning System (General Servicing) - Sedona Courtesy of KIA MOTORS AMERICA, INC. 2. Measure the amount of refrigerant oil removed from the A/C system after the recovery process is completed. Be sure to install the same amount of new refrigerant oil back into the A/C system before charging.

  • Page 7: System Charging

    Fig. 8: Connecting Refrigerant Recovery To High-Pressure Service Port And Low-Pressure Service Port Courtesy of KIA MOTORS AMERICA, INC. 2. Add the same amount of new refrigerant oil to system that was removed during recovery. Use only specified refrigerant oil. Charge the system with 18.0 ± 0.88 oz. (510 ± 25g) of R-134a refrigerant. Do not overcharge the system the compressor will be damaged.

  • Page 8: Component Location Index

    3. Check the compressor oil and add oil if required. 4. Charge the system and recheck for gas leaks. If no leaks are found, evacuate and charge the system again. Fig. 9: Identifying Leak Detector Courtesy of KIA MOTORS AMERICA, INC. COMPONENT LOCATION INDEX ENGINE ROOM...
  • Page 9 2008 Kia Sedona EX 2008 HVAC Air Conditioning System (General Servicing) - Sedona Fig. 10: Identifying Engine Room Component Locations Courtesy of KIA MOTORS AMERICA, INC. INTERIOR...

  • Page 10: Compressor Oil

    2008 Kia Sedona EX 2008 HVAC Air Conditioning System (General Servicing) - Sedona Fig. 11: Identifying Interior Component Locations Courtesy of KIA MOTORS AMERICA, INC. COMPRESSOR OIL INSPECTION OIL SPECIFICATION 1. The HFC-134a system requires synthetic (PAG) compressor oil whereas the R-12 system requires...

  • Page 11: Handling Of Oil

    2008 Kia Sedona EX 2008 HVAC Air Conditioning System (General Servicing) - Sedona 2. Compressor (PAG) oil varies according to compressor model. Be sure to use oil specified for the model of compressor. HANDLING OF OIL 1. The oil should be free from moisture, dust, metal powder, etc.
