PQ Labs iStick A300 Series Quick Start Manual

QUICK START GUIDE
A300 Series
Thank you for your purchase of iStick.
This product turns your TV into a smart TV.
You can play video games with it, get social with it.
It expands your tablet experience to a much larger screen.
WHAT'S IN YOUR BOX
Please check if all the items below are included in your package.
PQ Labs reserves the right to change or modify the shape or color of
accessories below at any time without notice.
iStick
Power plug type shall be variant
Quick Start Guide
Display Cable

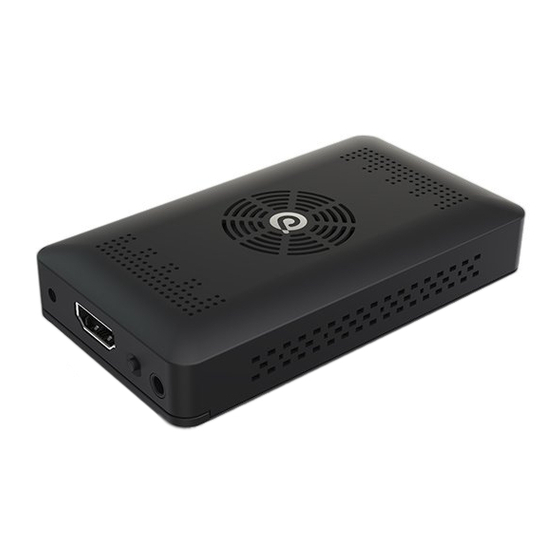

YOUR STICK
USB 1 USB 2
Switchable Plug
Power Adapter
*The above illustration is merely for reference, the exact ports are
by countries or regions.
subject to the A300 version you've purchased.

BEFORE YOU START

Adhesive Tape
You can hide
your iStick at
the backside of
the display as
the illustration
indicates.
USB Cable
Your Display
1
Power LED
Micro USB USB 3 Ethernet Port
TF Card Slot Recovery
Power Supply
Recommended Area

SWITCH PLUG ASSEMBLY

Pins
1.
2.
Holes
1. Place power adapter and switchable
plug as diagram indicated.
2. Flip and mount the switchable plug
to the power adapter, and fit the two
holes to the two pins.
3. Rotate switchable plug clockwise to
lock with power adapter.
Audio Jack

GLOSSARY

Display Device:
iStick supports most kinds of display devices, e.g.
your home HDTV, your desktop monitor and your
projector.
2
3.
Unlock:
Keep pressing the
OPEN button and
rotate anticlockwise
to unlock.
3
