- Page 1 OWNERS MANUAL GV230 60 YEARS OF AMERICAN INGENUITY KRENDL MACHINE COMPANY • 1201 SPENCERVILLE RD DELPHOS, OHIO 45833 • TELEPHONE 800-459-2069 • FAX 419-695-9301 E - MAIL: krendl@krendlmachine.com • WEB SITE: www.krendlmachine.com...
- Page 2 CONGRATULATIONS ON YOUR PURCHASE OF KRENDL EQUIPMENT MODEL GV230 OWNER'S MANUAL FOR ASSURED SAFETY AND CONFIDENCE, PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING AND OPERATING YOUR MACHINE. E-MAIL ADDRESS IS: krendl@krendlmachine.com WEB SITE IS: www.krendlmachine.com...
-
Page 3: Table Of Contents
able of ontents Preface General Safety Information Decals Returned Goods Procedure Service Specifications Warranty Basic Components Theory of Operation Operating Instructions Machine Hook-up ......8 Machine Start-up . -
Page 4: Preface
This manual has been prepared to help you obtain the maximum efficiency and service from your Krendl equipment. The machine is designed to move insulation with the utmost in dependable performance. Our primary objective is to build equipment which will provide complete satisfaction. - Page 5 If you have any questions about your intended use or the machines suitability, ask your supplier/distributor or consult the factory. Krendl Machine Company can not anticipate every circumstance that might involve a hazard. For that reason, warnings in the manual and warning tags and decals affixed to the unit, are not all-inclusive.
-
Page 6: Decals
Manufacturer information is provided here along in hearing loss. with machine model and serial number. Indicates that the Krendl Machine Company is in During operation if engine is off, key should be in compliance with EPA codes. off position to perserve battery. - Page 7 Notice: For assured safety and confidence, please read the manual before operating. If no manual is provided a free download is available at www.krendlmachine.com or by contacting Krendl Machine at 419-692-3060. El vac o debe utilizarse Aviso: Para una mejor seguridad y confianza, por favor lea el manual antes de operar.
-
Page 8: Returned Goods Procedure
IF MACHINE WAS NOT PURCHASED DIRECTLY FROM KRENDL MACHINE COMPANY, CONTACT YOUR SUPPLIER / DISTRIBUTOR. When returning products to Krendl for repair, first obtain a return goods authorization, at which time you will be given shipping instructions. The product must be shipped PREPAID:... -
Page 9: Warranty
WARRANTY Krendl Machine Company (Company) warrants to each original purchaser (Buyer) of its machines that such products will be free of manufacturing defects for a period of 2 years from the date of shipment to the Buyer. (This does not include accessories, pumps, blowers, wall scrubbers, etc.) No warranty is made with respect to: 1. -
Page 10: Basic Components

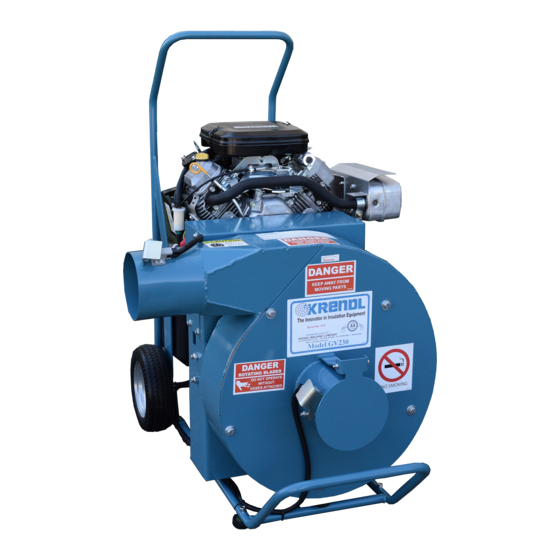

asic omponents This is a view of the basic components of your vacuum. It shows the location of each item and gives the function of each. Use this as a guide throughout the manual. (See Illust. A) A) STAND — Mobile frame unit that supports the motor, battery, and fan chamber. -
Page 11: Operating Instructions
perating nstructions Machine Hook-up This unit comes ready for connection to the VH550 (vacuum hopper), VH550-B (vacuum hopper with bin level) and Vacuum Defender. Note: A bin level indicator and blastgate are not used with the model VH550 (vacuum hopper). This unit provides a direct connection to 4"... -
Page 12: Machine Start-Up
(Illust. D) At all times keep your hands, clothing, foreign objects, etc. away from inlet and discharge of your gas vacuum. Never operate vacuum without hoses attached. Note: The end user should perform a risk assessment when first using this equipment. The end user has knowledge of conditions the equipment is used in. -
Page 13: Trouble Shooting
rouble hooting TROUBLE SHOOTING Note: Whenever vacuum chamber cover is off, make sure key is taken out of the ignition switch and red positive cable is disconnected from battery. Problem Corrective Action 1) Gas vacuum will not start. • Check engine oil level - (if low, unit will not start). •... -
Page 14: Maintenance
Periodic preventive maintenance will add years of life to your equipment. Reviewing the information in this manual will go a long way in reducing downtime and lost income. Krendl Machine Maintenance: See engine operation Daily manual for additional • Clear insulation away from engine and muffler to avoid fire, ensure proper... - Page 15 Weekly Cooling Fins • Remove air filter and blow with compressed air. • Clean out fan chamber and remove insulation build up on fan. • Inspect fan for wear and bent blades. Debris Note: Do not remove fan for general maintenance. Monthly •...
- Page 16 Kohler Maintenance Schedule Honda Maintenance Schedule Hour / Tachometer Reset Instructions: 1) Toggle to the appropriate Flash Alert menu to be cleared. 2) Press and hold button until "00000" appears. (approx. 3 sec) Note: Hour glass will flash repeatedly while holding button down during service reset. Rev.
-
Page 17: Fan Removal For Replacement
Fan Removal for Replacement: 1. Remove fan chamber cover. (See Illust. H) 2. Remove cap screws and insert them in tapped holes in bushing flange. 3. Tighten cap screws progressively in a clockwise rotation placing equal amounts of torque until bushing disengages. 4. -
Page 18: Belt Removal For Replacement
Bearings: Bearings are prelubricated, double-sealed, self aligning ball bearings. They have grease fittings and should be periodically lubricated at least once a month. The lubrication schedule should be carefully followed. These bearings are filled with Mobil Mobilith SHC460 grease at the factory (18W suffix). This grease is a lithium-thickened lubricant having mineral base oil. -
Page 19: Belt Installation For Replacement
Belt Installation for Replacement: 1. Insert belt thru opening in frame. (See Illust. N) 2. Install bearing shim and bearing on to drive shaft. Note: Elimi- nate any metal burrs from drive shaft and bearing. 3. Place belt on pulleys. Straight Edge 4. -
Page 20: Exploded Parts List
GV230 E xploded arts GAS VACUUM Item# Part# Description GV230-1-R2 Gas Vacuum Stand GV230-5 Motor, Gas Vacuum, 23HP GV230-5H Motor, Gas Vacuum, 22HP (Honda) GV230-5K Motor, Gas Vacuum, 23 1/2HP (Kohler) GV230-5-1 Muffler Kit GV230-5H-5 Muffler Kit (Honda) GV230-5K-1 Muffler Kit (Kohler) - Page 21 Item# Part# Description 11-3 FN007 N 1/4-20 Nut (2) GV230-18-R1 Battery Cable, Black, 13" 12-1 ST301-6 Ring Terminal (2) 12-2 ST301-3 Connector, Battery Terminal (2) GV230-19-R1 Battery Cable, Red, 27" GV100-11 Hour Meter GV100-8-R1 Vibration Isolater, Cart (2) GV180-17-R1 Wheel Axle 150310 Pin, Cotter, 1/8"...
