skyvoe NXG 4K-5550-L Owner's Manual

Weatherproof televisions

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

NXG|4K-5550-L / 4K-5570-L

MODEL:

Owner's Manual

Weatherproof Televisions

IMPORTANT:

Please read this owners manual before

starting or operating the equipment.

3840P

Table of Contents

Need help?

Do you have a question about the NXG 4K-5550-L and is the answer not in the manual?

Questions and answers

Summary of Contents for skyvoe NXG 4K-5550-L

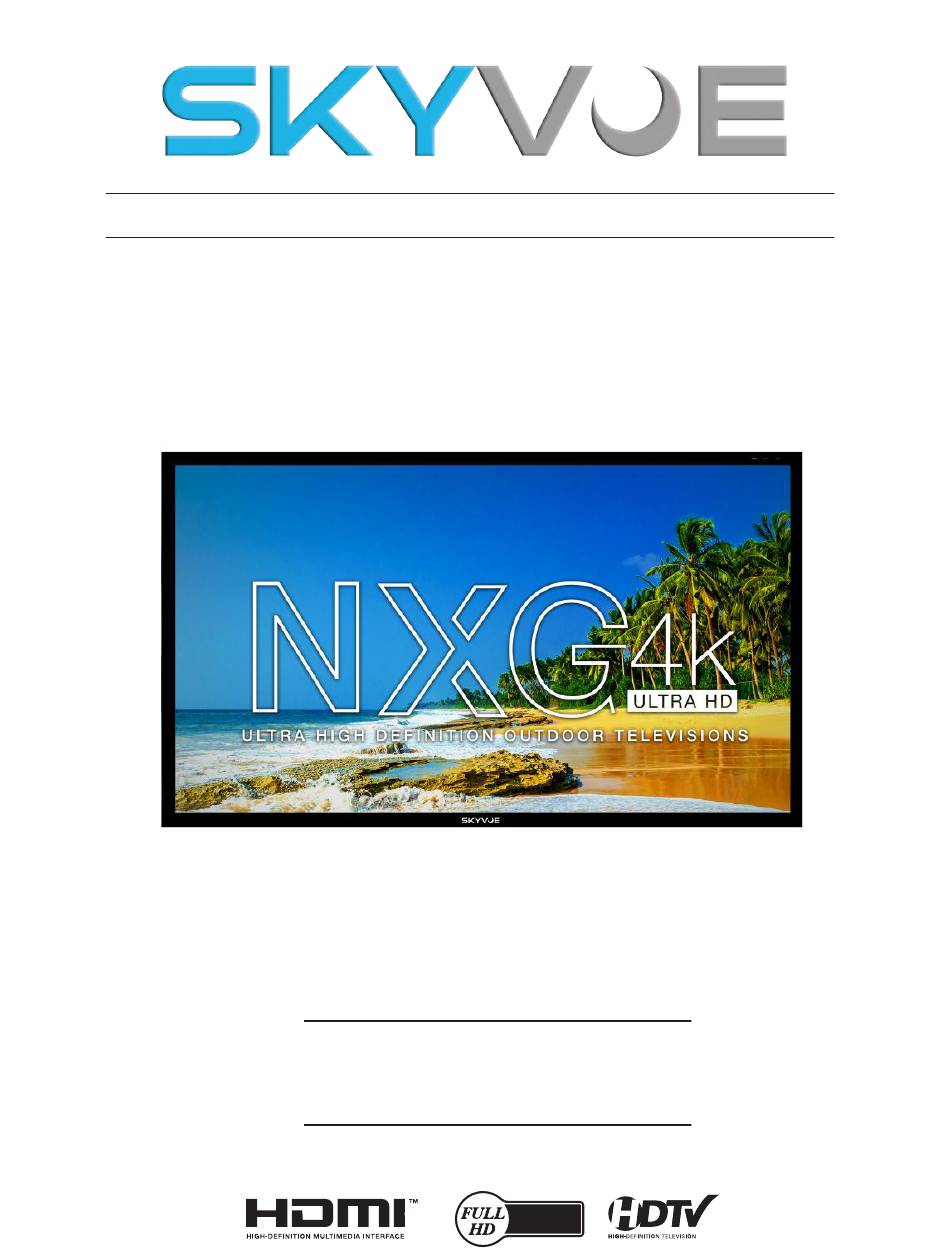

Page 1 NXG|4K-5550-L / 4K-5570-L MODEL: Owner’s Manual Weatherproof Televisions IMPORTANT: Please read this owners manual before starting or operating the equipment. 3840P...
Page 3 Dear SkyVue Customer, Congratulations on purchasing your new outdoor weather-proof television. We welcome you to our SkyVue family. To gain the full potential of your new SkyVue Outdoor Television, please read carefully the instructions within this document. There is a wealth of relevant information to get started and fully utilize all of the unique capabilities of your new SkyVue Outdoor Television.
Page 5: Important Information
SKY4230 & SKY4630 NXG|4k-5550-L / 4k-5570-L Model : OWNER’S MANUAL LED TELEVISION ENGLISH OPERATION MANUAL IMPORTANT: To aid reporting in case of loss or theft, please record the TV's model and serial numbers in the space provided. The numbers are located at the rear of the TV. IMPORTANT INFORMATION The lightning ﬂash with arrow-head symbol, within an equilateral triangle,...
Page 6 IMPORTANT INFORMATION CAUTION: This product satisﬁes FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections. DECLARATION OF CONFORMITY: SK Y4220 &...
Page 7: S Afety I Nformation
Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or ﬁre. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product.
Page 8 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS • Outdoor Antenna Grounding — If an outside antenna is EXAMPLE OF ANTENNA GROUNDING AS PER connected to the television equipment, be sure the antenna NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 system is grounded so as to provide some protection against ANTENNA voltage surges and built-up static charges.
Page 9 IMPORTANT SAFETY INSTRUCTIONS Caring for the front panel • Turn off the main power and unplug the AC cord from the GFI wall outlet before handling. • Gently wipe the surface of the front panel with a soft cloth (cotton, ﬂ annel, etc.). To protect the front panel, do not use a dirty cloth, liquid cleaners, or a chemical cloth (wet/dry sheet type cloth, etc.).
Page 10 tV S utdOOr afety nStructIOnS Ventilation: Adequate ventilation must be maintained to ensure reliable and continued operation and to protect the television from overheating. There must be at least 1.5” of space on all sides. Power cord protection: The power cord must be routed properly to prevent people from stepping on it, or objects from resting on it.
Page 11: Table Of Contents
Table of Contents ..........................1 elcOme ......................3 mpOrtant nfOrmatIOn ....................... 4 afety nfOrmatIOn tV I ......................... 10 nStallatIOn ..................11 anel omPonent ouRCe ....................12 anel onneCtionS ....................15 etaChable PeakeRbaR ....................24 anual OntrOlS ..................24 rOnt anel IghtS and enSOrS ......................
Page 12 Unpacking After unpacking the SkuVue Outdoor TV, please make sure that the following items are included in the carton and that they are in good condition. If items are damaged or missing, contact your dealer immediately. 5550 model may appear slightly different than 5570 Model NXG-5570-4k Front View Model NXG-5570-4k Back View OBX-4770-L...
Page 13: Tv I Nstallation
Rear Panel Component Source WARNING: Do not connect the power source before making connections. Internal Component Source The Internal Component Source allows you to easily connect to the Audio, Video, Digital Audio Out, HDMI, Audio Out, and RF connectors. 1. The Internal Component Source is inside the Component Cover located on the back of the unit. 2.
Page 14: Rear Panel Connections
Rear Panel Connections COAXIAL (AUDIO OUT) RS-232C - Long established standard connection (“C” is the current version) that describes the physical interface and protocol for relatively slow data communications between computers and related devices. Headphones Out - Use a 3.5 mm mini-jack for use with standard headphones. Digital Audio Out - This type of jack is used for the digital audio inputs and/or outputs on A/V components such as receivers, CD players, DVD players, and more.
Page 15 9a (Optional) 5V DC POWER CABLE / ANTENNA 3.5A MAX HDMI 4 - Use this port for Integrated Internet Streaming Devices Connects to devices that use HDMI cables such as Blu-ray or HD DVD/Blu-ray player or HD cable / satellite set-top box. This connection port receives pure digital audio and high definition signal through one single cable.
Page 16 Switching Inputs: Your SkyVue TV offers several options when connecting your Cable Name Cable End Images devices to the TV. The chart below will help you understand which input you select for each of the connections. HDMI or HDMI-DVI Connections Cable Name Speaker Bar Audio Coaxial RF...
Page 17: D Etachable S Peakerbar
TV Installation - Detachable Speaker Bar Detachable Speakerbar Installation - Top Mounting WARNING: Use at least two people when transporting the TV. Note: If you mount the TV to a ceiling or wall mount, it is best to install the Detachable Speaker Bar before the TV has been installed.
Page 19 Connecting to an Antenna Wall Antenna Connecting to Digital/Standard Cable without Cable Box or with Antenna 1. Make sure the power to the TV is turned off. 2. Connect the Coaxial RF cable from your antenna or digital cable to the ATSC/NTSC input off the back of the TV. 3.
Page 20 Connecting to a DVD/Blu-ray Player DVD/Blu-ray Connecting with HDMI Cable (Best Option) 1. Make sure the power of the TV and your DVD/Blu-ray player is turned off. 2. Connect a HDMI cable to the HDMI port of your DVD/Blu-ray player and the other end to the HDMI port off the back of your TV.
Page 21 Connecting to a Cable Box or Satellite Connecting with HDMI Cable Satellite (Best Option) 1. Make sure the power of the TV and your set- Cable Box top box is turned off. 2. Connect a HDMI cable to the HDMI output of your set-top box and the other end to the HDMI port off the back of your TV.
Page 22 Connecting to an External Amplifier or Amplified Speakers Connecting with Digital Coax (Best Option) 1. Make sure the power of the TV and your receiver is turned off. 2. Obtain a Coaxial SPDIF cable, connect it to your receiver’s Coaxial SPDIF digital input and the Digital Audio Out port on the back of the TV.
Page 23 Connecting with VGA Analog 1. Make sure the power of the TV and your PC is turned off. 2. Obtain a 15-pin D-Sub VGA cable, connect to the VGA output of your PC and the other end to the VGA port off the back of your TV. 3.
Page 24: Front Panel Lights And Sensors
Connecting the Power Cord WARNING: TV and AC receptacle must be installed at least 5 feet away from standing water, such as (but not limited to) a pool or spa. Please allow for additional clearance if TV is in use on a SkyVue Portable Cart.
Page 25: Remote Control Guide
Remote Control Guide POWER - Switch the TV power on or enter standby. TV - Push to control TV Learn - Push to teach remote features DVD - Push to control DVD player Satellite - Push to control the satellite receiver Cable - Push to control functions of the cable box Input - Push to change the viewing source on the television View Mode - Push to change format of the screen...
Page 26: On-Screen Display (Osd) Functions
On-Screen Display (OSD) Functions Via the Remote Control Adjusting the On Screen Display (OSD) from the Remote Control This button is the UP direction in the OSD. This button functions as the DOWN direction in the OSD. This button functions as the LEFT direction in the OSD. This button functions as the RIGHT direction in the OSD This button changes the channel in conjunction with the number pad and also functions as enter for selecting options in the OSD.
Page 27: On-Screen Display Menu
On-Screen Display Menu Your TV has been factory-set to plug-in and enjoy your programming. In the event you turn on the TV and get the message, “Please run Channel Auto Scan,” press your remote’s Menu button, press the Channel function and press Auto Scan.
Page 28: Time Menu
Time Menu This menu manages Time functions including: Sleep Timer Time Zone DST on/off Time Format 12/24 hr. Auto Sync Clock setting Wake-Up time setting Setup Menu This menu manages Setup functions including: Menu Language Blue Screen on/off Transparency (menu) HDMI Mode Closed Caption Ambient Light Sensor...
Page 29: Adjusting On-Screen Displays - Channel Menu
Adjusting On-Screen Displays – Channel Menu 1. Press the buttons on the remote or CH+/CH- on the TV to move the cursor to the item to be selected. 2. Press the buttons on the remote or VOL+/VOL- on the TV to make the desired adjustments. 3.
Page 30 Adjusting On-Screen Displays – Channel Menu (cont.) Show/Hide Press the buttons to highlight the Show/Hide adjustment. Press button to enter the Show/Hide submenu seen at left. This will allow you to delete specific channels from the channels that will appear when you use the CH+/CH- buttons on the remote or on the To delete a channel from your CH+/CH- channel scan, press the buttons to highlight the channel.
Page 31: Adjusting On-Screen Displays - Picture Menu
Adjusting On-Screen Displays – Picture Menu 1. Press buttons on the remote or CH+/CH- (on the TV) to move the cursor to the item to be selected. 2. Press buttons on the remote or VOL+/VOL- (on the TV) to make the desired adjustments. 3.
Page 32: Adjusting On-Screen Displays - Audio Menu
Adjusting On-Screen Displays – Picture Menu (cont.) Color Temperature Press the buttons to highlight Color Temp. adjustment, then use to select Normal, Warm or Cool color temperature. Zoom Mode Press the buttons to highlight Zoom Mode adjustment, then use to select picture zoom mode.
Page 33 Equalizer Press the buttons to highlight Equalizer, then to select Standard, Music, Movie, Sports or Personal sound mode. 120 Hz Press the buttons to highlight 120 Hz, then to adjust the 120 Hz (bass) audio band. This adjustment is available only when Personal sound mode is selected.
Page 34: Adjusting On-Screen Displays - Time Menu
Adjusting On-Screen Displays – Audio Menu (cont.) Audio Language Press the buttons to highlight the Audio Language adjustment, then use to select English, Spanish or French. This function operates only with multiple-language TV broadcasts, and not with any of the video inputs. Digital Output Press the buttons to highlight the Digital...
Page 35 Sleep Timer Press the buttons to highlight Sleep Timer, then use to select Off or 5, 10, 15, 30, 60, 90, 120, 180 or 240 minutes. The TV will turn off automatically after the selected time has elapsed. Time Zone Press the buttons to highlight the Time Zone adjustment, then use...
Page 36: Adjusting On-Screen Displays - Setup Menu
Adjusting On-Screen Displays – Setup Menu 1. Press buttons on the remote or CH+/CH- on the TV) to move the cursor to the item to be selected. 2. Press buttons on the remote or VOL+/VOL- on the TV to make the desired adjustments. 3.
Page 37 Adjusting On-Screen Displays – Setup Menu (cont.) Advanced Selection Services When the CC Mode submenu is on-screen, press buttons to highlight Advanced Selection Services. Use to select Advanced Selec- tion Services Off or 1-6. Availability of these services depends on the TV program. Options When the CC Mode submenu is on-screen, press buttons to highlight Options.
Page 38: Adjusting On-Screen Displays - Lock Menu
Software Update (USB) This function is used to update the software on your TV. Consult SkyVue Outdoor TV for more information. Blue Screen Press the buttons to highlight the Blue Screen adjustment, then use to activate or deactivate the blue screen that appears when no signal is available at the selected input.
Page 39 Adjusting On-Screen Displays – Lock Menu (cont.) System Lock Press the buttons to highlight System Lock, then use to enter the Password menu shown at lower left. This menu allows you to set a pass- word that will be required to access inputs that are locked out using the Input Block feature described below.
Page 40 Adjusting On-Screen Displays – Lock Menu (cont.) Using System Lock Once you are in System Lock mode, press the buttons to highlight the different functions in the menu, then use to activate those features. Input Block To use the Input Block function, you must enter the Input Block submenu shown at left.
Page 41: Sing The Usb I Nput
Using the USB Input Using the USB input on the rear panel of the TV, you can access material stored on a USB stick. The material can be MP3 or WAV music files, or JPEG or BMP pictures. The TV also has the ability to display the first few sentences of plain text (.TXT) documents, but because it shows only a few lines, this function is of very limited use.
Page 42 Viewing Images from the USB Stick to highlight the image you want to view, then press to view that image. The image will appear along with a text screen that shows data about the image. Note that the image will not fill the screen. Listening to Music from the USB Stick to highlight the song you want to listen to, then press to play the song.
Page 43 Trouble Solutions Check the following: Power cord is connected correctly. Power is turned on. The video cable is connected correctly. You have selected the proper input signal source. No picture If you have done the above, without resolve, unplug TV for at least 1 hour to perform Hard Reset.
Page 44 HDCP video says no Reboot your HDCP video device by turning it off, and unplugging the power cord. Wait up HDCP support to 8 minutes to plug the power back in to see if that works. Make sure you have a 3.5 mm mini-jack cable connected from your HDCP video device HDCP video has sound output to the TV’s VGA stereo input.
Page 45: Care Of Skyvue Outdoor Tv
Care of SkyVue Outdoor TV Caring for the LED Panel: With your TV turned off, gently wipe the surface of the display panel with a damp (with water) microfiber, cotton or flannel cloth. (Do not use tissues, rags, sponges or paper towels because they may damage the screen and leave lint pieces behind).
Page 46: Specifications
Specifications SkyVue Model NXG 4k-5550-L 8 77. 475 . 9 8 8 3 Among SkyVue Outdoor TVs new lineup of Smart TVs is the NXG 4k-5550. This 55” class model provides customers with tremendous value when compared to other mid-sized screen televisions. SkyVue’s sunlight readable full HD 4k LED technology delivers the most natural and vibrant picture quality available.
Page 47 Specifications SkyVue Model NXG 4k-5570-L 8 77. 475 . 9 8 8 3 Among SkyVue Outdoor TVs new lineup of Smart TVs is the NXG 4k-5570. This 55” class model provides customers with tremendous value when compared to other mid-sized screen televisions. SkyVue’s sunlight readable full HD 4k LED technology delivers the most natural and vibrant picture quality available.
Page 48: Tv Care & Policy Information
TV Care & Policy Information Extreme Climate Warning If temperatures below -24º F are expected, we recommend that you bring your SkyVue Outdoor TV inside to prevent damage to the LED screen. SkyVue Outdoor TV Pixel Quality Policy (Applicable to LED TVs sold within USA and Canada only.) SkyVue Outdoor TV LED screens are manufactured with rigorous standards to maintain optimal viewing.
Page 49: Rs232 Control Codes
RS232 Control Codes Baud Rate: 38400/ Bits: 8/ Parity: None/Stop Bit: 1 Command Code Sequence: A0 F0 55 FF <IR Code> <Check Sum> The time of the command sequence must be < 500 ms. The interval time of two continuous command sequences must be > 500 ms. Mute: A0 F0 55 FF 14 EB AV Input...
