Eagle Eye How-to Guide:
Crimping Four Way TE Connector for the ELM-Series

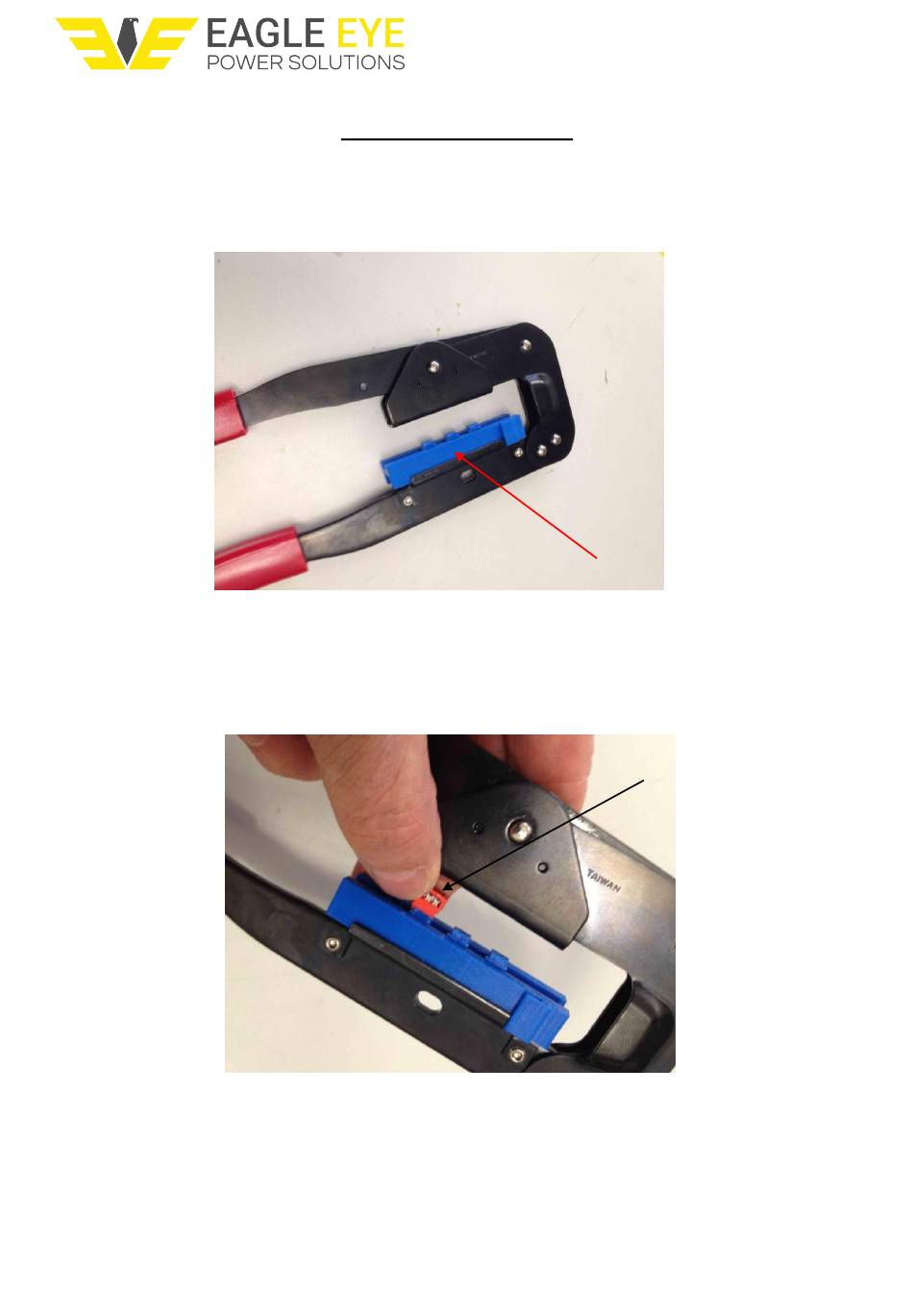

The crimping tool consists of parallel opening jaws and a replaceable connector insert (Fig 1).
Replaceable insert
Fig. 1
First, place the four way connector into one of the three locations on the insert. Care must
be taken not to press down the cable retaining bar on the back of the connector (Fig 2).
Cable retaining bar
Fig. 2
