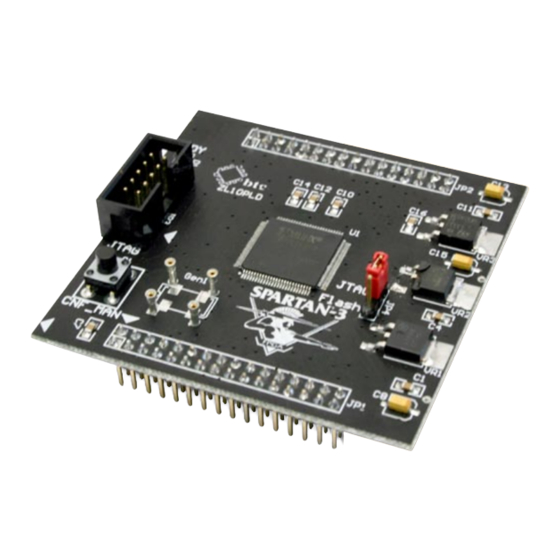

ZL10PLD

dipPLD module

with XC3S200 device

The dipPLD modules are designed to helps

using of Spartan 3 FPGA devices by people

that can't use automatic assembly of QFP

packages.

ver. 1.0

Table of Contents

Need help?

Do you have a question about the KAMAMI ZL10PLD and is the answer not in the manual?

Questions and answers

Summary of Contents for BTC KAMAMI ZL10PLD

Page 1 ZL10PLD dipPLD module with XC3S200 device The dipPLD modules are designed to helps using of Spartan 3 FPGA devices by people that can’t use automatic assembly of QFP packages. ver. 1.0...
Page 2 Disclaimer BTC Korporacja makes no warranty for the use of its products and assumes no responsibility for any errors which may appear in this document nor does it make a commitment to update the information contained herein. BTC Korporacja products are not intended for use in medical, life saving or life sustaining applications.
Page 3 ZL10PLD – dipPLD module with XC3S200 device Module configuration Electrical schematic of ZL10PLD is shown in the below picture. http://www.kamami.com/...
Page 4 ZL10PLD – dipPLD module with XC3S200 device Arrangement of the most important module Module pins I/O line, marked by „p36” symbol, is an input of clock signal (turned in the stage of quartz generator which is installed on ZL10PLD ). It can be used only as an output to the cooperation with devices which are powered by 3.3V voltage.
Page 5 ZL10PLD – dipPLD module with XC3S200 device JTAG connector ZL10PLD module is equipped with IDC connector, for connecting ISP programmer (for example: ZL11PRG, ZL11PRG-M, ZL4PRG). Placement of this connector on the board and signals arrangement are shown in the below pictures.
Page 6 ZL10PLD – dipPLD module with XC3S200 device FPGA manual reconfiguration switch With the use of placed on the board button (its placement is shown in the below picture) the user in any moment can restore FPGA configuration which is saved in the memory. The correct FPGA configuration is indicated by RDY LED.
Page 7 ZL10PLD – dipPLD module with XC3S200 device ZL9PLD base board peripherals connection The ZL10PLD module is adapted to cooperation with ZL9PLD base board. On picture below is shown way of connection to module peripherals from ZL9PLD base board. http://www.kamami.com/...
