VIP 3000 POWER JACK OWNER'S INSTRUCTIONS
P/N 30826(WHITE) OR P/N 31696, 31837 (BLACK )

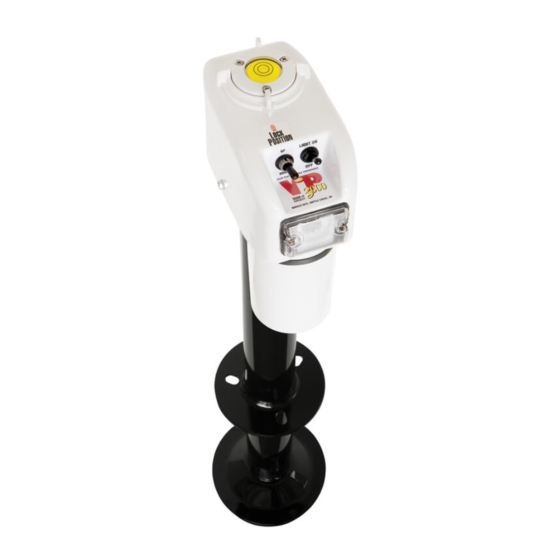

H&H Engineering VIP 3,000 Power Jack is designed to lift up to 3,000 pounds a full 18". It's design
also includes a night light, a build in leveling device, attached foot plate, and an emergency crank handle.
An important part of owning and using VIP Jack is being sure it is properly installed and serviced.
GENERAL SAFETY:
Read and understand the Jack installation instructions. Always block trailer wheel when using
the jack. Remove jewelry (watches, rings, etc.)
BEFORE INSTALLATION:
Raise your travel trailer's front end and place blocks or stabalizing jacks under the front "A" frame.
Lower the trailer until it rests securely on stabilizing jacks or blocks. Retract present jack and remove.

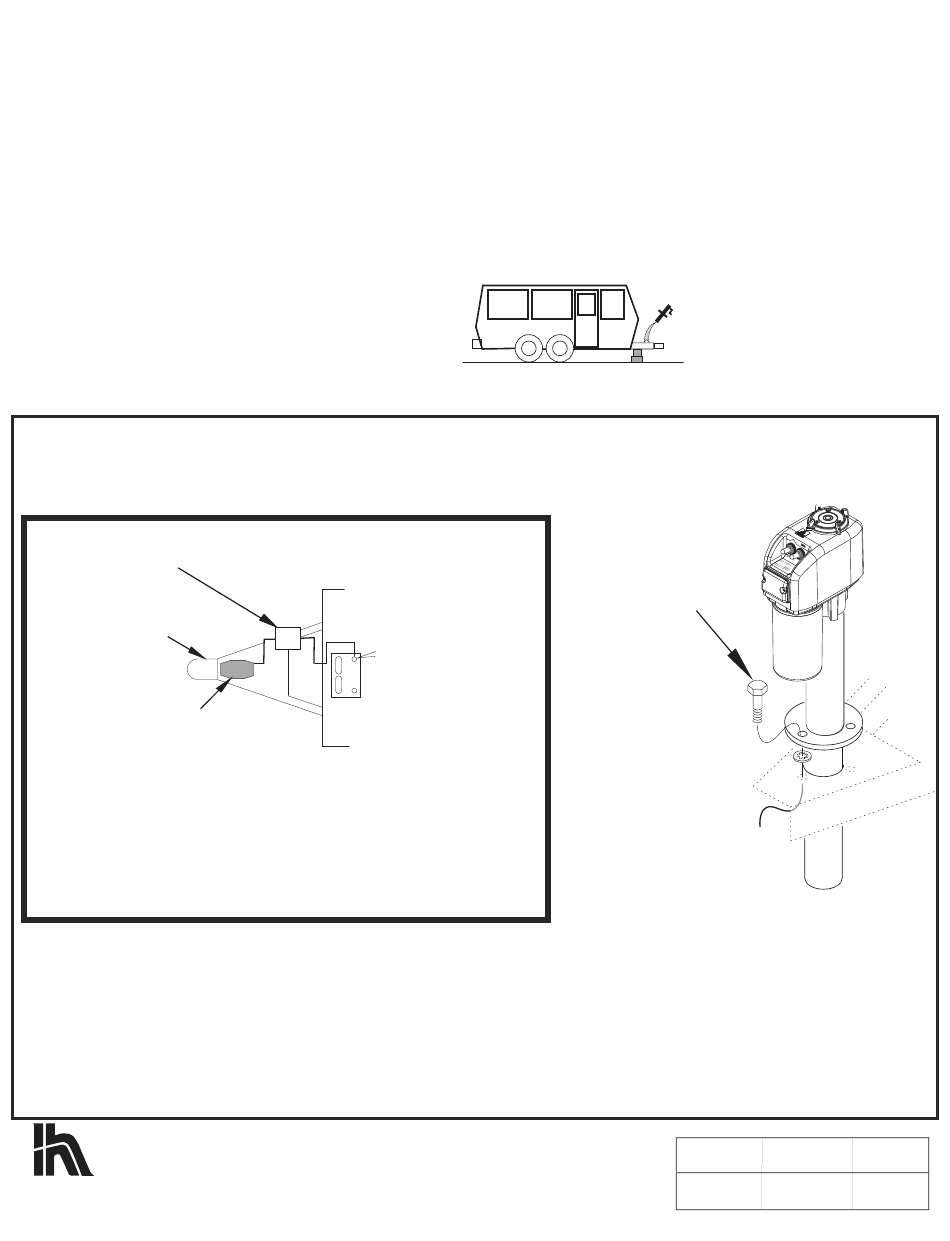

INSTALLATION:
30 amp slow blow fuse
"A" frame coupler
VIP Jack
Connect the lead-wire directly to the positive (+) lead
of the travel trailer's battery using a twelve (12) gage wire.
Be sure the connection is a good one.
THE 30 AMP SLO-BLO FUSE MUST BE INSTALLED
AS SHOWN.
If it is necessary to change the position of the powerhead relative to the post and flange (in order to
provide clearance between powerhead and LP gas bottle or LP gas cover, or more clearance between
the lift gate and the powerhead) loosen set screws and rotate head without lifting off coupling. Retighten
set screws when head is in desired position.
H&H ENGINEERING
DIVISION OF BARKER MFG. CO.
730 E. MICHIGAN AVE. / P.O. BOX 460
BATTLE CREEK MI 49016 / (269) 965-2371
Install Jack in hole and secure with 3 bolts & 3 internal tooth lockwashers
(bolt holes are threaded)
Attach the foot plate to VIP Jack with .50-20 bolt and .50" lockwasher
30
AMP
(+)
travel trailer
battery
IMPORTANT NOTICE:
©
Copyright H&H Engineering 1989
Remove present
jack
Supplied by customer
IMPORTANT
To insure a good
electrical ground an
internal tooth lock-
washer must be in
place for this bolt.
Make sure powdercoat
or paint is removed from
"A" frame coupler under
washer and that tagged
hole is used.
PAGE:
1 OF 4
REV. LETTER:
E
DATE:
FORM #:
30842
21 APR 08
ECN#:
APPROVED:
13855
Advertisement
Table of Contents
Summary of Contents for H&H VIP 3000
- Page 1 VIP 3000 POWER JACK OWNER'S INSTRUCTIONS P/N 30826(WHITE) OR P/N 31696, 31837 (BLACK ) H&H Engineering VIP 3,000 Power Jack is designed to lift up to 3,000 pounds a full 18". It's design also includes a night light, a build in leveling device, attached foot plate, and an emergency crank handle.
- Page 2 VIP 3000 POWER JACK OWNER'S INSTRUCTIONS P/N 30826(WHITE) OR P/N 31696, 31837 (BLACK ) OPERATION (ELECTRIC) The "night-light" is REMEMBER TO KEEP HANDS AND FEET FROM controlled by this UNDER THE FOOT PLATE WHEN USING POWER JACK. toggle switch When VIP JACK reaches the end of it's travel (either raising or lowering) the internal clutch activates Dolly wheels are not recommended.
- Page 3 VIP 3000 POWER JACK OWNER'S INSTRUCTIONS P/N 30826(WHITE) OR P/N 31696, 31837 (BLACK ) STRAP ATTACHMENT: MAINTENANCE: 1. Press strap (1) onto the stud (2) at the bottom of the cap. Once a year, the powerhead should be removed and a liberal amount of grease (preferably a grease with high 2.
- Page 4 VIP 3000 POWER JACK OWNER'S INSTRUCTIONS P/N 30826(WHITE) OR P/N 31696, 31837 (BLACK ) PARTS: ITEM PART# REQ'D DESCRIPTION 613-0000 #10-32 ACORN NUT 27344 MOTOR SLEEVE (WHITE) 27276 MOTOR SLEEVE (BLACK) 30847 BASE FINISHED(WHITE) 30717 BASE FINISHED (BLACK) 606-0010 #10-16 X .75TEK SCREW (ZINC PLATED) 606-0008 #10-16 X .75TEK SCREW (BLACK HEAD)
