VGA to HDMI converter User Manual
Thank you for purchasing this device.
VGA to HDMI converter box converts PC VGA and audio to HDMI, allowing
connection of PC to 1080p HDTV. It supports multiple resolution up to
1920x1080@60HZ. It is without scaler,while it supports th most popular resolutions
to ensure high compatibility with wide brands of PCs and HDTVs. It provides cheaper
solution of connecting PC to HDTV.
IMPORTANT SATETY INSTRUCTIONS
1,To reduce the risk of fire or electric shock and damage,do not expose this unit to
rain,moisture and liquid. Do not put heavy stuff on it. Do not put heavy stuff on it.
2, Make sure good ventilation openings to avoid product overheating damage and
fire. Do not install I inside of cabinet or other confined space.
3, It is designed to convert VGA to HDMI. Do not use it for other purpose.
4, Keep this user manual properly for future reference.

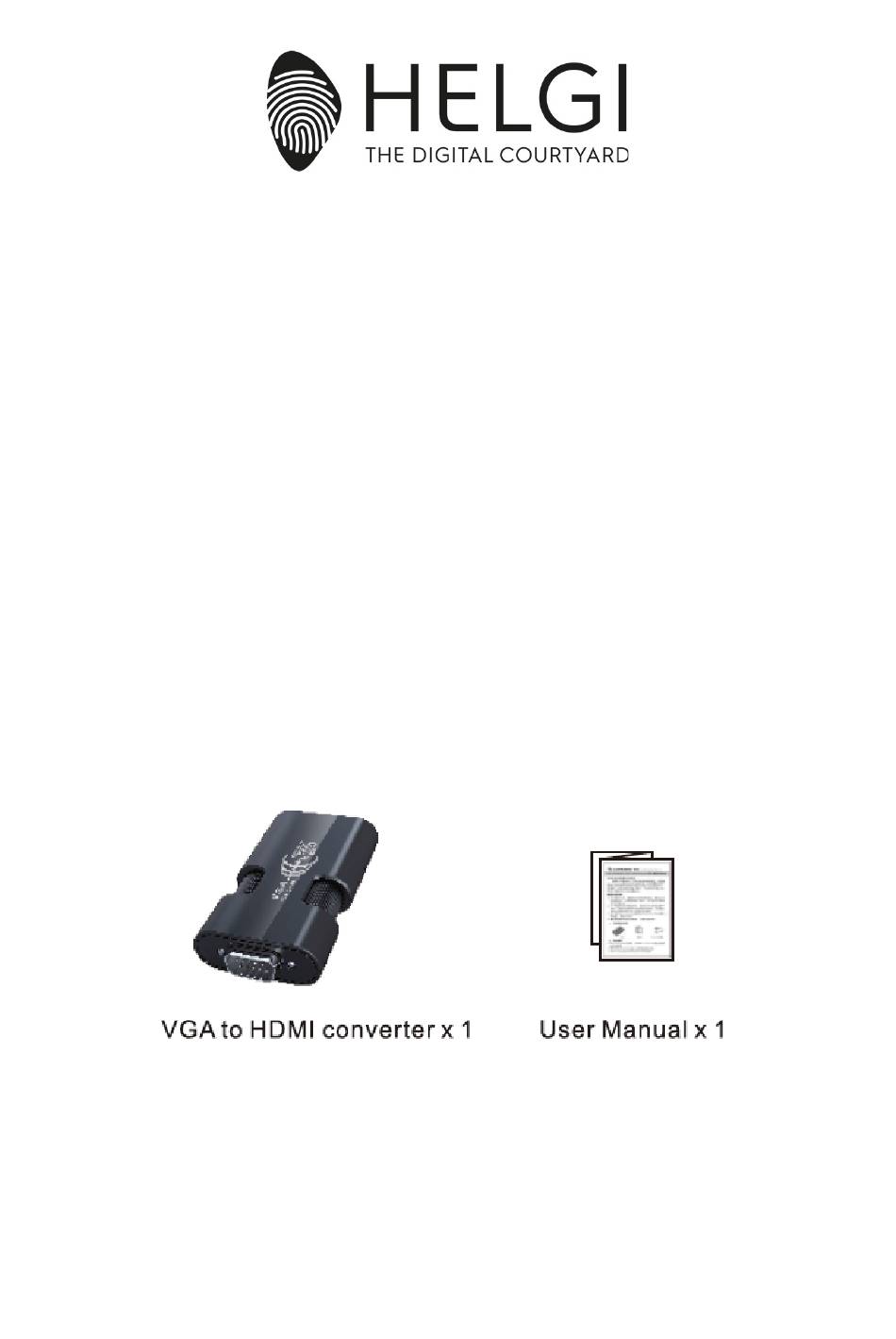

I.PACKAGE CONTENTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIG0350MINI and is the answer not in the manual?

Questions and answers

Summary of Contents for HELGI LIG0350MINI

  • Page 1 VGA to HDMI converter User Manual Thank you for purchasing this device. VGA to HDMI converter box converts PC VGA and audio to HDMI, allowing connection of PC to 1080p HDTV. It supports multiple resolution up to 1920x1080@60HZ. It is without scaler,while it supports th most popular resolutions to ensure high compatibility with wide brands of PCs and HDTVs.
  • Page 2 II. INSTALLATION REQUIREMENTS 1,VGA signal input 2,3.5mm audio signal input 3,HDMI signal output 4,DC 5V input, this converter can be powered from VGA port,when failure, it can be powered from PC’s USB port by USB to micro USB cable. III. PORTS ①...
  • Page 3 V. FEATURES 1. Input: VGA x 1, 3.5mm audio x1. 2. Output : HDMI x1 3. Input VGA resoluton supported: 640 x 480@60HZ, 800 x 600@60HZ, 1024 x 768@60HZ, 1280 x 720@60HZ, 1280 x 768@60HZ, 1360 x 768@60HZ, 1440 x 900@60HZ, 1600 x 1200@60HZ, 1680 x 1050@60HZ, 1920 x 1080@60HZ, 4.
  • Page 4 VII. SPECIFICATIONS Power supply Power from VGA port,when failure,please use a USB to micro USB cable to power from PC’s USB Input VGA resolution From 640x480@60HZ up to 1920x1080@60HZ supported Audio input signal 3.5mm audio DDC signal 5Vp-p(TTL) TMDS signal 0.5-1.0Vp-p Output HDMI From 640x480@60HZ up to 1920x1080@60HZ...
