Summary of Contents for CPS ROBO-KIT

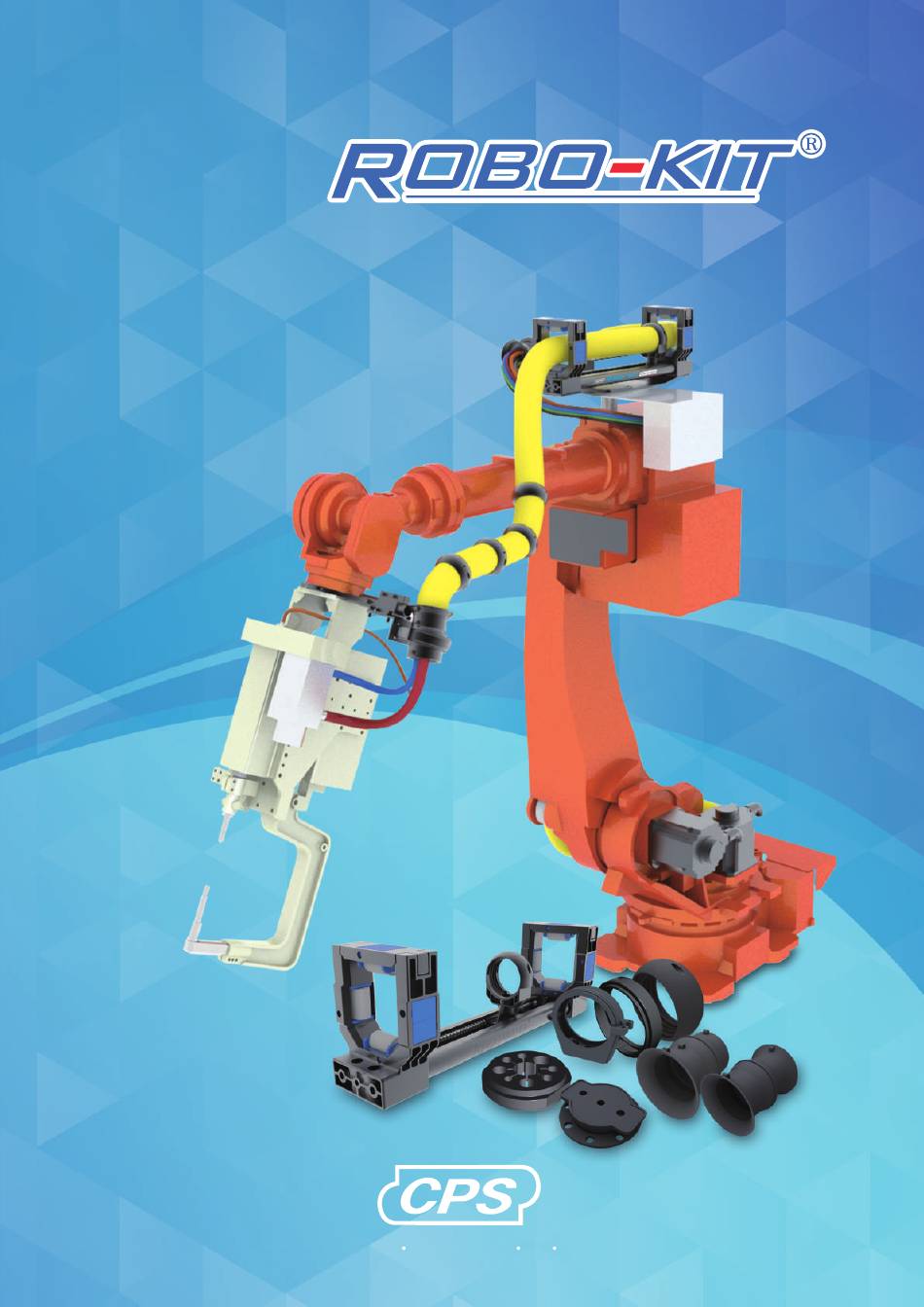

- Page 1 CABLE PROTECTION SYSTEMS FOR ROBOT! www cpsystem co kr...

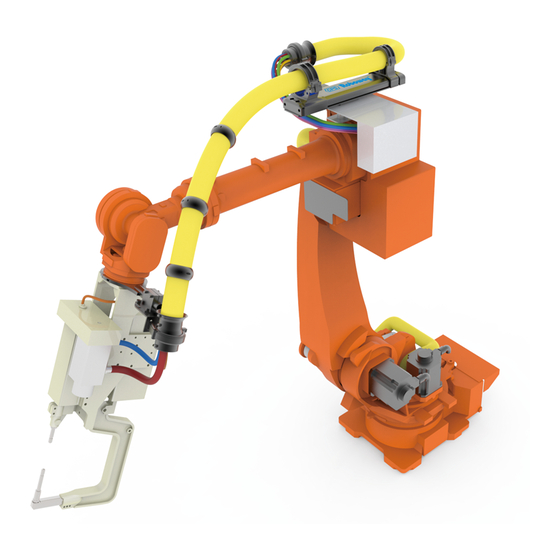

- Page 2 For the first time in Korea, CPS developed new cable protection system, “ ROBO-KIT ” which is used in the robotic application and prevents the cables from twisting, damaging or breaking. In addition, as Robo-kit leads the movement of cables, it minimizes the friction and interference at the same time.
- Page 3 This Robo-kit RDD System is so relaxed shirink itself while protecting the cable from the relative movement of the robot in any complex posture of the robot can be applied effectively.
- Page 4 RDD-36B 400L : 10EA ORDER Q’ty (set) Length Tube Color Y : Yellow B : Black U : U.V-Resistant(Black Only) Size 22, 28, 36, 48, 56, 70 ROBO KIT RDD1/RDD2/RDD2E RKC/RKD/RKTP/RKSC/RKR/VCG/RKS ROBO-KIT...
- Page 5 RKD decentralizes ※Image : RDD2 the mechanical stress on the tube. This Robo-kit RDD system is so relaxed shirink itself while protecting the cable from the relative movement VCG / Cable End Finishing of the robot in any complex posture of the robot can be applied effectively.
- Page 6 ※ RDD2E : RDD.C is not assembled. CPSFLEX Type Bolt hole width Width Bolt hole width Length Height Stroke RDD1-36 L+175 L+200 RDD1-48 or less RDD1-56 L+277 L+270 RDD1-70 RDD2(E)-36 L+190 L+215 RDD2(E)-48 or less RDD2(E)-56 L+254 L+290 RDD2(E)-70 (Dimensions : mm) ROBO-KIT...
- Page 7 CABLE PROTECTION SYSTEMS FOR ROBOT! Conduit Outside ROBO-KIT Product Width Height Length Measurement Size Diameter of ROBO-KIT 30.0 48.0 48.0 30.0 54.0 54.0 30.0 62.0 62.0 RKTP 30.0 77.0 77.0 40.0 91.5 91.5 45.0 105.0 105.0 28.5 47.5 52.0 43.5 28.5...
- Page 8 RDD-56, 70 : M4X25, M4 Nylon nut Completed RDD system. RDD2E Assembly Assemble the cover of enclose type to assembled RDD2. Completed RDD2E system. ※RDD2E is now in the process of being developed, so the way of assembly may be changed afterwards. ROBO-KIT...
- Page 9 CABLE PROTECTION SYSTEMS FOR ROBOT! RKTP Assembly RKTP is assembled by connecting the two Be sure to line up holes neatly for bolt half-circled guards. insertion. Tighten the bolt after inserting nut as All nuts and bolts are supplied with RKTP. shown with allen wrench.
- Page 10 RKC + Assembly Connect RKC directly to robot body or support, and fasten with bolts. Open the clip. After connecting RKD or RKS, insert then Fasten the clip with bolts to ensure into the clip as shown. optimum protection. 10 ROBO-KIT...
- Page 11 CABLE PROTECTION SYSTEMS FOR ROBOT! VCG + RKSC + RKS + Assembly Insert cables as shown. Assemble the VCG with RKSC. Assemble RKS completely with bolts Assemble RKS with RKSC. and nuts. Use the RKC to secure the RKS. Complete. www.cpsy stem .co.kr...
- Page 12 Connect the pieces as shown. The size of RKR mold changes to correspond with size of robot. In case of combination with RKC, connect the existing part of RKC. In case of combination with RKC, connect the existing part of RKC. Complete. 12 ROBO-KIT...
- Page 13 CABLE PROTECTION SYSTEMS FOR ROBOT! ▲ RKTP ▲ Robo-kit is designed to prevent the disconnection of cables and minimize interference during operation. ▲ RKD+RKC ▲ RKC+RKS www.cpsy stem .co.kr...
- Page 14 Application Image of ROBO-KIT ▲ Spot Robot ▲ Spot Robot ▲ Handling Robot ▲ Spot Robot ▲ Spot Robot ▲ Spot Robot ▲ Spot Robot 14 ROBO-KIT...
- Page 15 KOREA MAP CPSYSTEMCo.,Ltd. Address : #27-37 Jeonggwansanggok 1-gil, Jeonggwan-myeon, Gijang-gun, Busan, Korea ❸ ❷ ❹ YoungJin Industry Daesung Metal Samwoo (Maehak 511-2) Maehak-ri ❶ Dae-oh Logistics Golf Practice Range Location and Map Info Busan to JeongGwan : ※navigation – Maehakri 511-2 (SAMWOO INTECH) Wondong IC →...
- Page 16 We are CPS, Realize the customer impression go over the customer satisfaction! (46018) #27-37 Jeonggwansanggok 1-gil, Jeonggwan-myeon, Gijang-gun, Busan, Korea Tel. 82-51-526-4393 Fax. 82-51-524-4358 E mail. cpsystem@hanmail.net...
