Summary of Contents for Ergofix ELECTRIC HEIGHT ADJUSTABLE TABLE

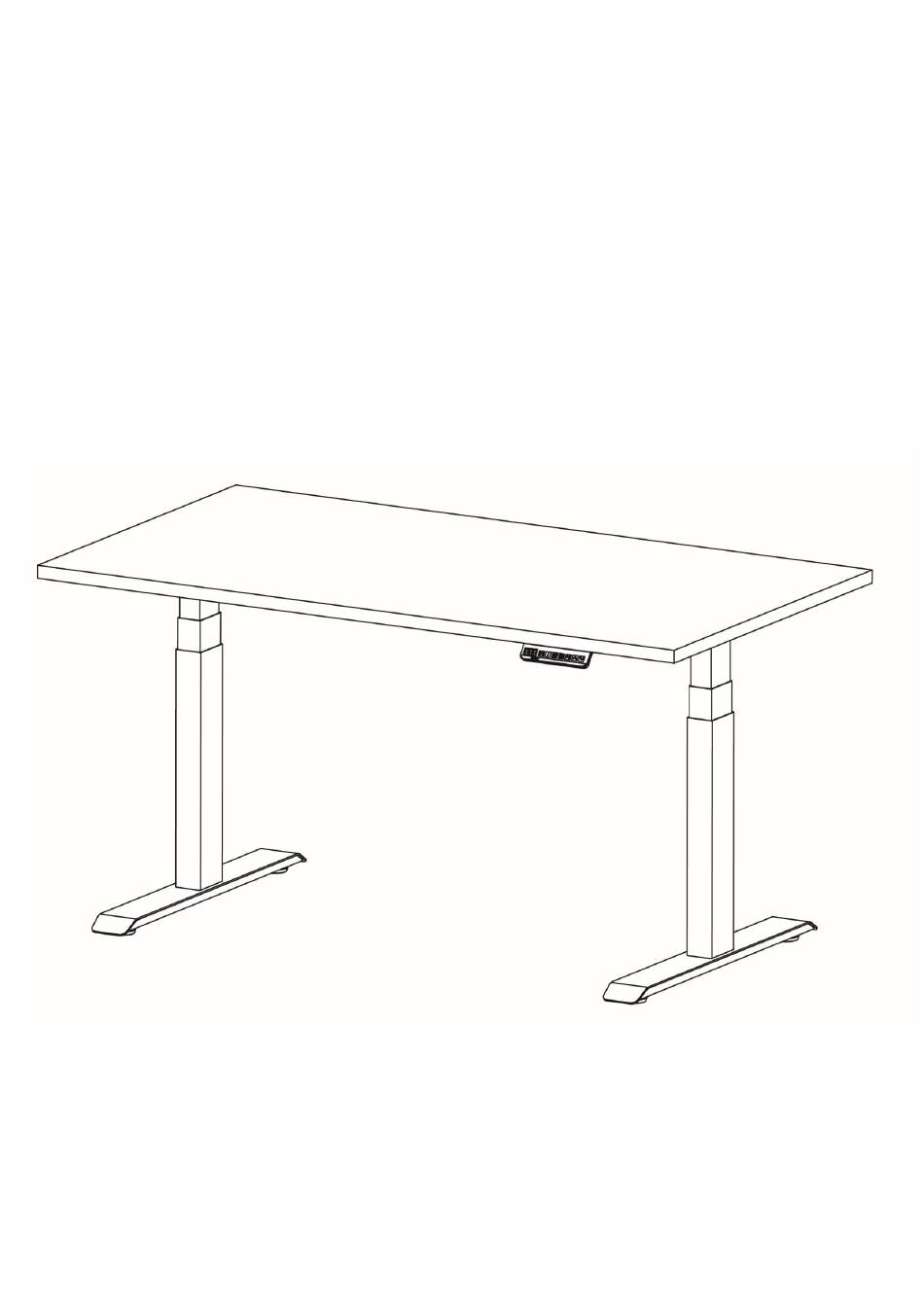

- Page 1 ELECTRIC HEIGHT ADJUSTABLE TABLE Assembly and Operation Instructions...
- Page 2 Parts List Part Name Part Name End Frame Hex Socket Screws Pack B - M6X35mm Cross Rail Hex Socket Screws Lift Column Pack C - M6X14mm Side Bracket Wood Screws Foot Pack D – M5X16mm Control Box Hex Socket Screws Pack E - M6X10mm Handset 4mm Allen Key...
- Page 3 STEP 1 Lay out all the parts to ensure that all items in the parts list are present. Fully separate the End Frames (Part 1). You will find the Cross Rails (Part 2) inside. STEP 2 Position Lift Column (Part 3) into the End Frame (Part 1) as shown in the diagram.
- Page 4 STEP 3 Insert the Side Bracket (Part 4) into the End Frame (Part 1) and align the screw holes as shown. Note: You may need to gently tap the bracket into place to align the screw holes. Insert and fasten using 2 screws from Pack B. Repeat the same process for the other Lift Column.
- Page 5 STEP 5 Orientate the side of the table top carton with the text "Face up during installation" upwards. Open the carton and ensure that the bottom surface of the table top faces upwards during installation. Leave the table top in its original carton during installation to avoid damaging the table top and its work surface.
- Page 6 STEP 5 - CONTINUED Option 1: For table tops with AdapTABLE preinstalled nuts: Align the 6 screw holes (2 on each Side Bracket and 1 on each End Frame) to the preinstalled nuts on AdapTABLE supplied table tops. Insert and fasten using 6 screws from Pack C to fix the frame to the table top.
- Page 7 STEP 6 Ensure the Cross Rails (Part 2) are positioned evenly within the End Frames (Part 1). Insert and fasten using 8 screws from Pack E in a criss-cross pattern to fix the Cross Rails in position. Note: If the cable cover tray is purchased. Align the cable cover tray slots to the screw holes before fastening the screws.
- Page 8 Make sure no obstacles are above or below the table. Make sure the table is not touching any walls. Make sure all cords have the appropriate length to accommodate changes in height. THE SET UP IS FINISHED YOUR ELECTRIC HEIGHT ADJUSTABLE TABLE IS READY TO BE USED...
- Page 9 OPERATION GUIDE Reset Procedure To be performed 1) after initial set up and 2) when the system becomes abnormal. Press and hold the down arrow button until a buzzer sound is heard, signaling completion of the reset procedure. During the procedure, after the table reaches its lowest height, the handset displays “RST”...
- Page 10 OPERATION GUIDE Unlock Child Lock / Unlock When the table has child lock activated, press and hold the up and down arrow buttons together for approximately 5 seconds. Child lock is deactivated when you hear a buzzer sound and the handset displays the height value. Release the up and down arrow buttons.
- Page 11 OPERATION GUIDE Set the minimum height Move the table to the minimum height you would like to limit the table to. Press the M and down arrow buttons together for approximately 5 seconds. Release the buttons when you hear a buzzer sound, signaling minimum height set. To remove the custom minimum height setting: 1) Use reset procedure or 2) Move the table to the minimum height followed by pressing the M and down arrow buttons together for approximately 5 seconds.
- Page 12 OPERATION GUIDE Error Code Key Code Meaning Suggested Actions Power supply exceed input voltage Check if power supply is within required input range. voltage range. Lift columns unbalanced by > 10mm. Perform reset procedure. Handset not connected. Plug handset wire connector into the control box.
- Page 13 OPERATION GUIDE Error Code Key Code Meaning Suggested Actions Series connection error. Reconnect all cable connectors into control box. If problem persists, check with technical support. Series signal error. Reconnect all cable connectors into control box. If problem persists, check with technical support. Memory error.
- Page 14 CAUTION Make sure no obstacles are above or below WARNING! PINCH POINT! the table. Make sure the table is not touching any walls. Make sure all cords have the appropriate length to accommodate changes in height. USE & LIABILITY This sit stand table has electric motors and is designed for use in dry work areas only. The table height is adjustable so that it can be positioned at the most ergonomically height.
