Emona Communications Board – DxIQ-45G

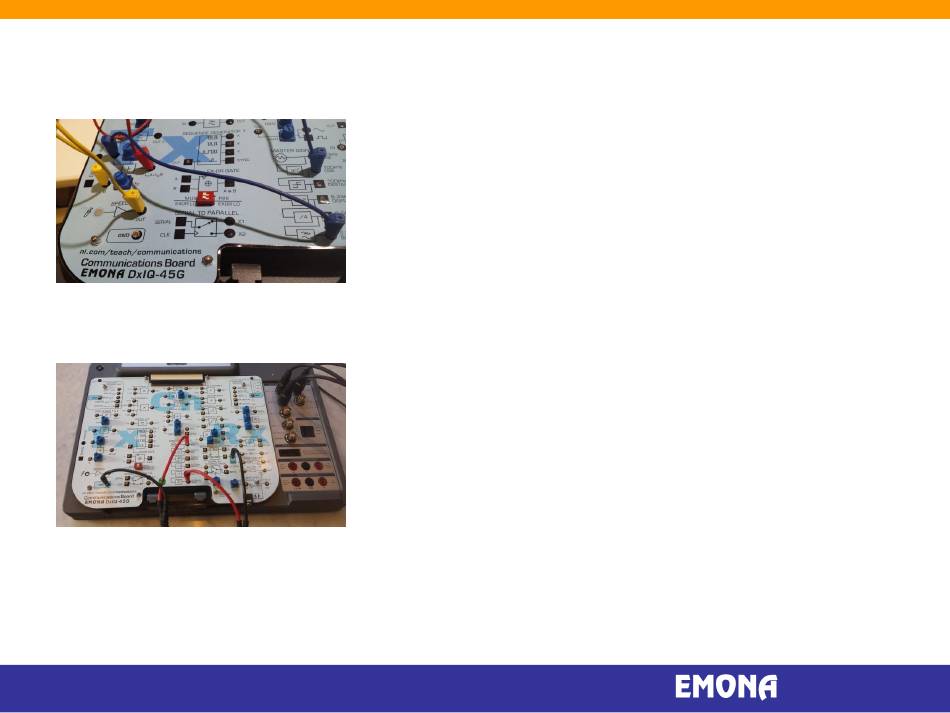

Close-up of the DxIQ-45G board

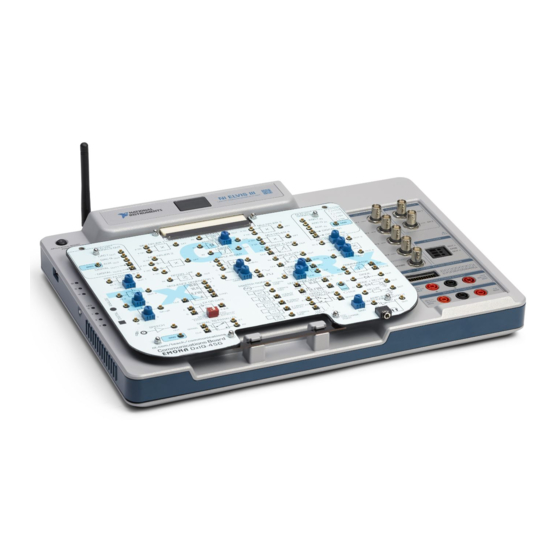

Illustration of DxIQ-45G mated with NI ELVIS
www.emona-tims.com
PRODUCT APPLICATION:
To provide a cost effective top-board for NI ELVIS™ III,
covering the core topics in a university-level communications
systems (transmission theory) lab program.
IMPLEMENTATION:
•
A single panel PCB, which plugs into the NI ELVIS III.
•
Many experiments implemented on ONE panel, replacing 6 or
more experiment panels implemented by other "trainer"
manufacturers.
•
Student patches together each experiment, using Emona's well
established BLOCK DIAGRAM approach.
•
DxIQ-45G will be supplied as a complete package, with all
required accessories.
•
Comprehensive lab manual with detailed experiments.
•
Integration with NI's web-based ThinkScape experiment
delivery platform.
Instruments
Advertisement
Table of Contents
Summary of Contents for Emona Instruments DxIQ-45G
- Page 1 • Student patches together each experiment, using Emona’s well established BLOCK DIAGRAM approach. • DxIQ-45G will be supplied as a complete package, with all required accessories. • Comprehensive lab manual with detailed experiments. • Integration with NI’s web-based ThinkScape experiment Illustration of DxIQ-45G mated with NI ELVIS delivery platform.
- Page 2 BLOCKS PROVIDED: EXPERIMENT COVERAGE: These are independent functional blocks, DxIQ-45G EMONA COMMUNICATIONS BOARD Lab Manual - conceptually analogous to “LEGO™ building blocks”, used by the student to CH1 – Introduction to the DxIQ-45G build the experiments listed here. CH13 – Introduction to DSSS (Spread...
