ASI VELARE 0663-1 Installation Manual

VELARE™ BTM SYSTEM CABINET INSTALLATION GUIDE (PAGE 1 OF 3)
IMPORTANT: READ THESE INSTRUCTIONS COMPLETELY PRIOR TO BEGINNING
INSTALLATION & RETAIN FOR FUTURE REFERENCE WITH SUB-SYSTEM OM'S.
Open the mirrored door using the tumbler lock located at the bottom of unit in order to access the interior of the
module. Use caution when opening the door as the gas springs will raise the door from closed position. Remove
and retain the key for future access.

Pack contents:

1x 12V AC/DC Adapter with 1 output plug for Foam Soap Dispenser
1x 12V AC/DC Adapter with 2 output plugs for EL Lighting System
2x Mounting Hanging Brackets

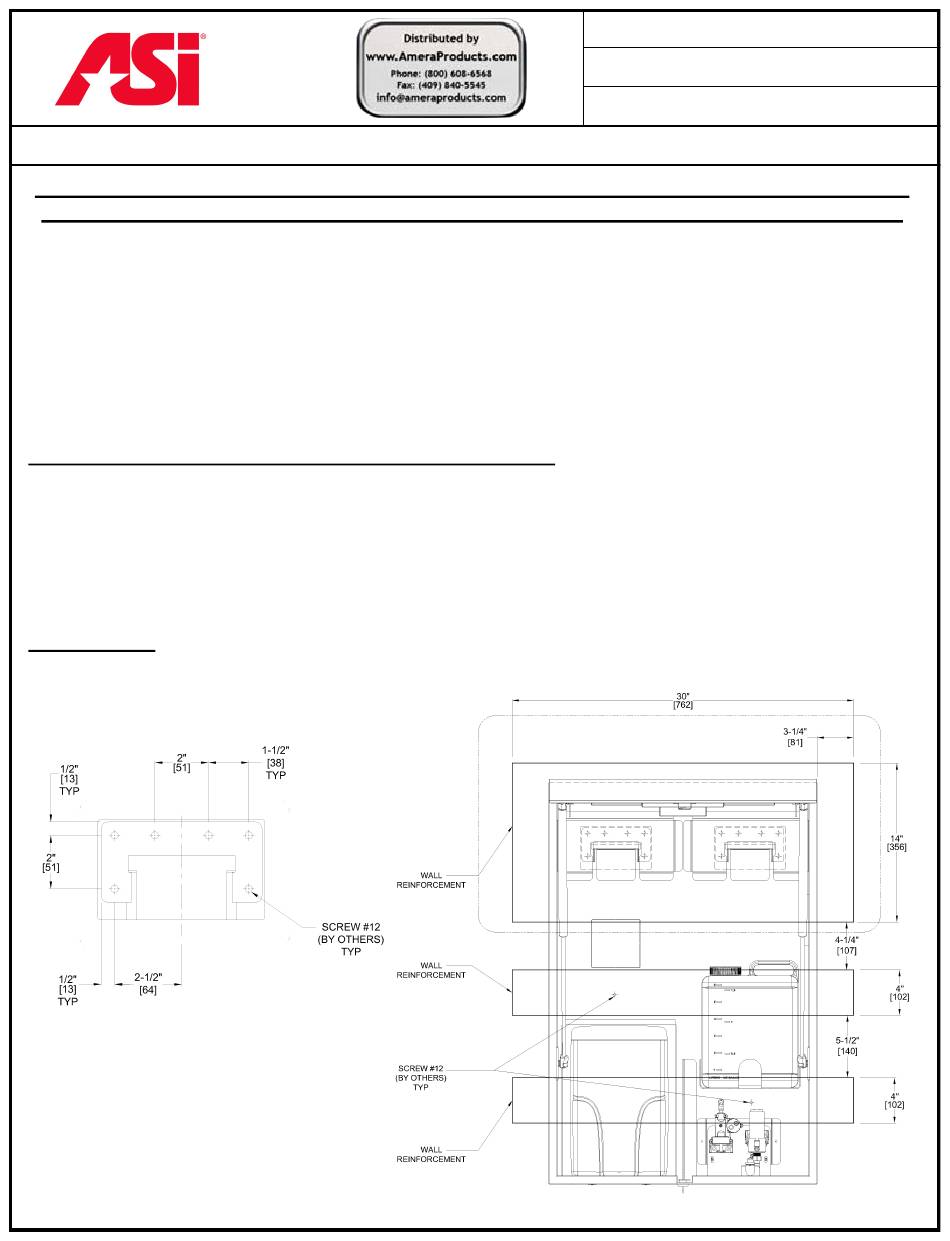

INSTALLATION OF WALL MOUNTING HANGER HOOKS

Appropriate wall reinforcement and AC quad outlet must be prepared prior to initiating the Velare™ BTM
System installation (see Fig. 2 for blocking reference and Fig. 5 for Electrical KO location). Install the two (2)
wall mounting hanger hooks located in the interior of the module on wall using twelve (12) № 12 self-threading,
pan-head screws (by others) (Fig. 1) into appropriate wall reinforcements (Fig. 2). Hang the cabinet on wall
mounting hanger hooks (Fig. 3). Suggested mounting height is to position bottom of module 16" [406] to
20" [508] above vanity top (Fig. 4). Power can be provided to the interior of module through the Electrical
Service KO for Quad Outlets located at the back of the cabinet.
IMPORTANT: Install two (2) № 12 self-taping locking screws (by others) at the security locking holes to
prevent unit from being lifted off hanger hooks.
FIG. 1
NOTES:
Dim's inch [mm] & NTS
See TDS for Dim's not shown
THIS MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR DIMENSIONS WITHOUT FORMAL NOTICE
MODEL №:
ISSUED:
REVISED:
FIG. 2
0663-1/2
29 JAN 2019
13 MAR 2019
