CFAF240400C0-030SC-A1-2 - Quick Start Guide
Kit Contents
• 1x Crystalfontz CFAF240400C0-030SC display and CFA 10097 EVE board Module
• 1x Crystalfontz CFA10098 Breakout & Audio board
• 1x Seeed Studio's Seeeduino v4.2 development board (pre-programmed)
• 1x Crystalfontz WRFFCY50 flat flex cable
• 1x Crystalfontz WRUSB27 USB cable
• 9x Crystalfontz individual WRJMPY40 female-female jumper cables
Quick Start
Step 1 -

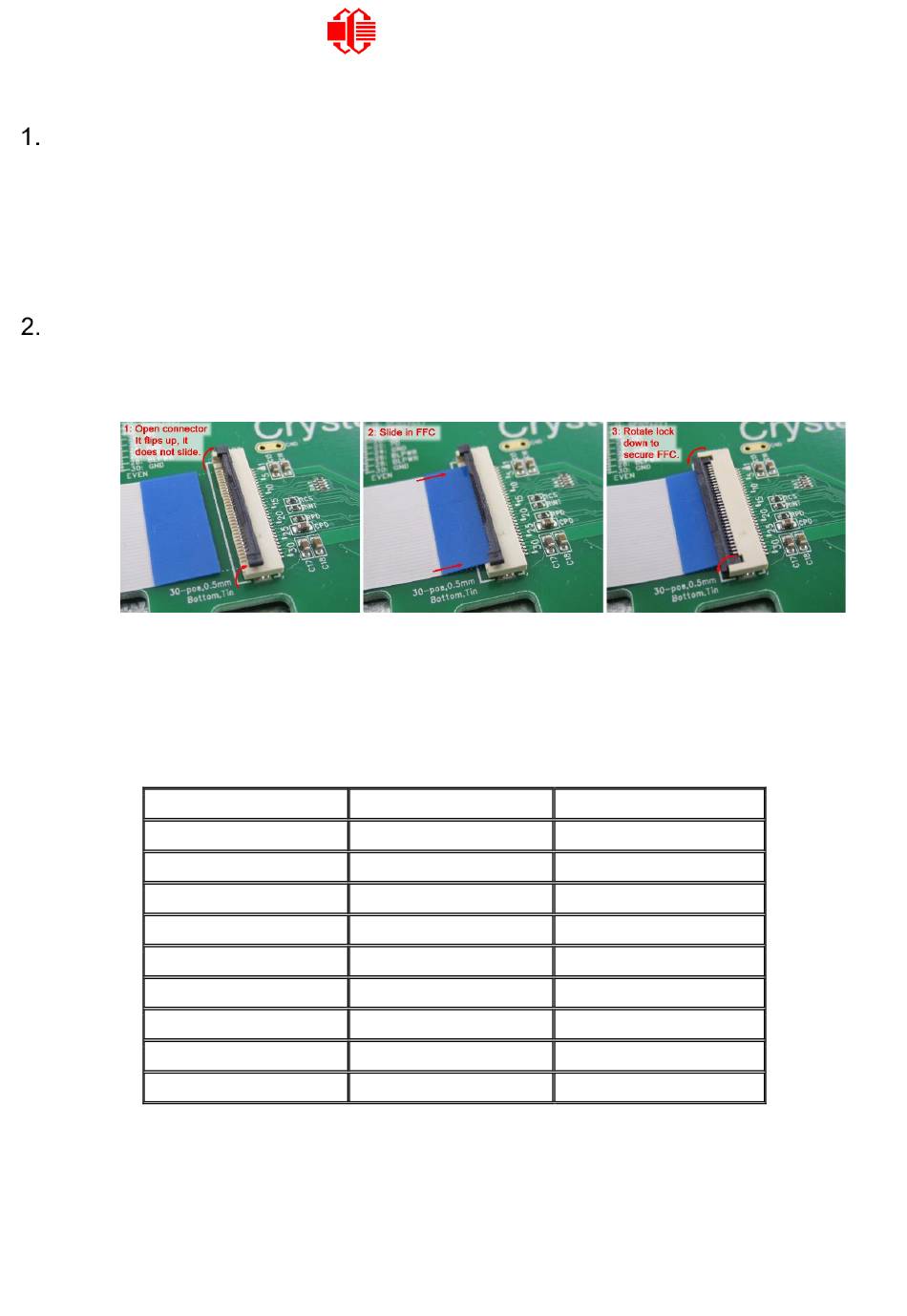

Connect the Module to the CFA10098 using the flex cable. See the image below for the cable orientation
and steps required for connection:
Step 2 -
The Seeeduino is supplied connected to the CFA10098 using nine jumpers. If any of the jumpers have
accidentally become disconnected, reconnect as per the following diagram.
Page 1 of 2
Seeeduino
3v3
GND
D13
D11
D12
GND
D9
D7
D8
Crystalfontz
Color
Red
Pin1: 3.3v
Black
Pin2: GND
Orange
Pin3: SCK
Yellow
Pin4: MOSI
Green
Pin5: MISO
Brown
Pin8: GND
White
Pin9: CS
Violet
Pin10: INT
Blue
Pin11: PD
CFA10098
Advertisement
Table of Contents
Summary of Contents for Crystalfontz America CFAF240400C0-030SC-A1-2
- Page 1 Crystalfontz CFAF240400C0-030SC-A1-2 - Quick Start Guide Kit Contents • 1x Crystalfontz CFAF240400C0-030SC display and CFA 10097 EVE board Module • 1x Crystalfontz CFA10098 Breakout & Audio board • 1x Seeed Studio’s Seeeduino v4.2 development board (pre-programmed) • 1x Crystalfontz WRFFCY50 flat flex cable •...
- Page 2 Crystalfontz CFAF240400C0-030SC-A1-2 - Quick Start Guide Step 3 - Make sure the voltage selection switch on the Seeeduino is set at 3.3V. Step 4 - Connect the Seeeduino to a 5V power supply using the USB cable. The 5V power supply can be a computer, bench supply, a plug-pack style power supply, or similar.
