Summary of Contents for Outdoor Tech TURTLE SHELL 3.0

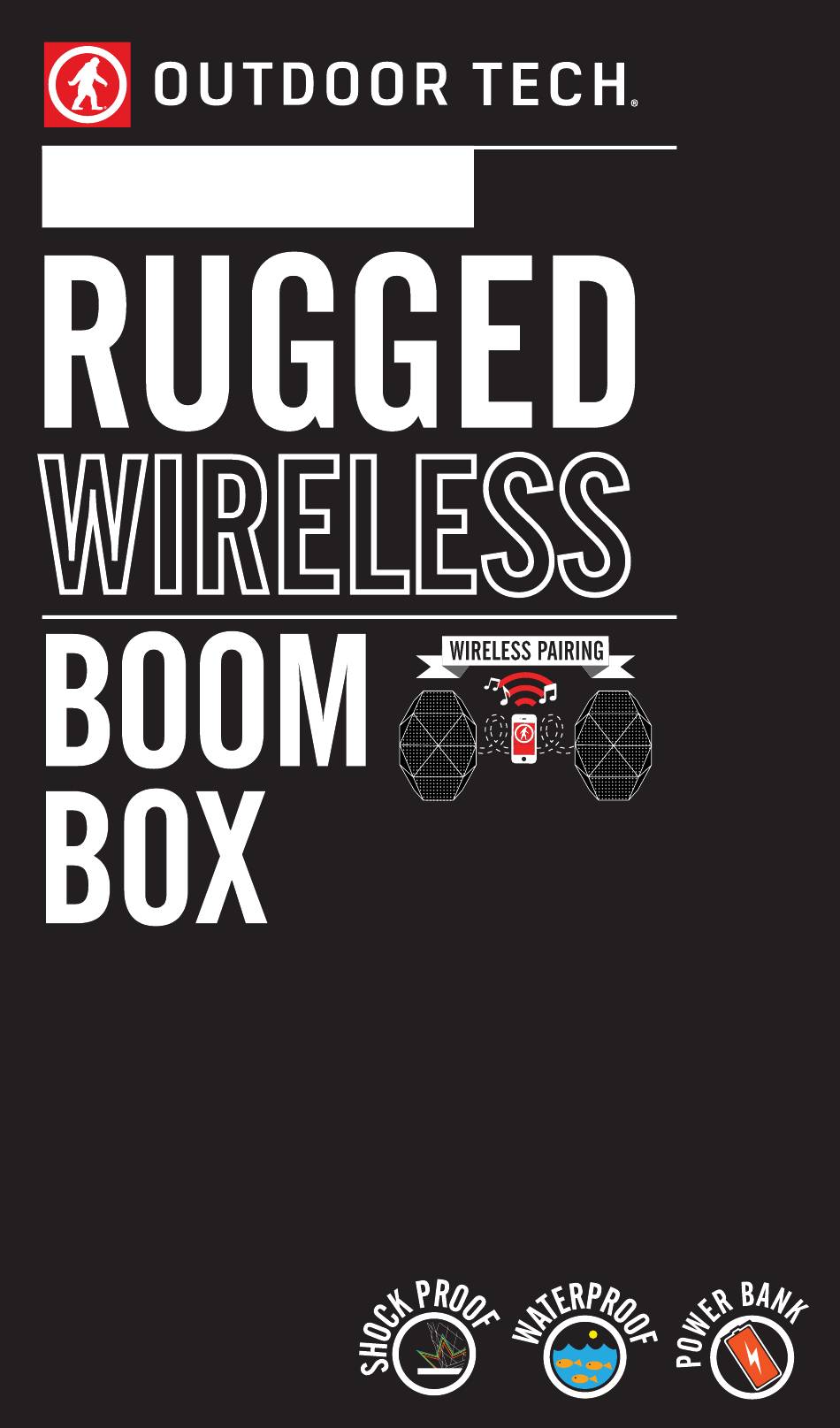

  • Page 1 TURTLE SHELL ®...
  • Page 3 Good call on picking up the Outdoor Tech Turtle Shell 3.0 wireless boom ® ® box. Your experience of the universe will soon be enhanced wirelessly and powerfully. This manual exists to help make sure that you use it correctly, so you’re definitely going to want to relax for a hot second and look through this.

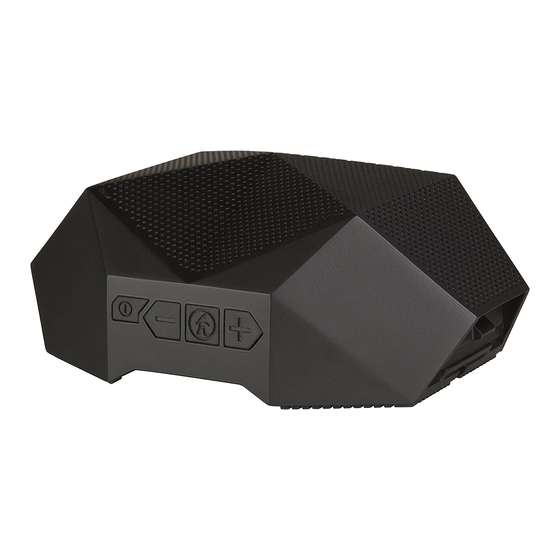

  • Page 4 ANATOMY Power On / Power Off Multi Function Button Skip Backward / Volume Down Skip Forward / Volume Up Micro USB Charge Port / 3.5 mm Aux Port USB Output Charge Port Microphone Light Indicator...
  • Page 5 POWER UP TO CHARGE For best results, fully charge your Turtle Shell ® 3.0 before use! 1. Connect the included MIcro USB cord to a power source and the charging port on the Turtle Shell 3.0. When charging, the red LED ®...

  • Page 6: Music Functions

    MUSIC FUNCTIONS Music / Device Controls Skip backward Skip forward Volume down Volume up FUNCTION BUTTON ACTION Power on Press 3 sec Power off Press 2 sec Pairing mode Hold 3 sec Manual pairing Hold for 3 sec mode Play / Pause Short press once Volume up Short press once...

  • Page 7: Phone Functions

    PHONE FUNCTIONS Device Controls Skip backward Skip forward Volume down Volume up FUNCTION BUTTON ACTION Answer an Short press once incoming call Reject an Press & hold for incoming call 2 sec End call Short press once Siri/Voice Press & hold for 2 activation sec &...
  • Page 8 “ODT Turtle Shell 3.0” as an ® available device to pair. Connect with the Turtle Shell 3.0 and enter “0000” if prompted. The voice ® prompt will state “Successful” if the Turtle Shell 3.0 and your device connect.
  • Page 9 MFB button and the “-” button. TS3 #2 will then state that it is in pairing mode. STEP THREE Once TS3 #1 and TS3#2 are connected, the voice prompt will state “Successful.” For more functions, go to outdoortech.com/apps/ to download the Outdoor Tech app.
  • Page 10 Shell 3.0 can be used as a wireless headset. *NOTE: The built-in microphone only works when connected via Bluetooth. The following are tips on how to use your Turtle Shell 3.0 to speak on the telephone: Answer a call..Press the multifunction button.
  • Page 11 Hearing Distortion A. Lower the volume on your Turtle Shell ® and / or phone /device. ® B. Make sure it’s charged up. Check for low battery, then charge if necessary. Not Loud Enough A. Turn up the volume on your phone / device or your Turtle Shell 3.0.
  • Page 12 Capatability: Bluetooth v 1.1 and above Operating range: 32 ft Operating range between speakers: 15 ft Device name: ODT TURTLE SHELL 3.0 Power source: Lithium ion rechargeable battery cell Battery capacity: 3600mAh / 13.32 Wh Charge Output: 5V / 1A Charge Input: 5V / 2.1A...
  • Page 13 K, bye.
  • Page 14 DON’T BE SO ANTISOCIAL Facebook.com/outdoortech Twitter & Instagram: @outdoortech Questions, comments, complaints, secret desires, or just to say what’s up: email info@outdoortech.com K bye. outdoortech.com...
  • Page 15 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 16 Important Important Safety Safety instructions instructions Important Important Safety Safety instructions instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 17 l'appareil doit doit ê ê ê ê tre utilis utilisé é é é au maximum 45 ° ° ° ° C C C C la la la la temp temp tempé é é é rature rature ambiante. l'appareil l'appareil l'appareil doit doit tre utilis utilis...
