Summary of Contents for Click 3D

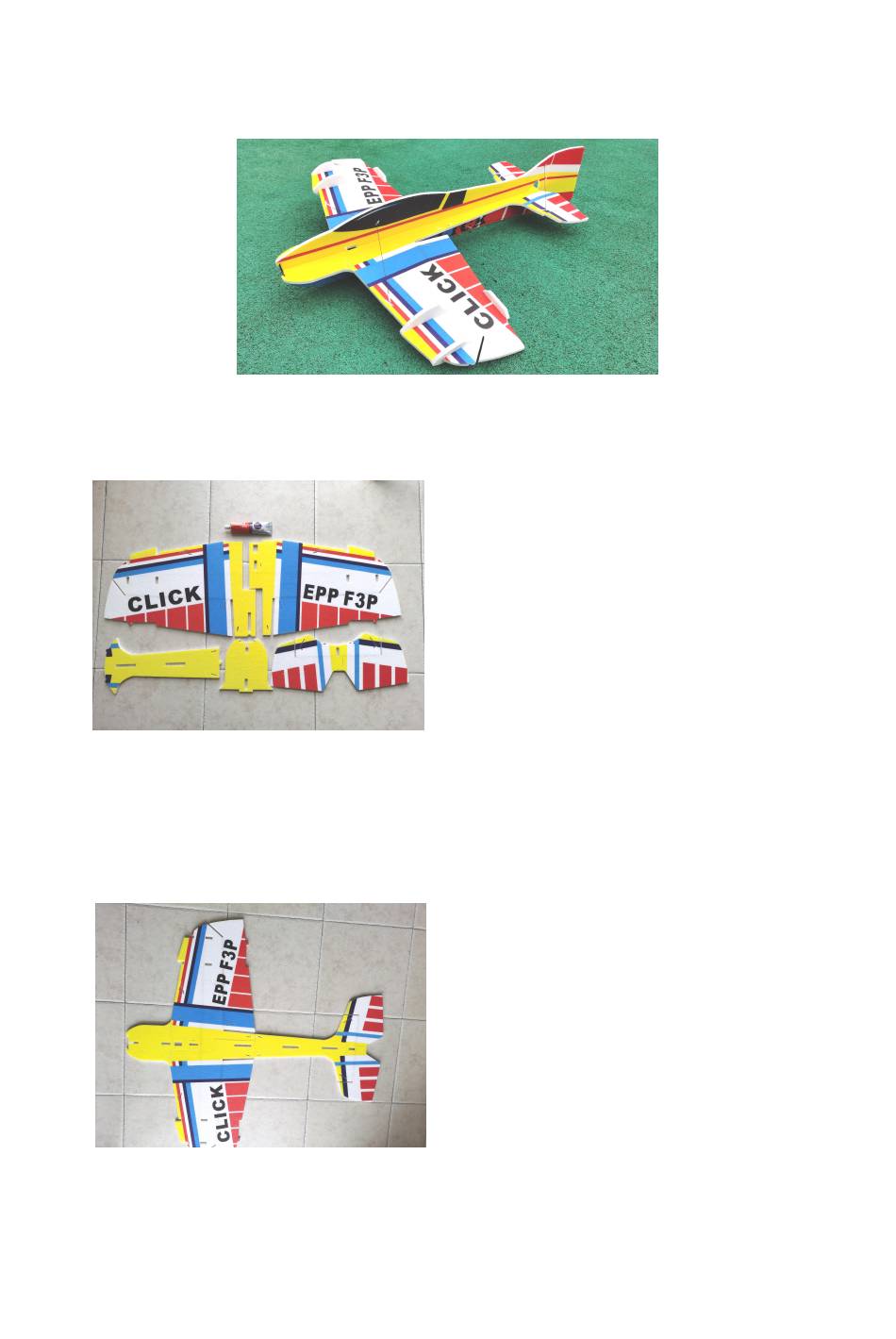

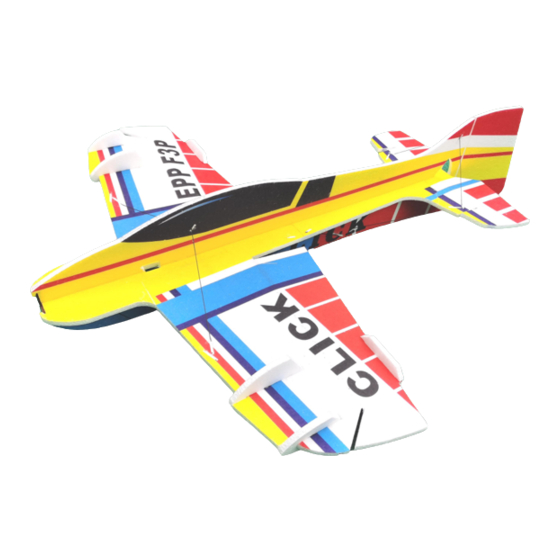

- Page 1 CLICK 3D Install Manual 1.Take out these five parts. 2. Use glue to stick them up.
- Page 2 3. Grind the 3mm carbon tube in the accessory package with sandpaper, and then insert the 4mm square carbon tube to connect the two square carbon tubes; if the connector is stainless steel tube, insert the two square carbon tubes into the stainless steel tube and glue them.
- Page 3 6. Stick the wing and fuselage together, and pay attention to the fact that the wing and fuselage must be vertical. 7. Stick on the wing tips and motor mounting wood part; stick the servo wood seat onto the servo hole. 8.
- Page 4 9. Glue on the 4 carbon rods on the front of the fuselage. Before the glue solidifies, make sure that the horizontal and vertical parts of the fuselage are vertical. 10. Install four rudder horns and push rod fixing plates, and the position of the push rod fixing plate is determined according to the length of the selected servo rocker arm.
