LEGRAND Arteor AR970LMWE Series Quick Start Manual

Arteor
TM
MECHANICAL PUSH-BUTTON
AR970LMWE / AR970LIMMWE / AR970LBPMWE / AR970LELVMWE Series
AR970LMWE / AR970LBPMWE / AR970LELVMWE
Package Contents

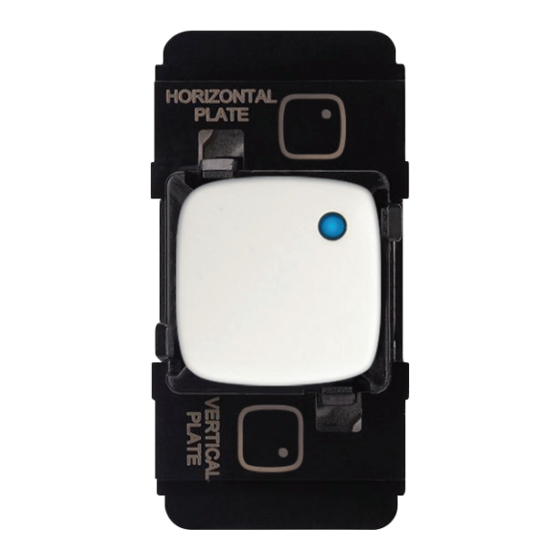

Push-button mechanism
Technical specifications
Nominal Input Voltage
Rating (Fluorescent/Incandescent)
Rating (LED)
Switch type
Terminals
Important Information
■ This product must be installed and used as per these instructions.
■ This product must be installed by a licensed electrician or similarly qualified person.
■ V90-rated building wire must be used when wiring this product.
■ This product has been designed with limited short circuit protection.
■ Repeated short circuits may still damage the product.
■ Severe electromagnetic interference from other products may cause malfunction of this product.
■ This product should only be cleaned with a damp cloth. Cleaning agents and solvents should not be used.
■ This product contains no serviceable parts and no attempt should be made to repair this product. If the product
is faulty it should be discarded.
■ Legrand reserves the right to modify the specifications of this product at anytime.
AR970LIMMWE
■ 1 x Push-button mechanism
■ 1 x Pack of buttons
Button ■ Instruction Sheet
For colour variation, order separately pack of buttons (pack of 20):
● ARPBCOV970LMGN (Magnesium)
● ARPBCOV970LCHP (Champagne)
● ARPBCOV970LALU (Aluminium)
AR970LMWE AR970LIMMWE
250 V a.c.
10 AX 10 AX
100 W
2-way Intermediate
AR970LBPMWE
10 A
2 x 1.5 mm or 1 x 2.5 mm
2 2
AR970LELVMWE
12/24 V d.c.
5 A
-
Momentary
