INSTRUCTION MANUAL

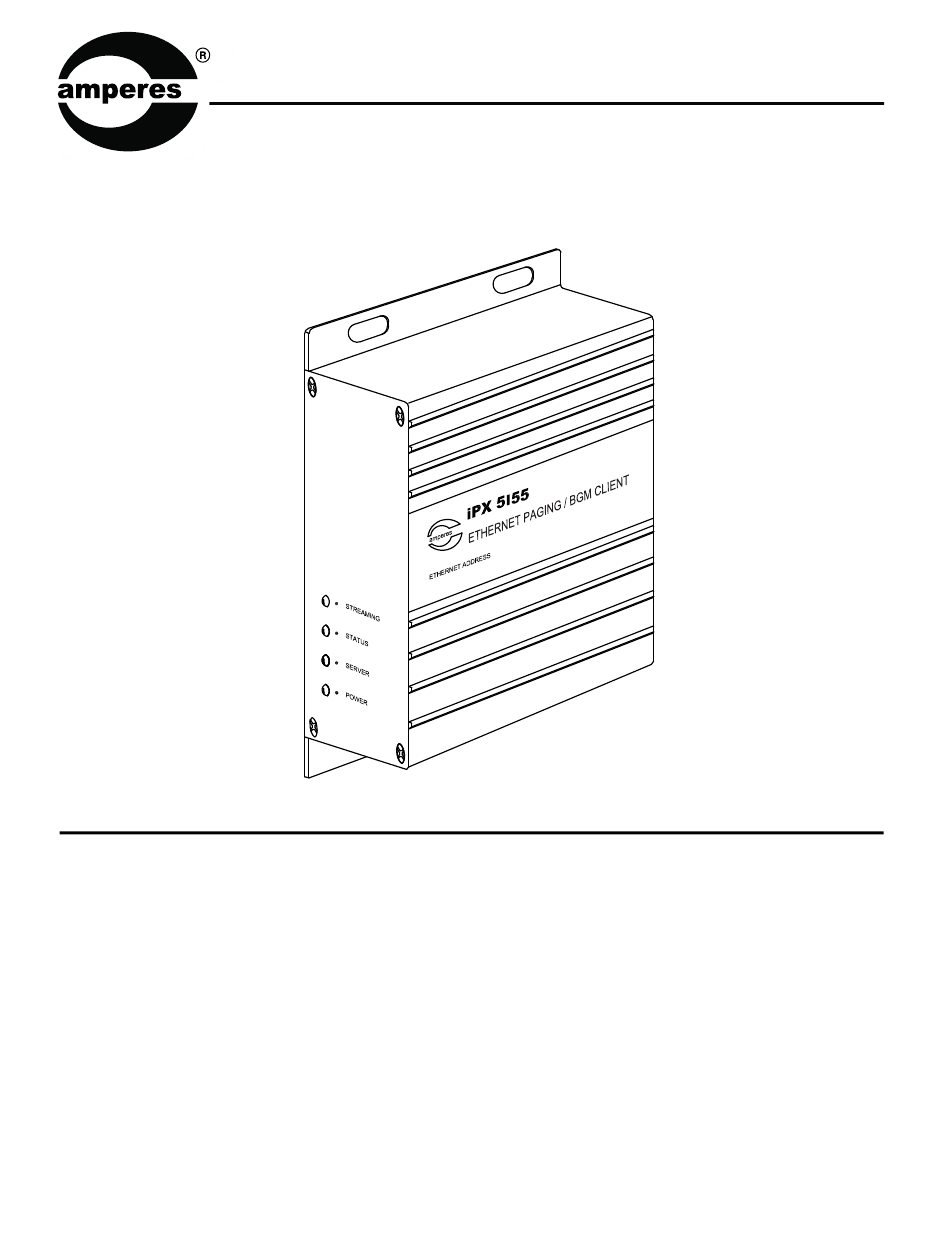

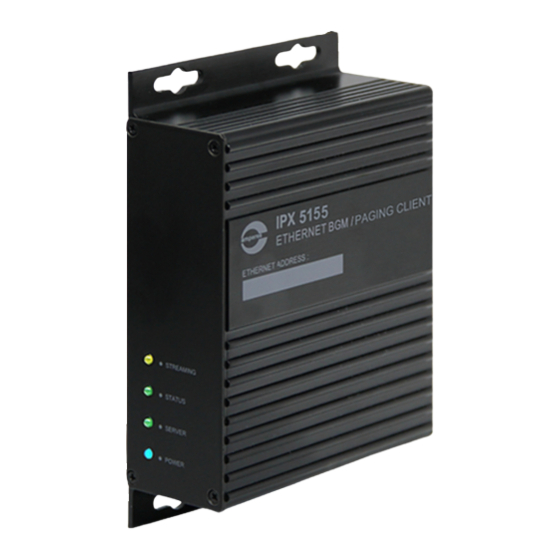

iPX5155
Ethernet BGM / Paging Client (Audio Extractor)
ULTRA LOW LATENCY
Thank you for choosing another quality product from Amperes Electronics.
iPX5155 is a combination of Paging and Music clients in a box, reducing the equipment counts for audio transmission in a LAN
environment. It is suitable for distributed paging configuration, such a placement of amplifiers in risers in multiple blocks or
systems.
How it works ... iPX5155 receives normal BGM broadcast from central system, such as from iPX5200 ( audio music server )
or PMX software and deliver balanced audio output to amplifiers. Upon Paging broadcast and intended for the particular
address of iPX5155, the BGM shall be muted and resume when Paging ends. UART ( RS485 ) is available for controls of zone
selection if required.
With iPX5000 series of LAN paging equipment, new setup for large and decentralized paging system is now made easier and
affordable. Upgrading to IP from conventional analogue PA system would be made achievable without having to change the
whole system.
Applicable for Version 2.29 and above
VER 3 / 2021
