Wolverine Brass 39707 Installation Instructions

INSTALLATION INSTRUCTIONS
39707

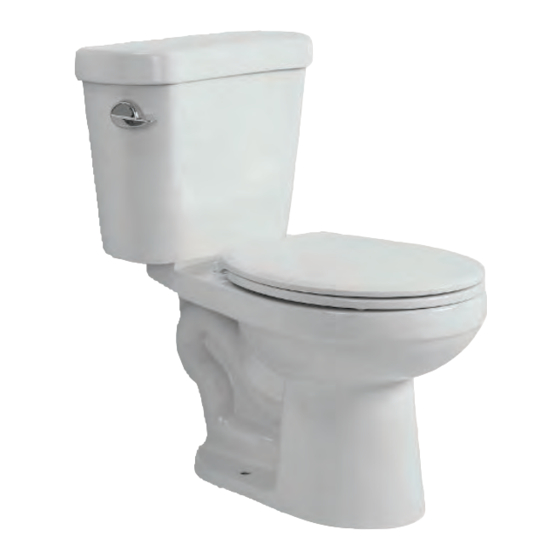

Two-Piece Round Toilet
92-39707-04
NEED HELP?
For additional assistance or service please contact:
VERIFY ROUGH-IN
1
For your Toilet to fit correctly, the rough-in distance between the finished wall to the center of the
Closet Flange must be at least 12"
Finished
Water
Supply
Valve
12"
INSTALL SUPPLY LINE TO TANK
Install Water Supply Line to the Inlet Shank
3
of the Fill Valve. Tighten into position. Do
Not Over-Tighten connection or damage
may occur.
DRY CONNECTION ONLY!
DO NOT USE ANY THREAD SEALANT ON THIS CONNECTION
TOOLS & SUPPLIES NEEDED
Phillips
Flat Tip
Screwdriver
Screwdriver
Slip Joint Level
Wrench
Measuring
Tape
www.wolverinebrass.com
800-944-9292
Wall
INSTALL TANK BOLTS
Install the Conical Rubber Washers onto
4
Tank Bolts with the tapered side facing
down. Reach inside the Tank and position
the Tank Bolts through the Bolt Holes in
the bottom of the Tank. From below the
Tank, install a set of Rubber Washers,
Metal Washers, Lock Washers, and Nuts.
Wrench tighten.
CAUTION: Do not over-tighten or damage may occur.
IMPORTANT
Adjustable
SAFETY TIPS:
Wrench
Be sure to read and understand all instructions
before beginning installation.
Inspect all connections after installation.
Be sure to wear proper eye protection.
MAINTENANCE:
Your new Wolverine Brass Product is designed
Supply Hose with
for years of trouble-free performance. Keep it
7/8" Ballcock End
looking new by cleaning it periodically with a
(Included)
soft cloth. Avoid abrasive cleaners, steel wool,
and harsh chemicals as these will dull the finish
and void your warranty.
Your new Wolverine Brass Toilet includes a
premium fill valve with an internal filter designed
to trap impurities allowing for reliable operation
of the fill valve. Periodic removal and cleaning
of the filter is recommended for optimal
performance. Please see the "Fill Valve Filter
Cleaning" section of this document for more
information.
NOTE:
This installation manual covers several
models of Toilets. While the appearance of your
Toilet may differ from those shown, the
installation method is the same.
2
Place the Toilet Tank upside down onto padding. Inspect the pre-installed Fill Valve Nut and Flush
Valve Nut for a secure connection.
Fill Valve Nut: Hand tighten only!
Flush Valve Nut: Hand tighten, then wrench tighten 1/2 turn.
Place the Tank-to-Bowl Gasket onto the Flush Valve Nut. While pressing down, spread the
Gasket over the Nut until the Gasket touches the bottom of the Tank.
Note: A small gap between the Tank Bottom and Gasket is allowable.
Fill Valve Nut
Closet
Flange
Position Tank above Bowl and guide Tank Bolt Assemblies through the appropriate holes in the
5
Bowl. From below, install a 2
to the Bowl. Wrench tighten until Tank makes several points of contact to the bowl.
DO NOT OVER-TIGHTEN
CONNECTIONS OR DAMAGE MAY
OCCUR.
DO NOT USE CHLORINE OR ANY
CHEMICALLY RELATED
COMPONENTS AS THIS WILL
RESULT IN DAMAGE TO TANK
COMPONENTS AND MAY CAUSE
FLOODING AND PROPERTY
DAMAGE.
USE OF CHLORINE OR
CHEMICALLY RELATED
COMPONENTS WILL VOID
WARRANTY.
PREPARING THE TANK
Flush Valve Nut
SECURING THE TANK TO THE BOWL
nd set of Metal Washers, Lock Washers, and Nuts to secure the Tank
CAUTION: Do not over-tighten or damage may occur.
WARNING
Tank-to-Bowl
Gasket
