Summary of Contents for Blue Pneumatic BP-20CR

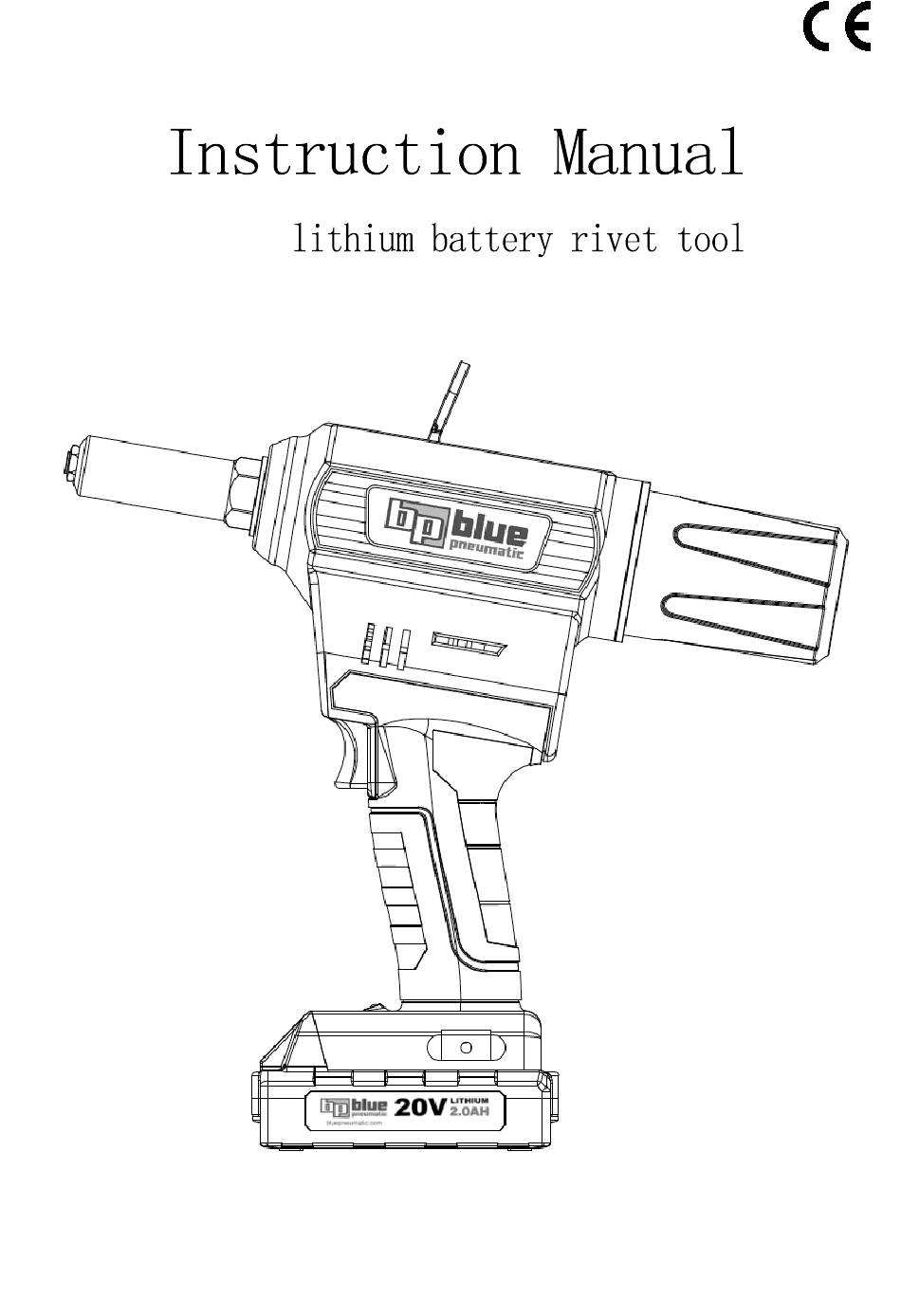

Page 1 BP-20CR...
Page 2 Safety information and technical manuals Please read the following safety information and instructions.Improper operation can lead to electric shock, fire or other serious injury. Please keep all safety information and instructions for future reference. 1:Keep the working area clean to provide adequate lighting,messy work area not bright enough may lead to the occurrence of accidents.
Page 3 Lithium battery charging safety instructions: with water and 7: The battery shall be stored according to the storage requirements, Three months The battery is not fully charged when it leaves the factory. using. Pay attention to the harging indicator on the charger. ,Lithium battery charging can be charged at any time, interruption of charging, does not affect its life, will not damage the battery.
Page 5 BP-20CR Parts List...
Page 6 Product parameters Tool stroke excluding battery ) Weight Pulling force Motor brushless DC motor battery Rated voltage Capacity:2.0Ah Weight Input voltage Output voltage Charging time Weight Convex nozzle Flat nozzle 1: Flat nozzle (FIG.1) is suitable for situations such as larger riveting plane space, larger rivet cap and shorter rivet rod etc.
Page 7 Operational guidelines Insert the battery,only use the battery provided by the original factory,strictly follow the warning on the battery label. The number of nozzle is according to the corresponding riveting specification, remove the head housing by hand, use a wrench to replace the nozzle. After the replacement,install the head housing.
Page 8 Trouble shooting Symptom Possible cause Remedy Change jaw jaw damaged Difficult to pull the rivet Battery under voltage Charge or replace the battery Change jaw jaw damaged Clean the jaw and fill the jaw dirty lube oil Grasp the rivet skid Change top tube spring Top tube spring failure The riveter nozzle is not...
