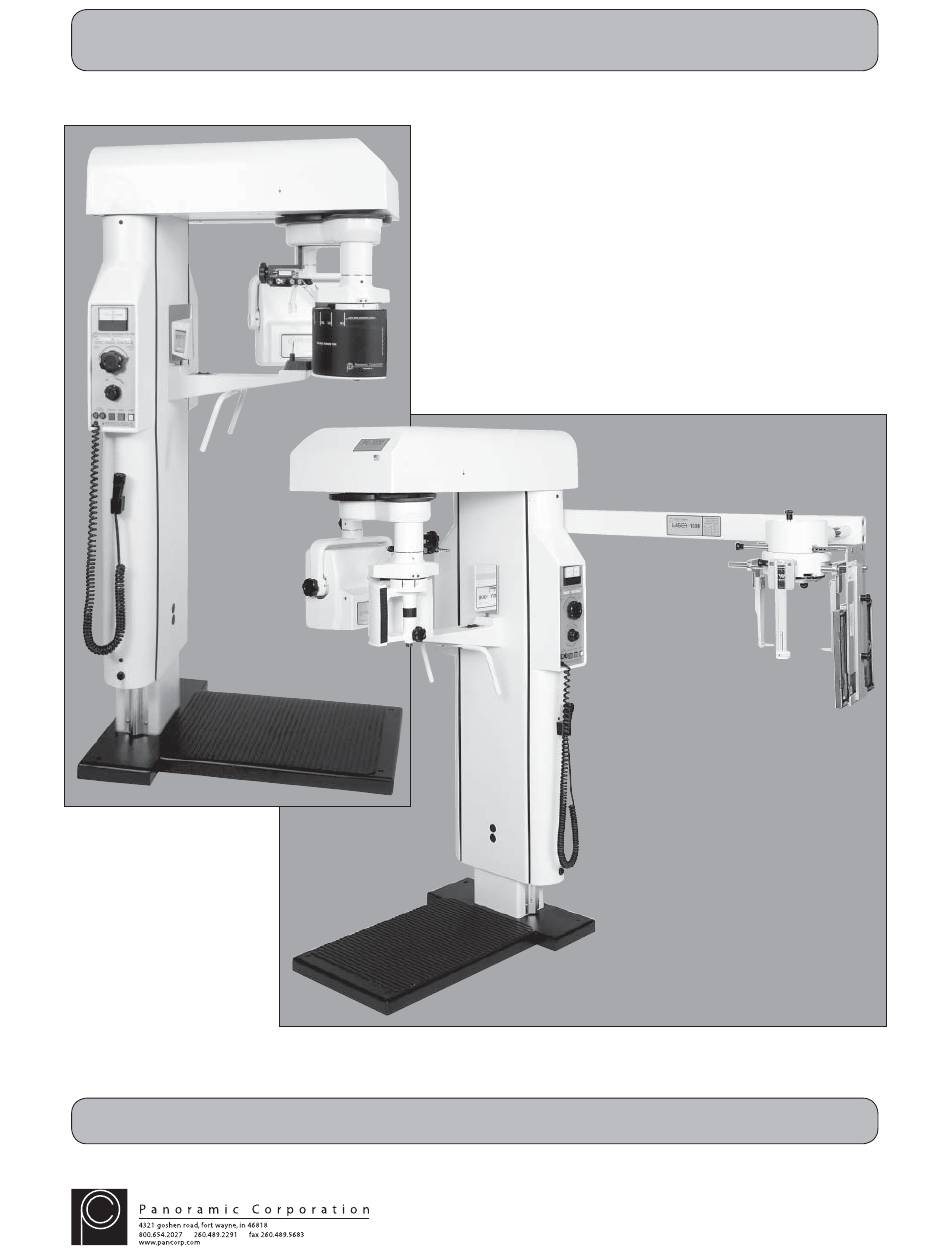

PC-1000/Laser 1000 Service Manual

Panoramic Corporation Dental Panoramic/Cephalometric X-ray Machine

SM6000 Rev C

Table of Contents

Need help?

Do you have a question about the PC-1000 and is the answer not in the manual?

Questions and answers

Sandra

June 10, 2025

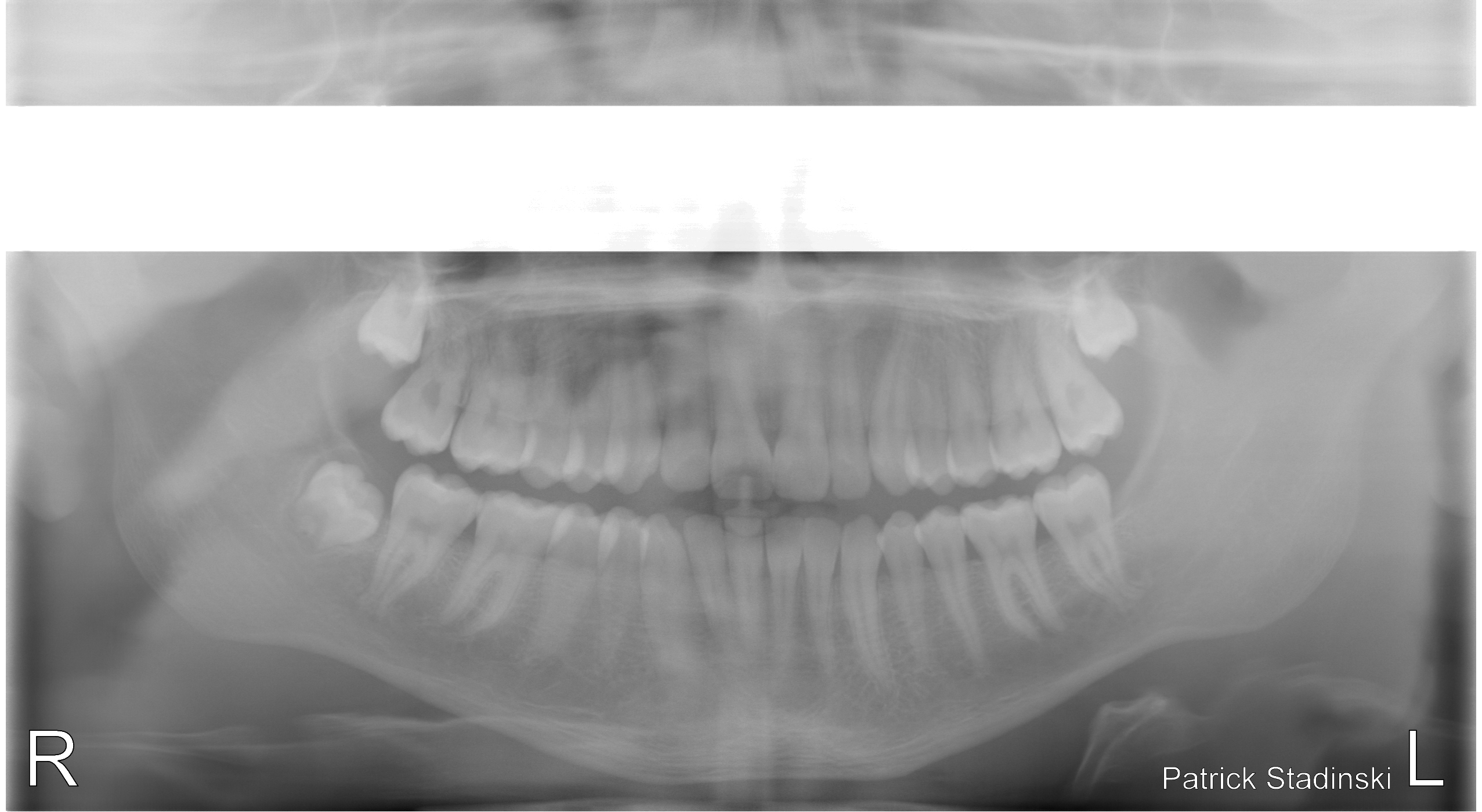

What would cause a white band across the entire pano image?

Summary of Contents for Panoramic PC-1000

Page 2: Table Of Contents
Perform X-ray Beam Alignment ................16 Install Top and Rear Covers ................17 Complete Installation ................... 17 PC-1000/Laser 1000 Installation PC-1000/Laser 1000 Components ..................18 PC-1000/Laser 1000 Installation ..................19-39 Tools Required ..................... 19 Verify Power ......................19 Remove Packaging and Shipping Restraints ............19 Control Panel Relocation ..................
Page 3: Table Of Contents
Maintenance Schedule ....................Appendix C PC-1000/Laser 1000 Labeling ..................Appendix D PC-1000/Laser 1000 Speciﬁ cations ................Appendix E PC-1000/Laser 1000 Space Requirements ..............Appendix F PC-1000/Laser 1000 Parts List ..................Appendix G Final Assembly Base Assembly Main Chassis Assembly Chinrest Arm Assembly...
Page 4 Table of Contents PC-1000/Laser 1000 Parts List (continued) ..............Appendix G Laser Collimator Assembly Electromagnet Assembly PC-1000/Laser 1000 Schematics ................... Appendix H System Wiring Control Panel Timer Circuit Board X-ray Control Laser Power/Control © Copyright 2008 Panoramic Corporation...
Page 5: Introduction
Introduction Purpose Panoramic Corporation provides this printed manual as a guide for the operation of the PC-1000 dental panoramic X-ray machine and the PC-1000/Laser 1000 dental panoramic/cephalometric dental X-ray machine. The PC-1000 will enable the user to take panoramic X-ray images. The PC-1000/Laser 1000 will enable the user to take panoramic X-ray images, as well as cephalometric X-ray images.
Page 6: Limited Warranty
Introduction Voltage Regulator Warning Do not plug this machine into ANY voltage regulating device. Contact Panoramic Corporation with any questions regarding this. X-ray Shielding Requirements The requirements for panoramic and cephalometric shielding for building, operator, and patient, depend on state and local regulations. Contact your state Department of Health for compliance information.
Page 7: Pre-Installation Check
Control Panel Orientation The control panel on the PC-1000 and the PC-1000/Laser 1000 is mounted directly on the side of the machine and requires no separate installation, wiring, or mounting. Although the control panel is mounted on the patient's left side from the factory, it can be easily relocated to the opposite side during installation.
Page 8: Pc-1000 Components
PC-1000 Components PC-1000 Top Cover Rotating Arm Temple Supports Forehead Support Cassette Sleeve Mirror Film Drum Tubehead kVp Setting Chinrest Knob Control Panel Handles Base © Copyright 2008 Panoramic Corporation...
Page 9: Pc-1000 Installation
Verify that the outlet is a 110 VAC grounded outlet. Remove Packaging and Shipping Restraints 1. Carefully remove all shipping packaging from the PC-1000, including the plastic wrap, cardboard, and wooden cover. Unpack the side and top covers shipped in the separate box.
Page 10: Install Side Covers
7. Route the power cord through the notches on the side of the control panel while placing the side cover over the standoffs. 8. Insert 3 allen head bolts into the holes in the side cover and tighten into the metal standoffs. © Copyright 2008 Panoramic Corporation...
Page 11: Install Film Drum Assembly
Note: The ﬁ lm drum will rotate with increased friction after the ﬁ lm drum knob is tightened. Manual rotation, while the knob is tight, should be avoided to prevent abnormal wear. © Copyright 2008 Panoramic Corporation...
Page 12: Install Tubehead Assembly
Level Machine With a level on the underside of the main overhead chassis, level the machine in all directions using the 4 four adjustable feet under the base. © Copyright 2008 Panoramic Corporation...
Page 13: Perform Ma Calibration
B. Adjust P1 counterclockwise (CCW) to decrease the mA until the milliammeter shows 6.0 mA ± .05 mA. Note: Contact Panoramic Corporation if the mA cannot be set to 6.0 mA ± .05 mA. 10. Disconnect the milliammeter. 11. Reconnect the yellow wire, 1-pin molex connectors.
Page 14: Perform Pulse Count Calibration
B. Adjust R57 clockwise (CW) to decrease the pulses and repeat the test until the pulse ± 10 counter shows 720 pulses pulses. 10. Disconnect the pulse counter. 11. Reconnect the blue wire, 1-pin molex © Copyright 2008 Panoramic Corporation...
Page 15 12 seconds ± .5 seconds. B. Adjust R57 clockwise (CW) to decrease the time and repeat the test until the stopwatch shows that the exposure is 12 seconds ± .5 seconds. © Copyright 2008 Panoramic Corporation...
Page 16: Perform X-Ray Beam Alignment
L1 pointer. 13. Depress the exposure switch for the entire 12 second exposure. 14. Process the ﬁ lm to verify proper alignment. The ﬁ lm should be black with clear edges. © Copyright 2008 Panoramic Corporation...
Page 17: Install Top And Rear Covers
4. Place the cover on the rear of the machine and install the 3 screws. Complete Installation 1. Verify all steps have been completed. 2. Refer to the PC-1000/Laser 1000 User Manual and train the staff thoroughly. 3. Complete the Panoramic Corporation Installation Report and the FDA 2579 paperwork and distribute accordingly.
Page 18: Pc-1000/Laser 1000 Components
Rare Earth Screens And Film LASER 1000 Patient Size: Lateral AP-PA Small Child .5-1.0 .8-1.5 .6-1.5 1.0-2.5 Large Child Average Adult .8-2.0 1.5-3.5 Large Adult 1.0-2.5 2.5-4.0 Ear Posts Nasion Support Ear Rings Ear Rods Film Cassette © Copyright 2008 Panoramic Corporation...
Page 19: Pc-1000/Laser 1000 Installation
Verify that the outlet is a 110 VAC grounded outlet. Remove Packaging and Shipping Restraints 1. Carefully remove all shipping packaging from the PC-1000/Laser 1000, including the plastic wrap, cardboard, and wooden cover. Unpack the side and top covers, and the cephalometric arm shipped in the separate box.
Page 20: Install Side Covers
7. Route the power cord through the notches on the side of the control panel while placing the side cover over the standoffs. 8. Insert 3 allen head bolts into the holes in the side cover and tighten into the metal standoffs. © Copyright 2008 Panoramic Corporation...
Page 21: Install Film Drum Assembly
Note: The ﬁ lm drum will rotate with increased friction after the ﬁ lm drum knob is tightened. Manual rotation, while the knob is tight, should be avoided to prevent abnormal wear. © Copyright 2008 Panoramic Corporation...
Page 22: Install Tubehead Assembly
Level Machine With a level on the underside of the main overhead chassis, level the machine in all directions using the 4 four adjustable feet under © Copyright 2008 Panoramic Corporation...
Page 23: Install Cephalometric Arm
2 allen bolts and lockwashers provided. 2. Slide the head positioner onto the 2 chrome mounting tubes. 3. Tighten the 2 allen bolts on the top rear of the head positioner. © Copyright 2008 Panoramic Corporation...
Page 24: Perform Ma Calibration
(CW) as far as possible. 9. Locate power resistor R2 on the outside edge of the aluminum chassis. CAUTION: X-rays will be emitted when the exposure switch is depressed. 10. Depress the exposure switch. © Copyright 2008 Panoramic Corporation...
Page 25 B. Adjust P1 counterclockwise (CCW) to decrease the mA and repeat the test until the milliammeter shows 6.0 mA ± .05 mA. Note: Contact Panoramic Corporation if the mA cannot be set to 6.0 mA ± .05 mA. 17. Disconnect the milliammeter.
Page 26: Perform Pulse Count Calibration
11. The pulse counter should show 24 pulses ± 1 pulse. If it does not: A. Adjust R11 clockwise (CW) to increase the pulses and repeat the test until the pulse counter shows 24 pulses ± 1 pulse. © Copyright 2008 Panoramic Corporation...
Page 27 14. Using the function switch on the control panel, select PANORAMIC L or PANORAMIC R. 15. Using the kVp setting knob on the control panel, set the kVp meter to 80 kVp on the PANORAMIC scale.
Page 28: Perform Panoramic X-Ray Beam Alignment
90 kVp on the PANORAMIC scale. 4. Slide the lever in the collimator assembly on the front of the tubehead to the PANORAMIC position. NOTE: If the collimator is NOT ﬁ rmly seated in its locking notch: a.
Page 29: Remove Soft Tissue Shields
PC-1000/Laser 1000 Installation Remove Soft Tissue Shields The PC-1000/Laser 1000 is shipped with 2 soft tissue shields installed on the lateral collimator on the front of the tubehead. The purpose of a soft tissue shield is to gradually ﬁ lter the X-rays at the front edge of the cassette to allow the soft tissue, i.e.
Page 30 13. Reposition the cassette in the cassette holder HORIZONTALLY so that the inscribed lines on the front of the cassette are centered directly behind the closest ear rod (same position as before). © Copyright 2008 Panoramic Corporation...
Page 31 NOTE: If the collimator is NOT ﬁ rmly seated in its locking notch: a. the alignment laser will not ﬁ re b. when the exposure switch is depressed, the machine will beep rapidly, but no radiation will be emitted © Copyright 2008 Panoramic Corporation...
Page 32 ﬁ lm. Load the cassette again with cephalometric ﬁ lm for another test exposure. 31. Reposition the cassette in the cassette holder VERTICALLY so that the inscribed lines on the front of the cassette are © Copyright 2008 Panoramic Corporation...
Page 33 ﬁ lm (steps 30-34). 38. When the exposure is properly centered within the cephalometric ﬁ lm, place a permanent head decal upright where the laser beam now strikes the cassette. © Copyright 2008 Panoramic Corporation...
Page 34: Perform Ear Rod Alignment
8. Remove the locking pin in the top of the cephalostat head positioner and rotate the ear rods to approximately 45°. This will allow the laser alignment beam to strike the cassette. © Copyright 2008 Panoramic Corporation...
Page 35 16. Continue to adjust the cephalostat head positioner and chrome mounting tubes until the smaller ear ring is centered vertically inside the larger ear ring (steps 12-15). Note: Contact Panoramic Corporation if the ear rings cannot be centered vertically. © Copyright 2008 Panoramic Corporation...
Page 36 (CW). Tighten the 4 allen bolts. 22. Continue to adjust the cephalostat head positioner until the smaller ear ring is centered horizontally inside the larger ear ring (steps 18-21). Note: Contact Panoramic Corporation if the ear © Copyright 2008 Panoramic Corporation...
Page 37: Install Soft Tissue Shield
Ensure that the wiring on the control panel side is properly routed. 3. Install the 6 screws on the underside of the top cover. 4. Place the cover on the rear of the machine and install the 3 screws. © Copyright 2008 Panoramic Corporation...
Page 38: Complete Installation
PC-1000/Laser 1000 Installation Complete Installation 1. Verify all steps have been completed. 2. Refer to the PC-1000/Laser 1000 User Manual and train the staff thoroughly. 3. Complete the Panoramic Corporation Installation Report and the FDA 2579 paperwork and distribute accordingly.
Page 40: Remote Switch Installation
7. Connect the remote switch to the other end of the low-voltage wire, previously installed by an electrician, at the remote location. 8. Mount the faceplate on the remaining electrical box. 9. Power the PC-1000 on and verify that the remote switch functions properly. © Copyright 2008 Panoramic Corporation...
Page 41: Screw Motor Height Limit
Screw Motor Assembly Height Limit The PC-1000 incorporates a height adjustment limit switch that will stop the machine from raising past a predetermined height. This limit height, factory set at approximately 92", can be adjusted for low ceilings in 3" increments down to approximately 83".
Page 42: Screw Motor Assembly Exchange
Screw Motor Assembly Exchange 1. Using the UP/DOWN switch on the chinrest arm, lower the PC-1000 to its lowest position. 2. Power the PC-1000 off. S0102 3. Remove the 6 screws on the underside of the top cover and remove the top cover. Ensure that the wiring on the control panel side is not damaged when removing the top cover.
Page 43 14. Hinge the aluminum chassis back down into position, but do not reinstall the mounting screws, yet. 15. Power the PC-1000 on and verify that the new screw motor assembly is working properly. S0107 16. Reinstall the 4 screws on the aluminum chassis in the overhead.
Page 44: Panoramic Radiography
Panoramic Radiography Panoramic Radiography has been in use for over 30 years. In panoramic radiography, the X-ray source and ﬁ lm rotate around the patient's head at the same speed. Simultaneously, the ﬁ lm rotates about its own axis. X-rays...
Page 45: Darkroom Procedures
80º F 26.5º C 4 min 85º F 29.5º C 85º F 29.5º C 85º F 29.5º C Note: Extraoral ﬁ lm requires more frequent solution replenishment than intraoral ﬁ lm. One ounce of chemicals are typically required for replenishment for every 75 intraoral, 3 panoramic, or 2 cephalometric ﬁ lms.
Page 46: Darkroom Light Leak Test
To ﬁ nd the light leak, turn all of the lights off in the darkroom and inspect the darkroom for cracks around the door and ceiling tiles. Indicator lights on equipment, such as stereos, and improper safelights can also cause fogging. Turn off all unnecessary equipment and the safelight and try this test again. Appendix © Copyright 2008 Panoramic Corporation...
Page 47: Loading The Panoramic Cassette
Open the screens on the counter and place a sheet of panoramic ﬁ lm on top of one of the screens. Close the screens and slowly slide them back into the cassette sleeve.
Page 48: Maintenance Schedule
7. Darkroom a. lighttight b. no light sources other than GBX-2 or equivalent (radios, clocks, etc.) c. timer/thermometer working properly Check all parts of the PC-1000 for any physical damage that could affect radiation safety. Appendix © Copyright 2008 Panoramic Corporation...
Page 49 0.4 - 2.0 Sec. 115V 50/60Hz 0.5A Continuous RADIATION RESET POWER 10.0A Momentary 10 A WARNING: THIS X-RAY UNIT MAY BE DANGEROUS TO PATIENT AND OPERATOR UNLESS SAFE EXPOSURE AND OPERATING INSTRUCTIONS ARE OBSERVED Control Panel Appendix © Copyright 2008 Panoramic Corporation...
Page 50: Pc-1000/Laser 1000 Labeling
POWER 10.0A Momentary CEPHALOMETRIC EXPOSURE TIME & KVP CHART 10mA Recommended Times for Rare Earth Screens & Film Panoramic Corporation ® May use temple support KVP settings from Panoramic 10 A SECONDS Patient Size KVP LATERAL AP-PA LASER 1000 WARNING...
Page 51: Pc-1000/Laser 1000 Specifi Cations
PC-1000/Laser 1000 Speciﬁ cations Tube Housing Thermal Characteristics Tube Maximum Current 60 kV 70 kV 80 kV 50 kV 90 kV 100 kV 0.2 0.3 0.5 0.7 1.0 2.0 3.0 5.0 7.0 10.0 Time in seconds Time in hours 1 kJ=1400 H.U.
Page 52 PC-1000/Laser 1000 Speciﬁ cations Power Requirements The PC-1000 and PC-1000/Laser 1000 requires line voltage from 105 to 125 VAC, no load at 5% or better line regulation and draws 12 A under worst case conditions. The total power required is 1.5 kVa.
Page 53 34 mA Average Operating Voltage 0.75 VDC Maximum Average Radiant Power 0.2 mW Maximum Peak Radiant Power < 1 mW Beam Divergence 0.9 mRadian Beam Diameter 1.8 mm Emission Duration Operator-controlled by a momentary switch Appendix © Copyright 2008 Panoramic Corporation...
Page 54 42" 48" W x 48" D x 91" H 32" PC-1000 PC-1000 The PC-1000 weighs approximately 485 pounds 91" Maximum and is freestanding, requiring no extra support in 58" Minimum the wall or ﬂ oor. The factory conﬁ guration is shipped with the control panel mounted on the patient's left side, unless speciﬁ...
Page 55: Pc-1000/Laser 1000 Space Requirements
1.0-2.5 2.5-4.0 91" Maximum 58" Minimum The PC-1000/Laser 1000 weighs approximately 515 pounds and is freestanding, requiring no extra support in the wall or ﬂ oor. The factory conﬁ guration is shipped with the control panel mounted on the patient's left side and the cephalometric arm mounted on the patient's right side, unless speciﬁ...
Page 57 Tubehead/Yoke Assembly 800732-1 Film Drum Shield Assembly 800725-1 Chinrest Arm Assembly 2-419340 Head Support Assembly 800735-1 Control Panel Assembly, PC-1000 10 800735-2 Control Panel Assembly, Laser 1000 11 800749-1 Electronics Assembly 12 800741 Screw Motor Assembly 13 800655-1 Belt Drive Assembly...
Page 59 Base Assembly 300521-1 Base Weldment 318555-2 Tread, Foot 229847-2 Assembly, Leveling Foot 2-229846 Screw, Leveling Foot 1-229845 Pad, Leveling Foot 13-52922 Truarc Retaining Ring Appendix © Copyright 2008 Panoramic Corporation...
Page 61 Main Chassis Assembly 800742-1 Outer Post Weldment 318560-1 Bearing Mounting Block Assembly 1-229959 Bearing Mounting Block 229098-4 Washer, Special 2-229065 Bearing, Ball 7-52482 Ring, Retaining 800728-1 Switch/Harness Up/Down Limit 800743-1 Inner Post Weldment 1-229955 Guide Rail Appendix © Copyright 2008 Panoramic Corporation...
Page 63 317905-1 Chinrest, Black, Removable 1-229057 Chinrest, Clear, Endentulous 10 01-02472 Bite Guide, Disposable 11 18-52750 S.H.C.S 8-32X5/8 12 300452 Cover, Chinrest Arm 13 229988-7 6-32X1/4 BHCS 14 300453-1 Handle 15 229988-4 HBCS 1/4-20X1 Long Appendix © Copyright 2008 Panoramic Corporation...
Page 65 #10-32 1/2" Set Screw (supplied with Knob, Head Support) 37 638001 Foam Tape 3/16X3/8 39 300468-1 Knob, Head Support 40 674008-2 Decal, kVp Left Side 41 674008-1 Decal, kVp Right Side 42 800770-1 Head Support Block Assembly Appendix © Copyright 2008 Panoramic Corporation...
Page 67 Velcro Hook Side, Shaft 12 300467-1 Knob, Film Drum 13 12-50621 Washer 9/16" 14 1-229117 Nut, Special 15 226-50752 Set Screw #6-32X7/16L Hex 16 300455-1 Pointer, Film Drum 17 229988-5 BHMS #6-32X1/2 18 300461-1 Decal, Pointer Alignment Appendix © Copyright 2008 Panoramic Corporation...
Page 69 229576-1 Roller Assembly 7-52482 Ring, Retaining 10 800683-1 Drive Motor Assembly 11 550002-23 #10-32X1/2 SOC HD CAP Screw 12 5-50622 Washer, Flat #10 13 10-50642 Lockwasher, Split #10 14 550003 #10-32X1-3/4 SHCS Full Thread Appendix © Copyright 2008 Panoramic Corporation...
Page 71 Actuator, Switch 44 95-318027 P.H.S. 8-32 5/8" Long 45 300331 V-Belt, Drive 46 300327-1 Pulley, Motor Drive 47 52-50720 1/4-20X1/4 Soc Set Cup 48 14-50622 Washer, Flat, 3/4 Std 49 550002-22 10-32X3/8 SHCS B.B. Appendix © Copyright 2008 Panoramic Corporation...
Page 73 17 550015-62 Screw, Ph Phil, #6-32X3/4 18 6-50642 Lockwasher, Split #6 19 3-50212 Nut, Hex #6-32 20 542004-0209 Shim, .010THK, .5ID, .75OD 21 542004-0211 Shim, .015THK, .5ID, .75OD 22 542004-0212 Shim, .020THK, .5ID, .75OD Appendix © Copyright 2008 Panoramic Corporation...
Page 75 27 300224-3 Screw, Slotted Dog 131-18x0.15A Screw, 5/16-18x5/32 AHHL (included only with Cephalometric units) 28 300470-1 Knob, Horizontal Rotation 29 126-50750 5/16-18X7/16 Soc Set Flat 30 1-229064 Roller Bearings 31 317923 Housing Bearing Film Holder Appendix © Copyright 2008 Panoramic Corporation...
Page 77 300473-1 Bracket, Angle 1-131790 Pin Clevis 300466-1 Mounting, Cylindrical 300522-1 Plate, Screw Drive Mounting 550012-6 Nut, Hex, Nylon Lock, 1/4-20 660000-1 Cable Tie 300507-1 Capacitor, Motor 10 131749-1 Pin Cotter 11 800744-1 Nut Assembly Appendix © Copyright 2008 Panoramic Corporation...
Page 79 Knob, Ceph 31 131720-2 Collimator, 0.030X0.845 32 800753-1 Aperture/Collimator Assembly 33 133582-2 Decal, Collimator 37 318003-2 X-ray Tube Wiring Assembly 38 624014-9 Terminal, Receptacle 39 300230 Cover, Tubehead, Front 40 419527 Cover, Tubehead, Back Appendix © Copyright 2008 Panoramic Corporation...
Page 81 Resistor, 75 Ohm, 50W, WW Var 2-131747 Resistor, 100 Ohm, 50W, WW Var 10 1-131748 Resistor, 5 Ohm, 25W 11 1-229174 Rheostat 12 1-131787 Knob, Rheostat 13 542006-14 Spacer, #6X1/2 Round 14 5-226396 Diode, 40HF10 Appendix © Copyright 2008 Panoramic Corporation...
Page 83 Cable Spiral Assembly 15 1-229941 Indicator, Red 16 1-229940 Switch, Reset, Blue 17 2-229940 Switch, Main, Yellow 18 300460-1 Decal, Control Panel, PC-1000 19 300460-2 Decal, Control Panel, Laser 1000 20 1-229184 Relay, Power 21 800736-1 Timer/Rotary Switch Assembly 22 800768-1...
Page 85 Snap Button, F-Flat Type 10 4-50642 Split Lockwasher #4 11 21-318027 PHMS, 4-40 1/4" Long 12 300508-1 Switch, Subminature 13 172-318027 PHMS #2-56X0.50 14 542006-2 Spacer 15 800720-1 PCB Assembly, Ceph Laser 16 2-50212 Hex Nut #4-40 Appendix © Copyright 2008 Panoramic Corporation...
Page 87 Angle, Mount-Casting 600014-1 Electromagnet, 24VDC, 200# 154-318028 PFHS 1/4-20X1/2 9-550002-53 5/16X24X1 1/2 SHCPSC 300413-1 Attachment Plate 9-07-50362 1/4X20X1 1/2 HexHd CP Screw 9-1-50302 1/4X20 Hex Nut 9-550014-9 8-32X1 Thumbscrew Common Knurled 4-50212 8-32 Hex Nut Appendix © Copyright 2008 Panoramic Corporation...
