Summary of Contents for SolarPath SPFS Series

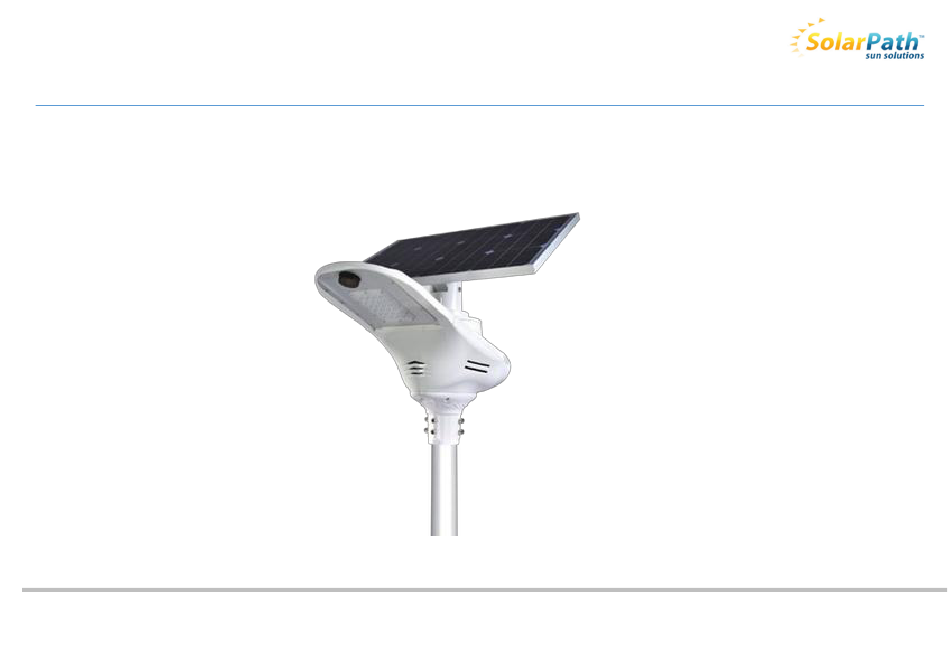

- Page 1 SPFS SERIES Installation Manual 123 Town Square Pl., #333 Tel. +1.201.490.4499 Jersey City, NJ 07310 www.solarpathusa.com...
- Page 2 Operating Conditions & Limits: Product Maintenance: Product Manual The SPFS series is extremely versatile, robust Solar Street Light. This product is rated as IP65 protection grade. Do It features all of its components fully integrated within an attractive and To ensure effective solar light absorbance, clean not exceed the stated operating limits.
- Page 3 Packing List When open the package please confirm that all parts are received, the parts are listed below: Parts Functions Absorbs and converts solar energy into Solar panel electricity Bracket Fixed the solar panel Support Connect device between solar panel and pole LED light Lighting the area Microwave motion sensor...
- Page 4 Microwave sensor works by emitting high frequency electric wave to detect objects movement, such cases above may result in not working well. 5 working modes can be chosen from: Why choose microwave for outdoor lighting? ON: Instant light ON It can get through glass, wood, plastic and other non-metallic object, so it can be installed inside and there is no influence on lamp`s appearance.
- Page 5 Factory settings and motion detection functions: Pole: The factory setting of the SPFS series switch is light-controlled (at a threshold of 30 Lux). The Recommend use the upper diameter of pole: 2.3-2.9 in (see figure 1) lamp automatically lights up when it is dark and turns off when there is light or at dawn. At night, when no one is around, it operates under power saving mode.
- Page 6 2.Fix the support on bracket with 4pcs M8x10mm screws Figure 3 Install the solar lamp to the arm of pole, Connect the waterproof connector between solar panel and lamp.
- Page 7 Process...
