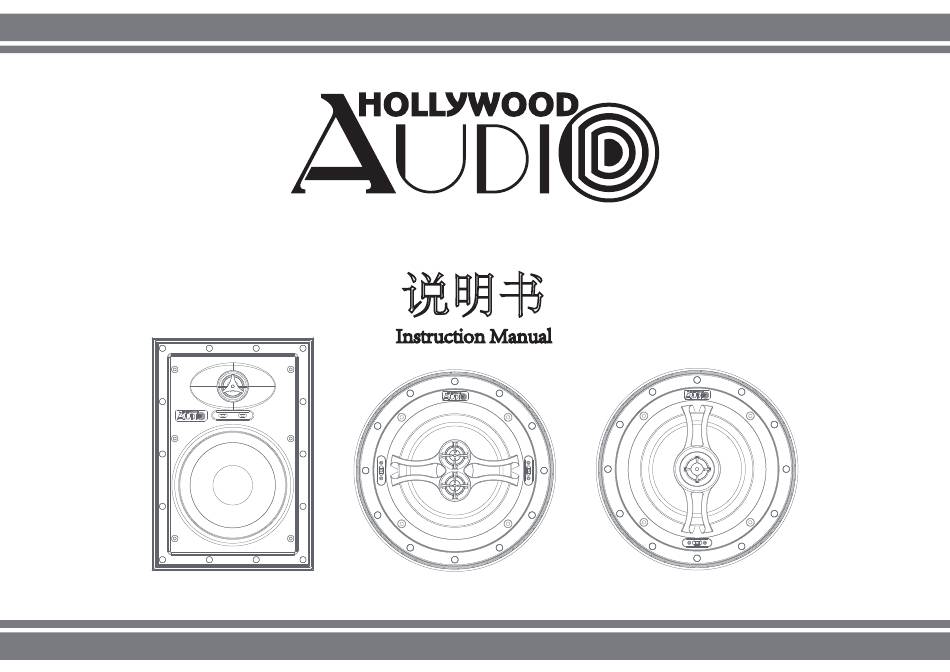

- Page 1 说明书 Instruction Manual HW100 HW300 HW200...
- Page 2 Installation steps(安装步骤) Use the enclosed installation template to ascertain the exact size of the wall cutout. The inner edge indicates the size of the installation opening. 用挖孔板在墙面/天花板上画好开孔尺寸。 Now hollow out an appropriate installation opening in the wall/ceiling. When laying loudspeaker cable from amplifier to installation point, be sure that the cable ends about 30 cm (12”) beyond the wall cutout.
- Page 3 Please connect the speaker cable to the screw clamps. Ensure that the polarity is correct. 请将喇叭线连接到端子中，请注意极性。 If the red mounting tabs are in a horizontal position and the screws firmly screwded in, they are ready for installation. 红色安装脚扣被螺丝锁紧在水平位置时， 即可进行安装。...
- Page 4 Place the loudspeaker system in the installation hole and tighten the screws, so that the speaker is fixed in the installation opening. Important: To prevent damage to the mounting tab, do not twist screws too tightly. 将喇叭放入安装孔锁紧螺丝，喇叭便可固定 在墙面/天花板上。 注：为了确保脚扣不受损，请不要用太大扭力。 In order to fine-tune the loudspeaker system to produce an optimal sound for the location, it is possible to position the tweeter in such a way as to adjust the dispersion angle.
- Page 5 On the front of the loudspeaker system there is a switch marked -/+ for adjusting the tweeter level. For linear reproduction move the -2 dB ( move the switch to the left) or increased by +2 dB (move the switch to the right) . 喇叭面板上有高音调整开关;设定在“-”为-2dB，...
- Page 6 HW300 6.5"Aluminum 60Hz-20KHz 87dB 8 ohm Reference Dome Dimension Depth Cut Out Net Weight 9.7” 3.83” 8.1” 1.65KG 9.7” 3.83” 8.1” 1.75KG 12.3”X8.6” 3.19” 10.7”X6.9” 1.8KG Hollywood Audio, Inc. 7985 Santa Monica Blvd.Suite 109-228 West Hollywood, CA 90046 USA www.hollywood-audio.com...
- Page 7 天花音响 HW300 墙壁音响 6.5寸铝盆架 60赫兹-20千赫兹 40瓦 87分贝 8 欧姆 可摇头1寸铝膜高音 尺寸 深度 外径 净重 9.7寸 3.83寸 8.1寸 1.65公斤 9.7寸 3.83寸 8.1寸 1.75公斤 12.3寸X8.6寸 3.19寸 10.7寸X6.9寸 1.8公斤 Hollywood Audio, Inc. 7985 Santa Monica Blvd.Suite 109-228 West Hollywood, CA 90046 USA www.hollywood-audio.com...
