INSTRUCTION MANUAL
BDPM-20

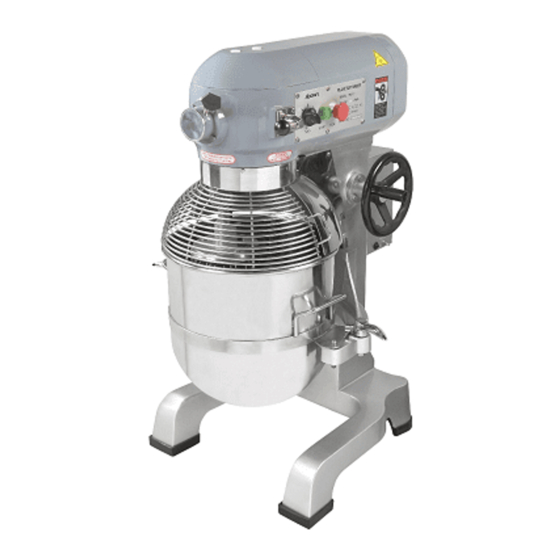

20 Qt. Planetary Mixer
This manual contains important information regarding your Black Diamond unit. Please read this
manual thoroughly prior to equipment set-up, operation and maintenance. Failure to comply
with regular maintenance guidelines outlined in this manual may void the warranty.
Advertisement
Related Manuals for Black Diamond Equipment BDPM-20
Summary of Contents for Black Diamond Equipment BDPM-20
- Page 1 INSTRUCTION MANUAL BDPM-20 20 Qt. Planetary Mixer This manual contains important information regarding your Black Diamond unit. Please read this manual thoroughly prior to equipment set-up, operation and maintenance. Failure to comply with regular maintenance guidelines outlined in this manual may void the warranty.
- Page 2 WARNINGS • Do not immerse unit, cord or plug in liquid at any time • Unplug cord from outlet when not in use and before cleaning • Plug only into a 3-hole grounded electrical outlet of appropriate voltage • Do not operate unattended •...
-
Page 3: Mixer Capacity Chart
MIXER CAPACITY CHART Max Bowl Product Agitator Speed Capacity (20 qt) Bread and roll dough - 60% AR Dough hook 1st only 25 lbs Heavy bread dough - 55% AR Dough hook 1st only 15 lbs Pasta Basic Egg Noodle (max, mix time 5 min) Dough hook 1st only 5 lbs... - Page 4 Helpful measurements for calculating the correct size mixer for your application 8.3 lbs = 1 gallon of water - 2.08 lbs = 1 Quart When mixing dough (Pizza, bread or bagels), remember to check your “AR” absorption ratio. Absorption ratio is water weight divided by flour weight.
-
Page 5: Troubleshooting
CLEANING - NOTE: To maintain cleanliness and increase service life, this item should be cleaned daily. Do not immerse the unit in water or any other liquid, if liquid enters the electrical compartment it may cause a short circuit or electrical shock. 1. - Page 6 Wiring Diagram for the Planetary Mixer September 2018...
- Page 7 Parts Diagram and Replacement Parts for the Planetary Mixer September 2018...
- Page 8 Replacement Parts for the Planetary Mixer Replacement Parts for the Planetary Mixer Drawing Drawing Part Description Part Description Number Number Button-headed Screw Spring Washer Motor Rotor Flat Washer Flat Key Skeleton Oil Seal Bearing Shaft Circlip Skeleton Oil Seal Bearing Motor Threaded Rod Upper Sleeve For Lower Bearging Motor Stator...
- Page 9 Replacement Parts for the Planetary Mixer Replacement Parts for the Planetary Mixer Drawing Part Description Number Base Locking Sleeve Inner Hexagon Socket Head Cap Screw Reversal Handle Support Bar Pin With Hole Ends Splitpin Lifting Up and Down Rod Enlarged Flat Washer Compression Spring Passive Bevel Gear Bearing...
- Page 10 ACE Equipment One Year Limited Warranty ACE warrants its equipment against defects in materials and workmanship, subject to the following conditions: ACE Equipment is warranted for one year, effective from the date of purchase by the original owner. A copy of the original receipt or other proof of purchase is required to obtain warranty coverage.
