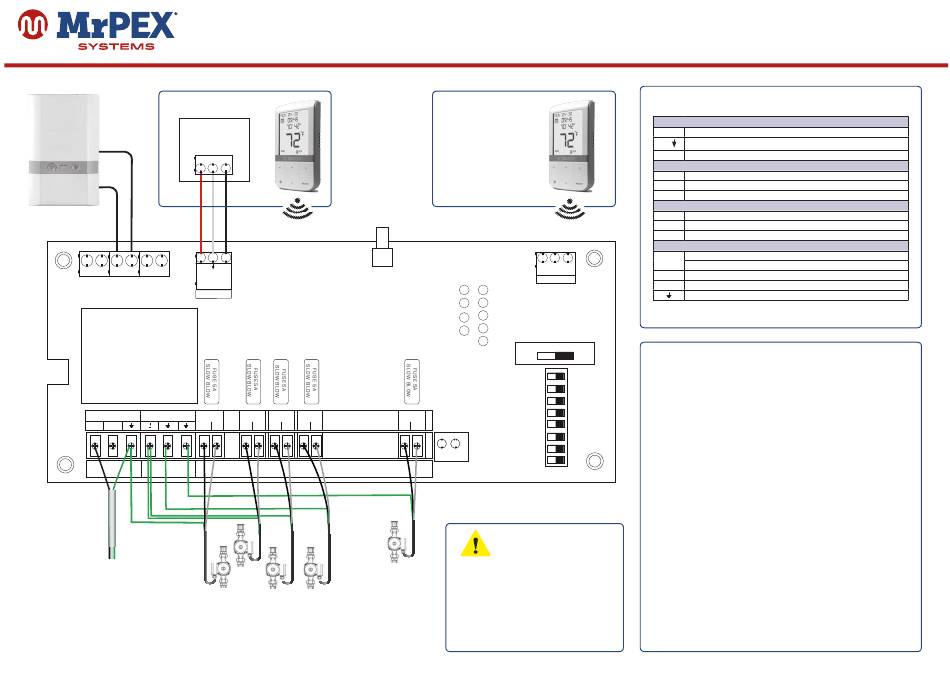

MrPEX 5310104 Wiring Manual

Group 1 Thermostats
G1 (1-2)
Domestic Hot Water/
Zone
Group 1 Thermostats

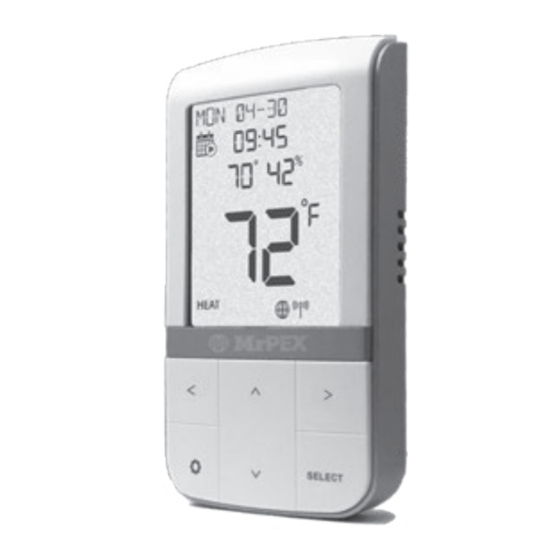

24VAC Thermostat
G1 (1-2)
R W C
BOILER
H N
R W C
AUX XX ZONE1 E/S
24V-T-STAT 1
TRANSFORMER
PRIORITY
POWER IN GROUND
PUMP1
L N L N
120 VAC GROUND
120VAC
OUTPUT
120VAC TO PUMP
(Cables to be supplied by installer)
EXTERNAL ANTENNA
Network Status
PRIMARY
PUMP2 PUMP3 PUMP4
PUMP
L N L N L N L N
120 VAC
OUTPUT
WIRELESS 4 ZONE PUMP CONTROLLER
5310104
Group 2 thermostats
G2 (3-4)
C1 C2 GND
COMMS
POWER PRIORITY
G1 ZONE 1
ZONE 2
G2
ZONE 3
ZONE 4
Antenna Selection
INT EXT
MASTER SLAVE
PRIORITY ON OFF
EXERCISE ON OFF
PRIMARY STATUS DURING PRIORITY ON OFF
PURGE ON OFF
WIRED WIRELESS
ZC N
Warning
• This product must be installed by qualified
personnel and the installation must
comply with the codes and regulations
applicable to the municipality where this
product is installed. Failure to do so could
lead to injury, death, or prosecution.
• Always disconnect the AC power before
installing or working on AC power
components.
Wiring Guide

Electrical Connections

24VAC THERMOSTAT CONNECTIONS
R / H 24VAC
W / Call for Heat
C / N 24VAC common
DRY CONTACTS (RATED 120VAC, MAX.2A)
AUX Auxiliary
XX Active Pump(s)
Zone1 E/S Local Priority
MASTER/SLAVE COMMUNICATION LINES (5V)
C1 Master Priority
C2 Slave Active
GND Communication Ground 120VAC Connections
120VAC CONNECTIONS
AC Line In (max. 20A)
L
Zone Pump Line Out (max. 1/6 HP)
N AC Neutral
ZC Zone control/Priority Input(120VAC)
Earth Ground
Fuse: 5A slow blow, 5x15mm (2AG)
