REDATOM REDMC70DUAL Instruction Manual page 11

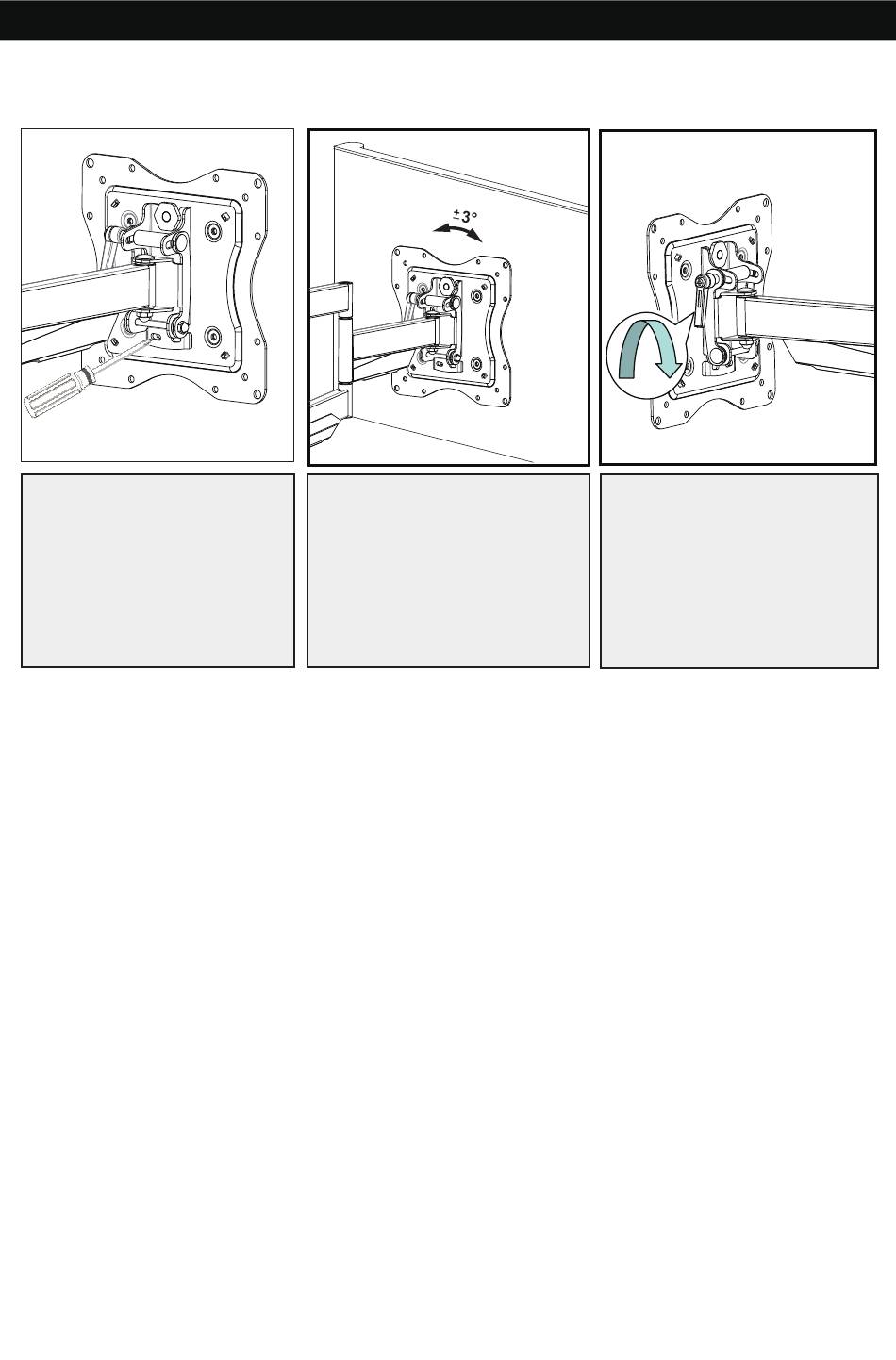

STEP 7- ADJUST TILT TENSION/ POST INSTALLATION LEVEL
Locking mechanism
Mecanismo de fijación
Mécanisme de verrouillage
Secure Monitor Plate to Arm
using 2 Phillips head screws
removed in step 1. Tighten
only to snug tension.
TV can be leveled (+/-3
degrees) as needed. If secu-
rity screws are tensioned
tight it will be difficult to
adjust leveling.
a) Rotate handle clockwise
as far as possible.
b) Pull handle to side lateral-
ly (against spring tension)
and rotate counter- clock-
wise as far as possible.
c) Repeat steps a) and b)
until TV holds desired tilt.
P 11
