8
7

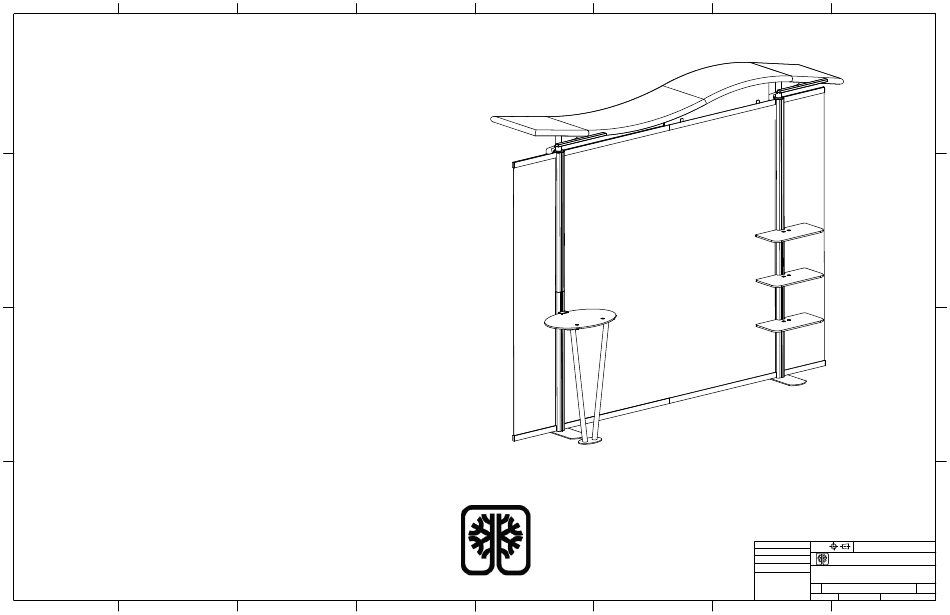

10 Ft. Timberline Modular Display
D
TL1002F-S
C
NOTE: UNLESS OTHERWISE SPECIFIED
1.
SETUP TIME PER 10FT. SECTION IS 2-3 HOURS WITH 2 PERSONS.
B
SET-UP MANUAL
A
8
7
6
5
6
5
4
3
4
3
2
1
- PROPRIETARY -
FINISH:
THIRD
THIS DOCUMENT AND DATA DISCLOSED HERIN OR HEREWITH IS
ANGLE
NOT TO BE REPRODUCED, USED, OR DISCLOSED IN WHOLE OR IN
MATERIAL:
PROJECTION
PART TO ANYONE WITHOUT PERMISSION OF NIEDO GROUP, INC.
5465 SW WESTERN AVE.
NIEDO GROUP, INC.
DIMENSIONS ARE IN MILLIMETERS
BEAVERTON, OR 97005
TOLERANCES
10 Ft. Timberline Modular Display
UNLESS OTHERWISE SPECIFIED
SET UP INSTRUCTIONS
SIZE
DWG. NO.
REV
B
-02
1
SHEET
SCALE:
NA
DO NOT SCALE DRAWING
2
1
D
C
B
A
Advertisement
Summary of Contents for Timberline TL1002F-S
- Page 1 10 Ft. Timberline Modular Display TL1002F-S NOTE: UNLESS OTHERWISE SPECIFIED SETUP TIME PER 10FT. SECTION IS 2-3 HOURS WITH 2 PERSONS. SET-UP MANUAL - PROPRIETARY - FINISH: THIRD THIS DOCUMENT AND DATA DISCLOSED HERIN OR HEREWITH IS ANGLE NOT TO BE REPRODUCED, USED, OR DISCLOSED IN WHOLE OR IN...
- Page 2 WAVE TOP GRAPHIC HEADER SUPPORT POST TABLE SHELF FEET 10 FT. TIMBERLINE MODULAR DISPLAY - PROPRIETARY - FINISH: THIRD THIS DOCUMENT AND DATA DISCLOSED HERIN OR HEREWITH IS ANGLE NOT TO BE REPRODUCED, USED, OR DISCLOSED IN WHOLE OR IN...
- Page 3 10 FT. TIMBERLINE MODULAR DISPLAY TL1002F-S ITEM NO. DESCRIPTION QTY. TIMBERLINE POST TIMBERLINE FOOT TOP SUPPORT POST TIMBERLINE TOP GRAPHIC HEADER TIMBERLINE OVERHEAD LAMP 15-3/4" HORIZONTAL BAR END PC. TIMBERLINE MOUNTED SHELF ASSEMBLY TIMBERLINE ACCESSORY TABLE GRAPHIC HEADER MOUNTING BRACKET...
- Page 4 10 FT. TIMBERLINE MODULAR DISPLAY TL1002F-S FOR ITEM #s PLEASE REFER TO ASSEMBLY DIAGRAM STEP 6 STEP 4 & 6 STEP 2 STEP 1 (GRAPHIC HEADER ATTACHMENT) INSTALL TIMBERLINE FEET ATTACH HEADER INTO STEP 5 WITH 4 SCREWS (ITEM #13)
- Page 5 10 FT. TIMBERLINE MODULAR DISPLAY TL1002F-S STEP 7 (GRAPHIC ATTACHMENT) THIS INSTRUCTION IS RELEVANT TO FRAME, END PANELS AND HORIZONTAL BARS. WHEN TOP AND BOTTOM HORIZONTAL SUPPORT BARS SLIDE GRAPHICS INTO TOP CHANNEL OF BOTTOM SLIDE GRAPHICS INTO BOTTOM CHANNEL OF TOP...
- Page 6 WAVE TOP SUPPORT POST (ITEM#3) IN THE BOTTOM SIDE, BE SURE TO FINGER TIGHTEN ONLY. WAVE TOP SUPPORT POST AND FRAME/SKIN ASSEMBLY MAY NOW BE INSERTED INTO THE TOP OF DESIGNATED TIMBERLINE POSTS (ITEM #1) FINGER TIGHTEN THIS SCREW ONLY...
- Page 7 INTERLOCK MECHANISM BRACKETS AS IN STEPS 4 & 6. BRACKETS SLIDE INTO THE CHANNEL TURN TO LOCK ON THE TIMBERLINE POST AND ARE REVERSE TO UNLOCK POSITIONED AS SHOWN. SLIDE THE METAL FUSION PANEL INTO THE BRACKETS AND FINGER TIGHTEN TIMBERLINE STRAIGHT END THE THUMB SCREWS.
- Page 8 10 FT. TIMBERLINE MODULAR DISPLAY DETAIL A TL1002F-S INTERLOCK MECHANISM TIMBERLINE POST TURN TO LOCK THREADED INSERT REVERSE TO UNLOCK WASHER KNURLED KNOB TIMBERLINE POST Z-4400 TIMBERLINE EXTRUSION POST THE SLAT WALL WOOD ASSEMBLY IS THE SLAT WALL WING ASSEMBLY...
- Page 9 10 FT. TIMBERLINE MODULAR DISPLAY TL1002F-S HOOK IS FACING TOWARDS REAR DETAIL -A- OVERHEAD LAMPS TIMBERLINE SHELVES TIMBERLINE TABLE ATTACH BRACKETS INTO SLIDE THE BASE ADAPTER INTO THE BOTTOM OF VERTICAL POSTS AND TIGHTEN. THE LAMP. THEN SLIDE THE LAMP INTO THE TOP (ALL HARDWARE IS PROVIDED) GROOVE OF THE HORIZONTAL SUPPORT.
