9485/9487 DC Power Supply

If your 9485/9487 unit has a DC power supply installed, the information
in this document replaces the AC power supply information contained in
the 9485/9487 manual.

Product Overview

The DC power supply for 9485/9487 industrial computer accepts +24 VDC input
voltage for applications requiring DC input power. The factory-installed power sup-
ply module provides +5 V, +12 V, and -12 V outputs.

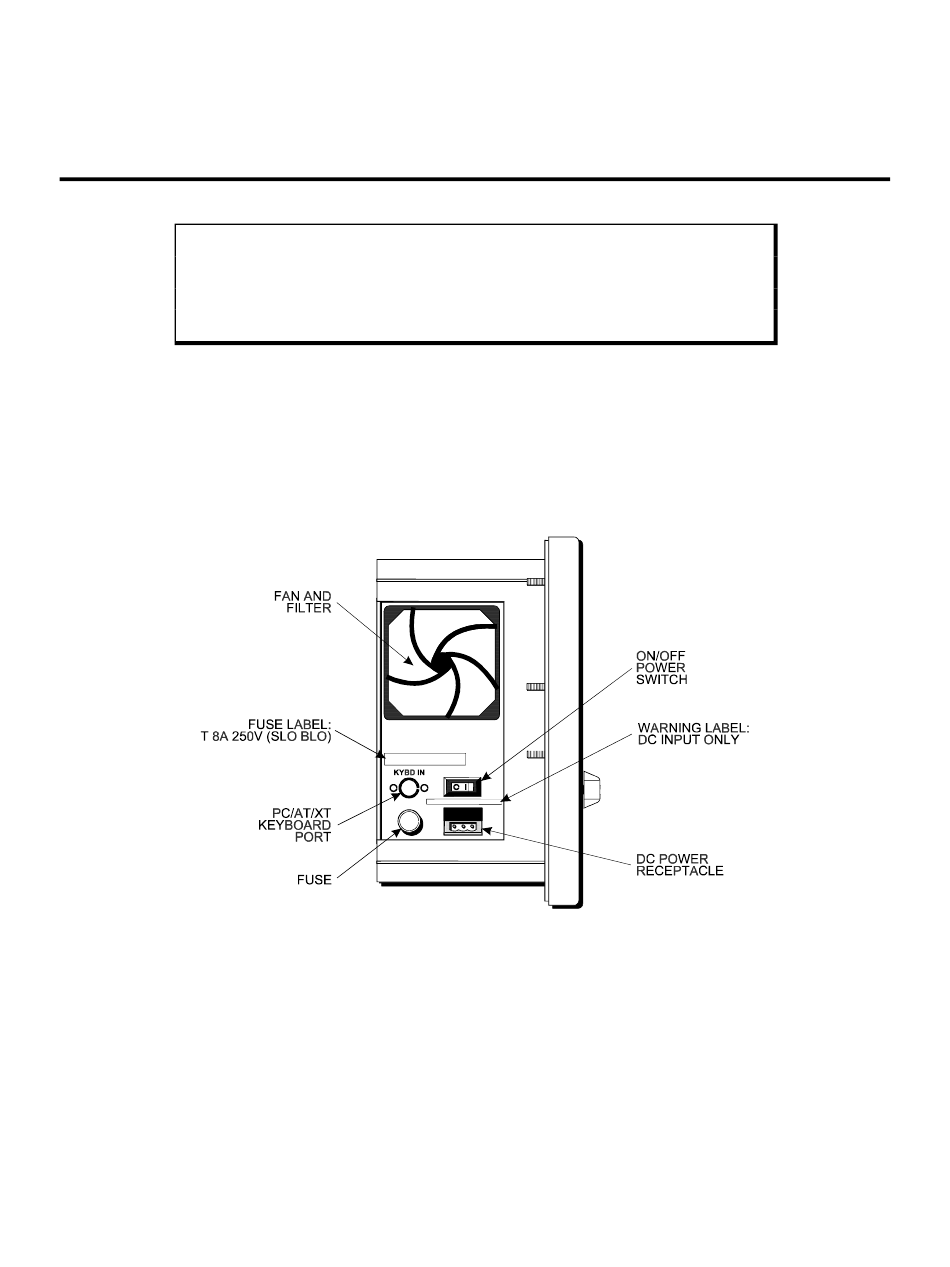

Figure 1 provides a side view of a 9485/9487 unit with a DC power supply installed.

Electrical Specifications

The electrical specifications for the 9485/9487 DC power supply are
•
20 - 25 VDC
•
25 W maximum
•
8 A maximum
Note
Figure 1. Internal View of 9485/9487
