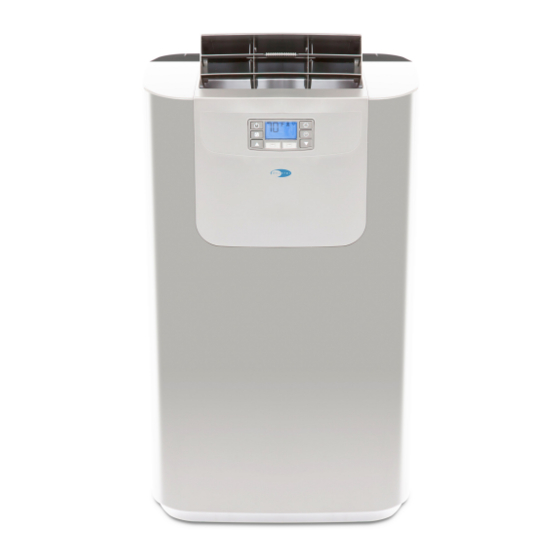

WHYNTER ELITE 12,000 BTU DUAL HOSE DIGITAL PORTABLE
AIR CONDITIONER WITH HEAT AND DRAIN PUMP
Model # : ARC-122DHP
INSTRUCTION MANUAL
Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before
using this product. Keep this manual in a safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARC-122DHP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Whynter Elite ARC-122DHP

  • Page 1 WHYNTER ELITE 12,000 BTU DUAL HOSE DIGITAL PORTABLE AIR CONDITIONER WITH HEAT AND DRAIN PUMP Model # : ARC-122DHP INSTRUCTION MANUAL Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE DISPOSAL INFORMATION SAFETY PRECAUTIONS INTRODUCTION / TECHNICAL DATA PARTS IDENTIFICATION 6 - 7 CONTROL PANEL INSTALLATION 9 - 10 OPERATION INSTRUCTIONS AND TIPS 11-13 REMOTE CONTROL CARE AND MAINTENANCE TROUBLESHOOTING 15-16 WARRANTY INFORMATION...
  • Page 3: Disposal Information

    DISPOSAL INFORMATION Thank you for choosing the Whynter 12,000 BTU Dual Hose Digital Portable Air Conditioner. Please follow the instructions provided in this user guide to obtain the very best performance from your portable air conditioner and take full advantage of the many features your portable air condi- tioner offers you.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY WARNING WHEN USING YOUR AIR CONDIITIONER, FOLLOW THESE BASIC PRECAUTIONS: Before the appliance is used, it must be properly positioned and installed as detailed in this manual.  Do not under any circumstances cut or remove the third (ground) prong from the power cord ...
  • Page 5: Introduction / Technical Data

    / server rooms, bedrooms, classrooms and garages / workshops. This Whynter ARC-122DHP portable air conditioner features an ECO-FRIENDLY CFC-free GREEN R-410A refrigerant and lead-free RoHS compliant components. Operationally, a dual hose portable air conditioner has two main advantages over a single hose unit.
  • Page 6: Parts Identification

    PARTS IDENTIFICATION Front Air Vent / Louvers Control Panel Handle Casters (four) Air Filter Air Intake Upper Drain Port Air Exhaust ( large hose) Air Intake (small hose) Built-in drain pump outlet Power Cord Lower Drain Port...
  • Page 7 PARTS IDENTIFICATION IMAGE ACCESSORY NAME QUANTITY Exhaust hose (large) 1 piece Intake hose (small) 1 piece Fixture 2 pieces Screws 8 pieces 1 Large Exhaust Hose Connector to Window 1 piece Kit with tab cut-outs 1 Large Slide Locking Exhaust Hose 1 piece Connector to unit 1 Small Slide Locking Intake Hose...
  • Page 8: Control Panel

    CONTROL PANEL LCD Display Power Button Mode Control Fan Speed Timer Button Button Timer / Temp Warning Light Set Control Indication symbols on LCD : Cooling mode High Fan speed Dehumidifying mode Medium Fan speed Fan only mode Low Fan speed Heating mode Display set temperature Warning Light and Stop display...
  • Page 9: Installation

    INSTALLATION WARNING: NEVER OPERATE THE AIR CONDITIONER WITHOUT THE AIR FILTER Your Whynter portable air conditioner is equipped with a wash- Fig. 1a able Pre-Filter and an Activated Carbon Filter. The washable Pre-Filter removes large particles such as dust, pet hair and dander. The Activated Carbon filter is designed to remove smoke and other odors.
  • Page 10 INSTALLATION Location The air conditioner should be placed on a hard and level surface strong enough to support its weight. The unit is equipped with caster wheels for portability. It should only be rolled on smooth, flat surfaces. Use caution when rolling on carpet surfaces.
  • Page 11: Operation Instructions And Tips

    OPERATION INSTRUCTIONS BEFORE USING YOUR APPLIANCE  Remove the exterior and interior packing  Before connecting the appliance to the power source, let it stand upright for approximately 4 hours. This will re- duce the possibility of a malfunction in the cooling system from handling during transportation SWITCHING ON/OFF THE AIR CONDITIONER The appliance can be switched ON or OFF by pressing the POWER button on the control panel or the ON/OFF but- ton on the remote control...
  • Page 12 OPERATION INSTRUCTIONS  The temperature setting range of this air conditioner is from 61F to 77F. To set the temperature, press the + or – buttons. Once the set temperature is achieved, the compressor and the fan will stop NOTE: This unit uses heat pump from heating and the heating mode does not work when temperature is below 45F.
  • Page 13 TIPS 1. Keep the exhaust hose as short and straight as possible The exhaust hose removes heat from the room. It should remain as short and straight as possible without sharp bends or twists to maximize efficiency. If the exhaust hose must be extended, do not exceed 9’. 2.
  • Page 14: Remote Control

    REMOTE CONTROL The portable air conditioner can be switched on by the remote control. To transmit signals from the remote con- trol to the air conditioner, point the front part of the remote handset towards the control panel on the air condi- tioner.
  • Page 15: Care And Maintenance

    CARE AND MAINTENANCE IMPORTANT:  Switch off the air conditioner and disconnect the plug from the power outlet  Drain water by removing the drain plug  Always transport the air conditioner in an upright position only CLEANING THE AIR FILTERS ...
  • Page 16: Troubleshooting

    TROUBLESHOOTING Many common portable air conditioner problems are easily resolved. Try the troubleshooting suggestions below to see if the problems can be resolved before having to contact the service department. Problem Possible Causes Solutions The portable air conditioner  Power failure / outage ...
  • Page 17: Warranty Information

    TROUBLESHOOTING Problem Possible Causes Solutions The unit has worked for a long  Windows or doors are open  Close all windows and doors time, but the room is not cold  There are too many people in the  You may need additional cooling or enough room another air conditioner...
  • Page 18 ONE YEAR LIMITED WARRANTY & THREE YEAR WARRANTY ON COMPRESSOR This WHYNTER product is warranted to the original owner, purchased from an authorized Whynter dealer within the 48 U.S. continental states, for one year from the original purchase date against defects in material and workmanship under normal residential usage.
