Mechanical Assembly - Homak First Watch HS30120100 Owner's Manual & Operating Instructions

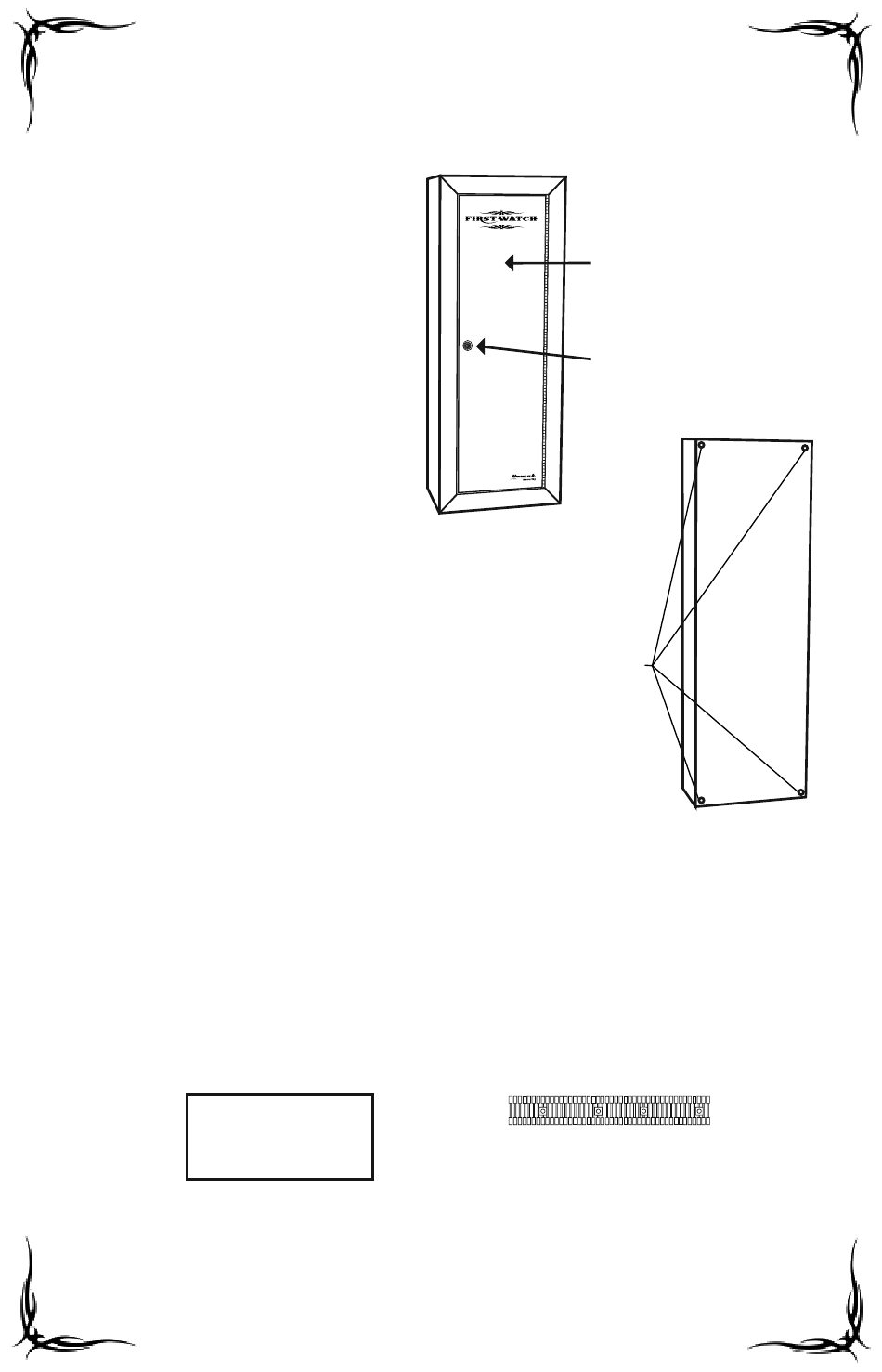

1. Install the cabinet
Locate the four washers and
screws. Place the cabinet in
a suitable location aligning
the holes on the back of the
cabinet with two studs in the
wall that are 16" apart.
Pre-drill the holes into the
studs before permanently
installing cabinet.
NOTE: This cabinet is not
designed to be used without
securing it to a wall or other
surface. It may tip over.
2. Foam Component
The foam part is shown below. The part has been designed to fi t into the
bottom of the cabinet. Carefully, remove the paper backing revealing the
adhesive backing and place neatly into the bottom of the cabinet. Once
the backing has been removed and the foam is attached, it can not be
removed without damage.
BOTTOM FLOOR

MECHANICAL ASSEMBLY

B
FOAM
- 3 -
Door
Lock Cylindar
Mounting Holes
C
BARREL REST
MOUNTING BAR
