uAvionix AV-Link EXP
Q U I C K S T A R T G U I D E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-Link EXP and is the answer not in the manual?

Questions and answers

Summary of Contents for uAvionix AV-Link EXP

  • Page 1 Brand Logo Specs (REV D) 20160329 Logo font: Helvetica Neue LT Std 75 Bold = PANTONE P 48-16 C (OR EQUIVALENT) = PANTONE P 179-11 C (OR EQUIVALENT) uAvionix AV-Link EXP Q U I C K S T A R T G U I D E...
  • Page 2 For the duration of the warranty period, uAvionix, at its sole option, will repair or replace any product which fails in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost.
  • Page 3 Installing AV-Link Attach AV-Link to AV-30 Attach the AV-Link to the back of the AV-30 by inserting the unit into the DB-15 connector on the back of the AV-30. Tighten Jack Screws (2x) Using a 3/16” nut driver, tighten the two [2] Jack Screws to 5 in-lbs max.
  • Page 4 Update AV-30 Software Enable Update Mode Power on AV-30 With AV-30 powered off, press and Apply power and release buttons hold both outer buttons. after 5 seconds. The screen will remain black. Connect PC via Wi-Fi Open Web Browser In a Web Browser, navigate to Connect a PC to the AV-Link Wi-Fi the AV-Link home page via the Network (AV_XXXX).
  • Page 5 Choose Update File Update Select Choose File, then select the downloaded AV-30 firmware. At the bottom of the page select AV Firmware Update Download Firmware: http://uavionix.com/downloads/ service_bulletins/displays/AV-30-E/2.0.3/UAV- 1004037-001-av30e-2_0_3-68867db.bin Start the Update Update Complete Verify Firmware Version Once the file has been selected,...
  • Page 6 Connect ADS-B Receiver Auto Connect By default, AV-Link will automatically identify preferred uAvionix™ ADS-B devices and connect to the nearest device, making the initial use very simple. AV-Link will automatically connect to the nearest: • Sentry • Sentry Mini • SkyEcho •...

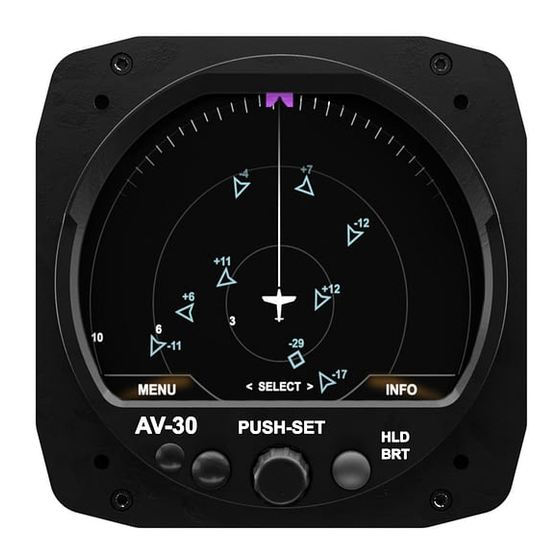

  • Page 7 Traffic Display on AV-30 Power on the supported Hold center knob 3 seconds to change screens. ADS-B Receiver Traffic Display is the third screen.
  • Page 8  Please reference the AV-30-E Pilot Guide for detailed operation instructions. Go to AV-30-E Pilot Guide uAvionix Brand Logo Specs (REV D) 20160329 Copyright 2021, All Rights Reserved uAvionix.com...
