Summary of Contents for NU-LIFT HFJ-700

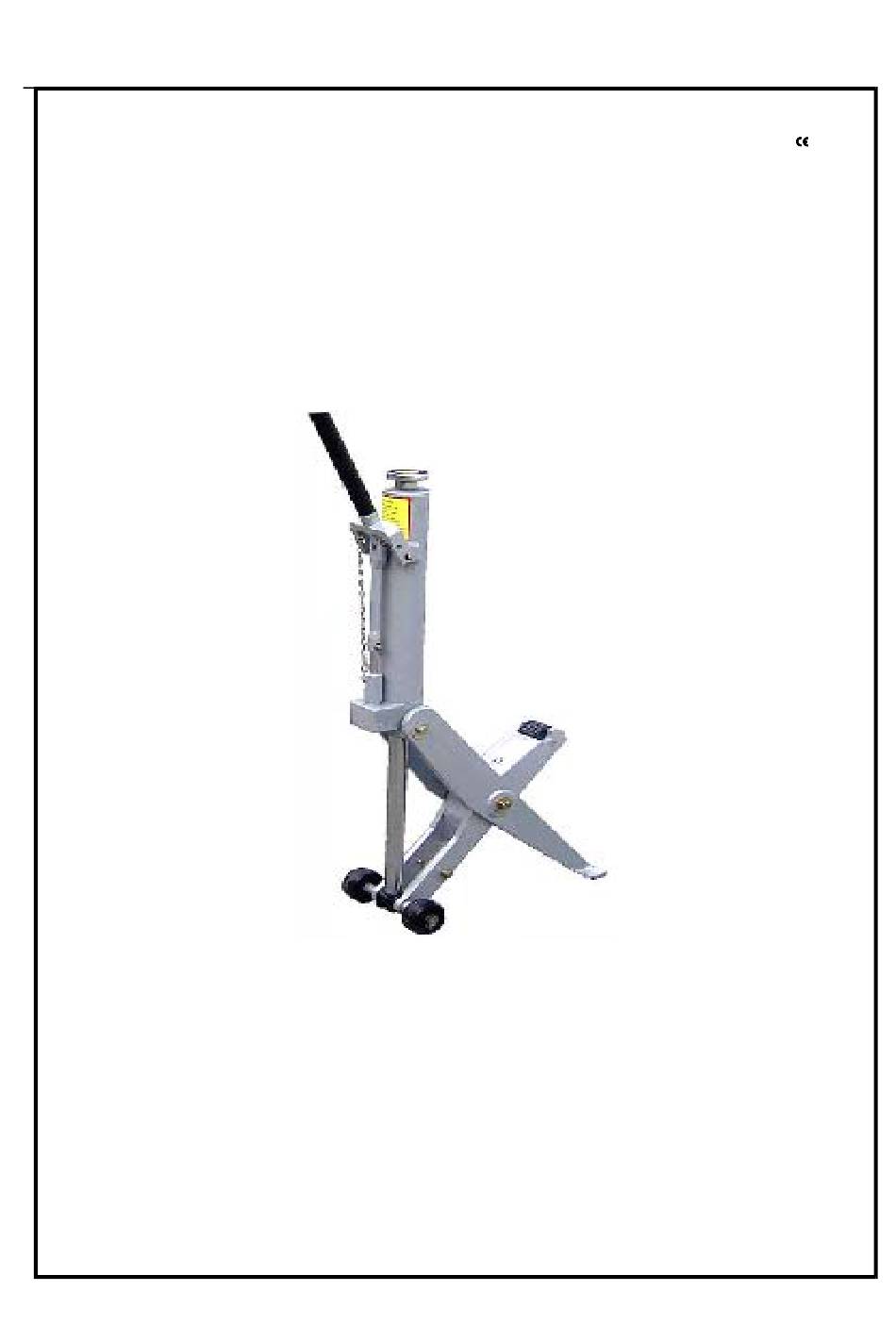

- Page 1 Instruction Manual FORKLIFT JACK HFJ-700 7000kgs CAPACITY NOTE: Owner / Operator must read and understand this instruction manual before using the forklift jack.
- Page 2 WARNING 1. Use extreme caution when lifting narrow fork lift trucks (less than 1016mm Wide) from the sides. 2. Never use more than one jack to lift the fork lift truck. Do not use the HFJ-700A to raise all for 4 wheels of the fork lift from the floor.
- Page 3 SPECIFICATIONS Rated capacity 7000kg/15400lbs Starting pad 65mm/2-1/2inches height (notch) Max.raised height 420mm/16-1/2inches Width 250mm/9-4/5inches Weight 48kg/105.6lbs...
- Page 4 DESCRIPTION DESCRIPTION Grip Screw Handle 1 Seal Ring Screw Spring Handle 2 Magnet Steel Handle Base Valve Block Chain O-Ring Chain Hook Back-Up Ring O-Ring Ball Retaining Ring Ball Seat Spring Screw Screw Seal Ring Piston Rod Pad Oil Tank O-Ring Saddle Port Ring...
