VDS6500 Installation Guide
VDS6500 Installation Guide

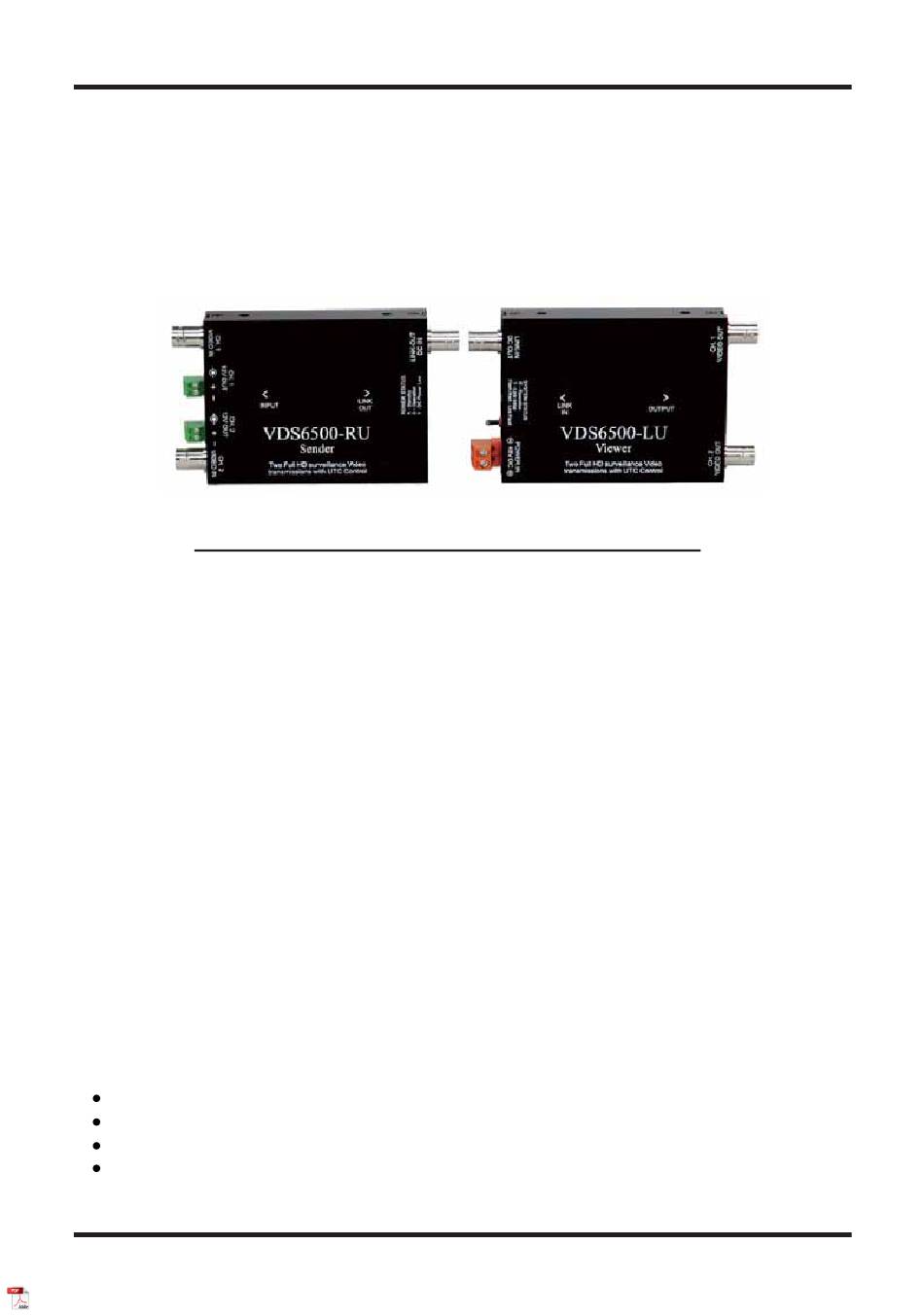

Fig 1. Picture of VDS6500-RU and VDS6500-LU
Introduction
VDS6500 is a single coaxial cable surveillance Video transmission system. The system
is designed with two units. VDS 6500-RU, the remote unit, called Sender, receives two
(analog HD) surveillance cameras signals. VDS 6500-LU, the local unit, called Viewer,
outputs two analog video signals to surveillance system. A coaxial cable connects
Viewer and Sender; the cable transmits these video signals from the remote to the
VDS6500 can transmit High-de�inition video signals including: AHD, TVI, CVI formats,
local, while sending DC power from the local to the remote.
and CVBS signals, and every analog surveillance camera signals in today's market.
In remote side, VDS6500-RU, Sender, accepts two video signals while transmitting
them. Sender provides two transmission channels independently with various formats.
In local side, VDS6500-LU, Viewer, outputs the video signals which are identical to
surveillance camera signals.
VDS6500 does not compress, sampling, and quantize video signals. Therefore, it does
not modify video signals. VDS6500 transmits real-time video signals, and is a true
analog transmission system.
Features
Two Full HD surveillance Video transmission
provide Up-the-Coax transmission
One cable transmits all signals and DC power
Plug and play, easy to install
