SIRETTA QUARTZ-GOLD Software Manual

Gigabit ethernet industrial router
Hide thumbs Also See for QUARTZ-GOLD:
Table of Contents

Advertisement

Quick Links

Download this manual

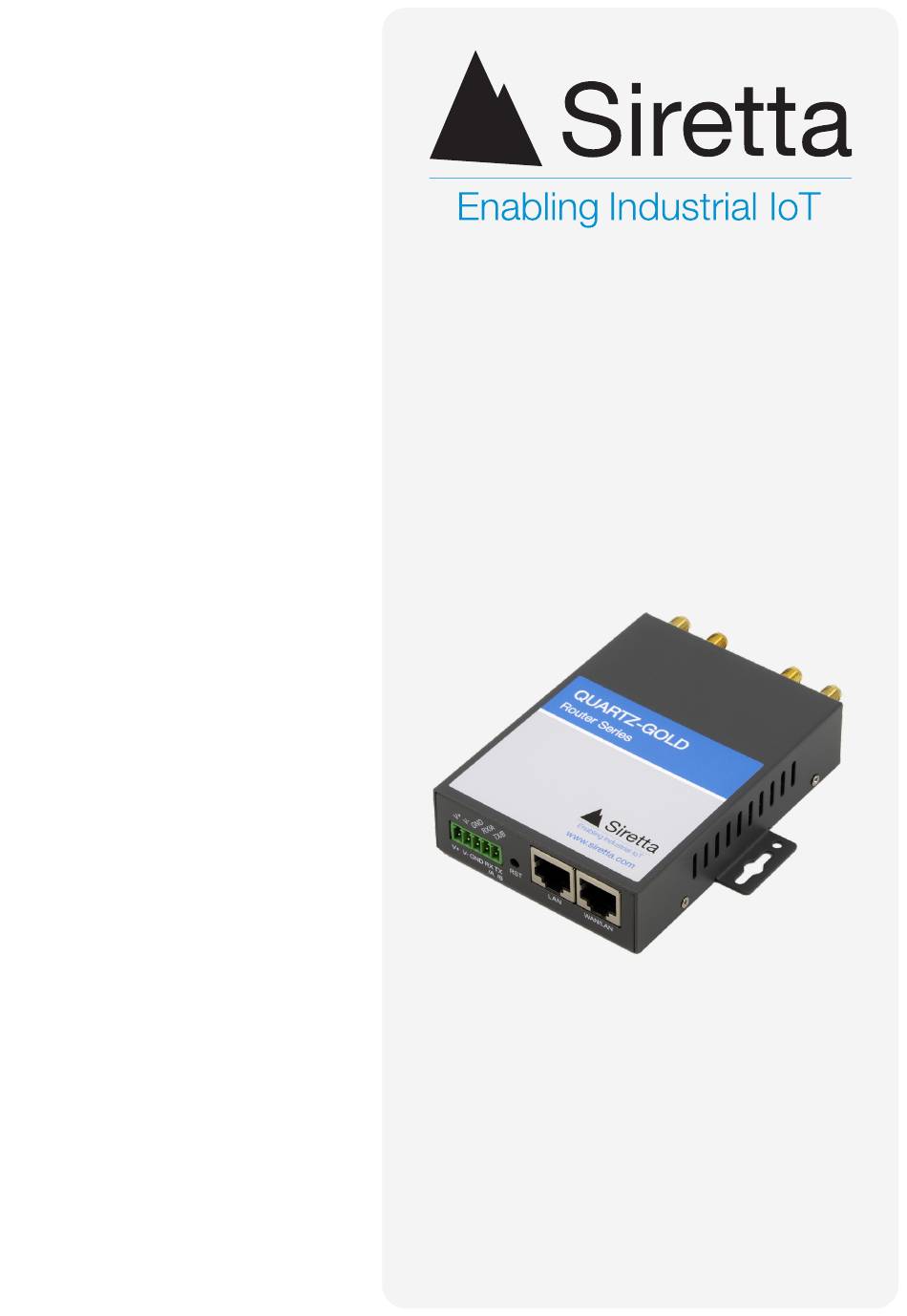

QUARTZ-GOLD
Gigabit Ethernet Industrial Router Range
Software Manual
Rev 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUARTZ-GOLD and is the answer not in the manual?

Questions and answers

Related Manuals for SIRETTA QUARTZ-GOLD

Summary of Contents for SIRETTA QUARTZ-GOLD

  • Page 1 QUARTZ-GOLD Gigabit Ethernet Industrial Router Range Software Manual Rev 1.0...

  • Page 2: Table Of Contents

    QUARTZ-GOLD Software Manual Table of Contents Page Introduction About Siretta Configuration Router Setup Connecting to the QUARTZ-GOLD Router Web Interface Important System Messages Measuring and Debugging Status Basic Network WLAN Advanced Network Firewall VPN Tunnel Administration Copyright Information Copyright Declaration...

  • Page 3: Introduction

    Software Manual Introduction This manual is intended to describe how to configure the QUARTZ-GOLD LTE router into a computer network so that it may be used as the gateway router either to a WAN or the 4G LTE cellular network, with the option of automatic fallback between the two.

  • Page 4: About Siretta

    10 years. We supply our products globally to many of the world’s leading organisations. Whether you require an off the shelf or custom solution, Siretta has a wide portfolio of antenna, RF cable assemblies and modems to fit your application.

  • Page 5: Configuration

    User Interface) or by a CLI (Command Line Interface). As received, this will need to be done with a local connection between the LAN port of the QUARTZ-GOLD and a PC using an Ethernet cable. However, the router may be configured for remote access subsequently (see Administration >...
  • Page 6 Figure 1. ‘Status > Overview’ page of the routers webserver Important Warning When first connecting to the QUARTZ-GOLD, all settings will be at factory default. This is so you can easily access the router for configuration, but this also means that anyone else could as well.

  • Page 7: Web Interface

    QUARTZ-GOLD Software Manual Web Interface When browsing to the routers IP address (= the gateway address) the initial view will always be the ‘Status > Overview’ page which gives a summary of the QUARTZ- GOLD configuration and operational status. No matter where in the web interface that you navigate, there will always be special status areas and tools shown: Figure 2.

  • Page 8: Important System Messages

    Once the password has been changed, and no router reboots are required, the message will change. Figure 4. System message - password changed When the QUARTZ-GOLD needs to be rebooted after a configuration change it will display the following system message: Figure 5. System message - password changed...

  • Page 9: Measuring And Debugging

    QUARTZ-GOLD Software Manual Measurement and Debugging Tools Clicking the ‘Tools’ icon will offer several tools. Figure 6. Measurement and debugging tool selection Ping The Ping test tool is used to send ICMP echo request packets to a target IP address to check for errors such as packet loss and to estimate the latency.
  • Page 10 QUARTZ-GOLD Software Manual Table 1. Ping test tool Tool Description Enter the URL or IPv4 address of the target to be checked (DNS IP Address lookup supported). Ping Count Enter the number of ICMP packets to be sent. Number of bytes of data payload that the ICMP packet must carry.
  • Page 11 QUARTZ-GOLD Software Manual Trace The Trace tool is used to determine the path and timings of the connection to an IP address. Figure 8. Trace Table 2. Trace tool Tool Description Enter the URL or IPv4 address of the target to be checked (DNS IP Address lookup supported).
  • Page 12 QUARTZ-GOLD Software Manual Wake on LAN (WOL). This allows a magic packet to be sent to wake up a networking device on the local subnet. Figure 9. Wake on LAN The interface shows the current ARP list of the router. Clicking any entry in the ARP list will send a magic packet to that MAC address.
  • Page 13 QUARTZ-GOLD Software Manual This allows the user to look at and download the router logs. The log is a rolling buffer of the last few minutes of activity of the router. Additionally, the log file can be sent to an external Syslog server.
  • Page 14 QUARTZ-GOLD Software Manual Capture The capture tool allows for a complete capture of all network traffic in a .pcap file format that can be viewed and analysed in Wireshark and other packet analyser software tools. Figure 11. Capture Select either LAN or WAN from the dropdown menu to choose the interface whose traffic will be captured, and the log duration and the click ‘Start’.
  • Page 15 QUARTZ-GOLD Software Manual Bandwidth This reports the traffic on the different interfaces of the QUARTZ-GOLD. This is shown both graphically and numerically. Figure 12. Measurement and debugging bandwidth selection IP Traffic This reports the traffic by IP address in the QUARTZ-GOLD. This is shown both graphically and numerically.
  • Page 16 QUARTZ-GOLD Software Manual System The system menu allows for software reboot, hardware reboot and logging out from the QUARTZ-GOLD. Figure 13. Measurement and debugging system selection Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com...

  • Page 17: Status

    QUARTZ-GOLD Software Manual Status Overview This displays the state of the interfaces of the QUARTZ-GOLD and shows the running operating configuration. Figure 15. Overview Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com...
  • Page 18 QUARTZ-GOLD Software Manual Traffic Stats. This shows the total data uploaded and downloaded by the QUARTZ-GOLD since it was last rebooted (software or hardware reboot). Figure 16. Traffic Stats GPS Status If enabled (in ‘Advanced Network > GPS’) and if fitted with the GPS option, this will show the status of the GPS.

  • Page 19: Basic Network

    QUARTZ-GOLD Software Manual Basic Network This defines how the WAN port works. If WAN is disabled, the port will work as a LAN port. Figure 19. WAN Table 3. WAN settings Setting Options Type Disabled / DHCP / PPPoE / Static Address Default / Custom After making all required changes, click ‘Save’...
  • Page 20 QUARTZ-GOLD Software Manual Cellular The cellular settings allow the LTE modem to be enabled/disabled, as it contains the settings necessary for the LTE modem to be configured correctly for the cellular network used. Figure 20. Cellular Table 4. Cellular settings...
  • Page 21 QUARTZ-GOLD Software Manual ICMP Check This checks for network connectivity using ICMP ping. The router will send a ICMP ping to the check IP address at the interval specified. If there is no response to the ICMP ping, then the router will retry every 3 seconds until the number of retries speci- fied is met.
  • Page 22 QUARTZ-GOLD Software Manual Cellular Traffic Check This checks for cellular network connectivity by looking for cellular network traffic. If there is no cellular network traffic occurring during the user set Check Interval, the cellular network will be judged as failed. When the cellular network has failed, the fail action will be taken and the process will start again.
  • Page 23 QUARTZ-GOLD Software Manual Figure 23. SIM settings Table 7. SIM settings Setting Options Enable Modem Enable / Disable LTE modem Auto / LTE (FDD/TDD) / 3G (WCDMA/TD-SCDMA/HSPA) Mode / 3G (CDMA 2000/CDMA 1x) / 2G (GSM). Using Auto will connect to the best network available, usually LTE.
  • Page 24 QUARTZ-GOLD Software Manual The LAN settings define the LAN subnets, DHCP server and DNS settings. Figure 24. LAN Table 8. LAN settings Setting Options Bridge br0 / br1 / br2 / br3 IP Address First IP address for the subnet...
  • Page 25 QUARTZ-GOLD Software Manual Table 9. DNS settings Setting Options Enable to set custom DNS, otherwise DNS from the active Use Custom DNS WAN is used Primary DNS Custom primary DNS Secondary DNS Custom secondary DNS After making all required changes, click ‘Save’ to apply them.
  • Page 26 QUARTZ-GOLD Software Manual VLAN VLANs may be set up and used in the QUARTZ-GOLD. If you will want to use a backup mode from WAN to Cellular or vice versa, configuring a VLAN is required. Figure 25. VLAN Table 10. VLAN settings...
  • Page 27 QUARTZ-GOLD Software Manual Schedule Here you enter scheduled events in the router. The enabled links show the broadband connections that have been configured and their names. These are used in the ICMP Check and Schedule Fields. Figure 26. Schedule ICMP Check Table 11.
  • Page 28 QUARTZ-GOLD Software Manual Schedule Table 12. Schedule settings Setting Options Check to enable line Link 1 Select primary interface from drop down Link 2 Select secondary interface from drop down Policy Select Failover or Backup Description User description for the rule After creating new Schedule settings click ‘Add+’...
  • Page 29 QUARTZ-GOLD Software Manual DDNS Here you may enter Dynamic DNS settings. Please check carefully that the IP address that you are using is a public IP address. If you are using a cellular connection, almost certainly the address reported will the IP address assigned by the cell that the connection is with.
  • Page 30 QUARTZ-GOLD Software Manual Dynamic DNS1 Table 14. Dynamic DNS1 settings Setting Options Service Select DDNS provider or custom address. Dynamic DNS2 Table 15. Dynamic DNS2 settings Setting Options Service Select DDNS provider or custom address. After making all required changes, click ‘Save’ to apply them.
  • Page 31 QUARTZ-GOLD Software Manual Routing This shows the current routing table, and allows for routing options such as static routes and OSPF to be set up and configured.* Figure 28. Routing *The OSPF protocol is a link-state routing protocol, which means that the routers exchange topology information with their nearest neighbours.
  • Page 32 QUARTZ-GOLD Software Manual Static Route Table 16. Static Route settings Setting Options Destination Enter the destination IP address Gateway Enter first IP address on route to destination IP address Subnet Mask Enter the subnet mask for the destination IP address...
  • Page 33 QUARTZ-GOLD Software Manual Miscellaneous Table 18. Miscellaneous settings Setting Options Mode Choose Gateway or Router RIPv1 & v2 Choose disabled, LAN, WAN or Both DHCP Routes Check to enable DHCP Routes Spanning-Tree Check to enable Spanning-Tree Protocol Protocol After making all required changes, click ‘Save’ to apply them.

  • Page 34: Wlan

    QUARTZ-GOLD Software Manual WLAN Basic Settings Here you can set up and configure the WiFi. There are 2 radio channels that may be combined to work on 2.4GHz or 5GHz only, or they can be split with one 2.4GHz channel and one 5GHz channel.
  • Page 35 QUARTZ-GOLD Software Manual Wireless 2.4GHz Table 19. Wireless 2.4GHz settings Setting Options Radio Mode Select 2.4G + 5G, 2.4G or 5G Enable WLAN Check to enable 2.4GHz wireless MAC Address MAC address of wireless interface Choose Access Point, Wireless Client or Wireless Ethernet...
  • Page 36 QUARTZ-GOLD Software Manual Wireless 5GHz Table 20. Wireless 5GHz settings Setting Options Radio Mode Select 2.4G + 5G, 2.4G or 5G Enable WLAN Check to enable 5GHz wireless MAC Address MAC address of wireless interface Choose Access Point, Wireless Client or Wireless Ethernet...
  • Page 37 QUARTZ-GOLD Software Manual MultiSSID Set up Multi SSID here. You may configure an additional 3 per radio, for a maximum of 8 SSIDs. Figure 30. MultiSSID settings Table 21. MultiSSID settings Setting Options Interface WiFi Interface used Enabled? Check to enable...
  • Page 38 QUARTZ-GOLD Software Manual Wireless Survey This shows details of the surrounding WiFi networks. Figure 31. Wireless Survey settings Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com VAT Registration No. GB163 04 0349...

  • Page 39: Advanced Network

    QUARTZ-GOLD Software Manual Advanced Network Port Forwarding Set up port forwarding rules here. These rules will allow the routing of packets arriving on a specific port from specific IP addresses external to the WAN interface to be forwarded to specific internal IP addresses and ports on the local LAN.
  • Page 40 QUARTZ-GOLD Software Manual Port Redirecting Port redirecting redirects all traffic arriving on a user defined external WAN port to a specific IP address and port on the internal LAN. Figure 33. Port Redirecting settings Table 23. Port Redirecting settings Setting...
  • Page 41 QUARTZ-GOLD Software Manual Set up a DMZ here. The internal target address of the DMZ should be fixed by using Static DHCP. Figure 34. DMZ settings Table 24. DMZ settings Setting Options Enable DMZ Options Internal Address Check to enable the DMZ...
  • Page 42 QUARTZ-GOLD Software Manual IP Passthrough IP passthrough bridges all traffic on the external WAN interface to a single device attached to the routers LAN port. Therefore, this device connected to the LAN will be assigned the IP address that would otherwise have been used by the WAN and not an IP address from the routers DHCP server.
  • Page 43 QUARTZ-GOLD Software Manual Triggered Port trigger is a dynamic version of port forwarding. Outgoing traffic on a specific port will open an incoming port to the device on the LAN that originated the outgoing traffic. The rule only applies while there is outgoing traffic. Since the connection is not persistent and the connection dynamic, this is safer than port redirection.
  • Page 44 QUARTZ-GOLD Software Manual Captive Portal The Captive Portal is a web page that is accessed when first connecting to the router. Figure 37. Captive Portal settings Table 27. Captive Portal settings Setting Options Enabled Check to enable the Captive Portal Select captive portal file storage: »...
  • Page 45 QUARTZ-GOLD Software Manual Table 27 (continued). Captive Portal settings Setting Options Enable to allow devices on the LAN to bypass the Ignore LAN captive portal Redirection page displayed once the terms and conditions Redirecting http:// on the captive portal have been accepted.
  • Page 46 QUARTZ-GOLD Software Manual LinkCONNECT This defines how the serial port on the connector shared with the power connection works. Figure 38. LinkCONNECT settings Table 28. LinkCONNECT settings Setting Options IPoC Mode Choose Serial or Modbus Serial to TCP/ Choose Disable / Server or Client (Serial) or Enable /...
  • Page 47 QUARTZ-GOLD Software Manual Figure 39. Extended LinkCONNECT settings Table 29. Extended LinkCONNECT settings Setting Options Server IP/Port Enter IP address / domain name and port Socket type Choose TCP or UDP Choose socket timeout in mS. This the time that the router Socket Timeout will wait before sending data to the serial port.
  • Page 48 QUARTZ-GOLD Software Manual Table 29 (continued). Extended LinkCONNECT settings Setting Options Debug Enable Check to enable debug Choose 300, 600, 1200, 2400, 9600, 19200, 38400, Baud Rate 57600 or 115200 Parity Bit Choose none, odd or even Data Bit Choose 5, 6 7 or 8...
  • Page 49 QUARTZ-GOLD Software Manual Here the GPS can be enabled (in client or server mode). When enabled in either mode, the current location may be viewed in Status > GPS Status. In client mode, the router sends the GPS messages to the specified IP address and port.
  • Page 50 QUARTZ-GOLD Software Manual Server Mode Figure 41. Extended GPS settings - Server Mode Table 31. Extended GPS settings - Server Mode Setting Options GPS Mode Server chosen Data Format Choose NMEA or M2M_FMT Bind Port Choose port for connection Socket Type Choose TCP or UDP Choose socket timeout in mS.
  • Page 51 QUARTZ-GOLD Software Manual Client Mode Figure 42. Extended GPS settings - Client Mode Table 32. Extended GPS settings - Client Mode Setting Options GPS Mode Client chosen Data Format Choose NMEA or M2M_FMT Server IP port Choose IP address and port to send GPS data to...
  • Page 52 QUARTZ-GOLD Software Manual Example NMEA Data 24/06/2021;15:36:55;;;;;;8;;;;;$GPGV,3,1,12,03,23,213,32,08,54,158,42,10,20,049, 40,17,06,309,30,1*66 $GPGSV,3,2,12,21,80,305,32,27,23,143,42,32,31,082,48,14,27,302,,1*6A $GPGSV,3,3,12,22,49,209,,24,,,,36,,,43,49,,,34,1*5F $GPGGA,143655.00,5116.638985,N,00045.207534,W,1,07,0.8,86.2,M,47.0,M,,*42 $GPVTG,180.8,T,184.4,M,0.0,N,0.0,K,A*2B $GPRMC,143655.00,A,5116.638985,N,00045.207534,W,0.0,180.8,240621,3.5,W,A ,V*47 $GPGSA,A,3,03,08,10,21,22,27,32,,,,,,1.1,0.8,0.7,1*2D Example M2M_FMT Data 24/06/2021;15:37:34;;;;;;8;;;;;,210624,143734.00,08,5116.638965,N,00045.207544 ,W,0.0,180.8,1,0.7,86.2 Explanation: Date;Time;;;;;;Satellites used;;;;;,YMD,HMS,No. Satellites,Latitude,N or S,Longitude,W or E,speed,degrees,Fix indication,HDOP,Altitude Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com...
  • Page 53 QUARTZ-GOLD Software Manual UPnP/NAT-PMP Universal Plug and Play/NAT Port Mapping Protocol settings. Figure 43. UPnP/NAT-PMP settings Table 33. UPnP/NAT-PMP settings Setting Options Enable UPnP Check to enable Enable NAT-PMP Check to enable Inactive Rules Check to enable Cleaning Cleaning Interval...
  • Page 54 QUARTZ-GOLD Software Manual Bandwidth Limiter Settings to control allowed bandwidth and priority by IP address, IP range or MAC address. Figure 44. Bandwidth Limiter settings Table 34. Bandwidth Limiter settings Setting Options Enable Control Check to enable Max Available Enter download speed of routers Internet connection if...
  • Page 55 QUARTZ-GOLD Software Manual VRRP Virtual Router Redundancy Protocol. Settings to switch routing path to different routers. The VRRP works in non pre-emptive mode where the router configured as the master will operate as the master regardless of whether it has the highest priority, until such time that it fails.
  • Page 56 QUARTZ-GOLD Software Manual Table 35 (continued). VRRP settings Setting Options Script Type Chose default or ICMP IP Address Enter IP address or domain name if ICMP script selected Check Interval Interval in seconds to check the VRRP configuration Weight Weight setting to adjust the priority should the check fail After making all required changes, click ‘Save’...
  • Page 57 QUARTZ-GOLD Software Manual Static DHCP This allows the setup of binding a MAC address to an IP address. It is possible to assign 2 MAC addresses to one IP address. This is not advised as it can be unreliable. Figure 46. Static DHCP settings Table 36.

  • Page 58: Firewall

    QUARTZ-GOLD Software Manual Firewall IP/URL Filtering This allows for the filtering of key words, MAC addresses and ports, as well as IP addresses and URLs. IP/MAC/Port filtering, key word filtering and URL filtering control what passes from the routers WAN/Cellular interface to the Internet.
  • Page 59 QUARTZ-GOLD Software Manual Table 37 (continued). IP/URL Filtering settings Setting Options Dst Port Enter destination port (optional) Policy Choose drop or accept Key Word Enter a key word URL Filter Enter a URL Description User description for the rule After creating a new Firewall rule, click ‘Add+’ to add it. After making all required changes, click ‘Save’...
  • Page 60 QUARTZ-GOLD Software Manual Domain Filtering This allows the setup of binding a MAC address to an IP address. It is possible to assign 2 MAC addresses to one IP address. This is not advised as it can be unreliable. Figure 48. Domain Filtering settings Table 38.

  • Page 61: Vpn Tunnel

    QUARTZ-GOLD Software Manual VPN Tunnel GRE (Generic Routing Encapsulation) support for up to 8 tunnels may be set up here. Figure 49. GRE Tunnel settings Table 39. GRE Tunnel settings Setting Options Check to enable rule Enter index number between 1 and 8...
  • Page 62 QUARTZ-GOLD Software Manual Table 39 (continued). GRE settings Setting Options Destination Address Enter remote network IP address and mask Description User description for the rule After creating a new default policy rule, click ‘Add+’ to add it. After making all required changes, click ‘Save’...
  • Page 63 QUARTZ-GOLD Software Manual Table 40. OpenVPN Client - Basic settings Setting Options Start with WAN Check to enable Select TAP or TUN (optional settings, TAP is bridge mode, Interface type TUN is routing mode) Protocol Select UDP or TCP (optional settings)
  • Page 64 QUARTZ-GOLD Software Manual Advanced Figure 51. OpenVPN Client - Advanced settings Table 41. OpenVPN Client - Advanced settings Setting Options Poll Interval OpenVPN client status check interval (in minutes) Redirect Internet Check to make OpenVPN the default route Traffic Accept DNS...
  • Page 65 QUARTZ-GOLD Software Manual Table 41 (continued). OpenVPN Client - Advanced settings Setting Options Custom As required by OpenVPN server Configuration After making all required changes, click ‘Save’ to apply them. Keys Figure 52. OpenVPN Client - Keys settings Table 42. OpenVPN Client - Advanced settings...
  • Page 66 QUARTZ-GOLD Software Manual Status Figure 53. OpenVPN Client - Status settings Click refresh status to see the status of the OpenVPN tunnel and data statistics. Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com...
  • Page 67 QUARTZ-GOLD Software Manual PPTP/L2TP Client Configure PPTP and L2TP tunnels here. Figure 54. PPTP/L2TP settings L2TP/PPTP Basic Table 43. L2TP/PPTP - Basic settings Setting Options Check to enable rule Protocol Choose L2TP or PPTP Name User chosen name for the VPN tunnel...
  • Page 68 QUARTZ-GOLD Software Manual L2TP Advanced Table 44. L2TP - Advanced settings Setting Options Check to enable rule Name User chosen name for the L2TP VPN tunnel Accept DNS Choose Yes or No Suggest 1450 Suggest 1450 Check to enable tunnel authentication if required by L2TP...
  • Page 69 QUARTZ-GOLD Software Manual Schedule Table 45. Schedule settings Setting Options Check to enable rule Name 1 VPN tunnel name Name 2 VPN tunnel name Policy Choose FAILOVER or BACKUP Description User description for the rule After creating new Schedule setting, click ‘Add+’ to add it. After making all required changes, click ‘Save’...
  • Page 70 QUARTZ-GOLD Software Manual IPSEC IPSec configuration settings. Configure up to two IPSec tunnels and their schedule. IPSEC Group Setup Figure 55. IPSEC - Group Setup Table 47. IPSEC - Group setup settings Setting Options Enable IPSec Check to enable rule...
  • Page 71 QUARTZ-GOLD Software Manual Table 47 (continued). IPSEC - Group setup settings Setting Options Remote Security Group Subnet/ Enter IPSec remote subnet and mask Netmask Remote Security Check to enable firewalling for the remote subnet Firewalling After making all required changes, click ‘Save’ to apply them.
  • Page 72 QUARTZ-GOLD Software Manual Table 48. IPSEC - Basic setup settings Setting Options Choose IKE with Preshared Key or IKEv2 with Preshared Keyring Mode Choose Group 1 – modp768, Group 2 – modp1024 or Phase 1 DH Group Group 5 – modp1536...
  • Page 73 QUARTZ-GOLD Software Manual IPSEC Advanced Setup Figure 57. IPSEC - Advanced Setup Table 49. IPSEC - Advanced setup settings Setting Options Aggressive Mode Check to enable aggressive mode if required. Compress (IP Payload Check to enable ID payload compression if required.
  • Page 74 QUARTZ-GOLD Software Manual IPSEC Schedule Figure 58. IPSEC - Schedule Table 50. IPSEC - Schedule settings Setting Options Policy Choose NONE, FAILOVER or BACKUP After making all required changes, click ‘Save’ to apply them. Siretta Ltd sales +44(0)118 976 9000...

  • Page 75: Administration

    QUARTZ-GOLD Software Manual Administration Identification Setup the router name, hostname and domain name here. Figure 59. Identification settings Table 51. Identification settings Setting Options Router Name Enter an identifying name for the router Hostname Enter required hostname Enter domain name used by the WAN (if used, usually...
  • Page 76 QUARTZ-GOLD Software Manual Time Enter NTP details, timezone, etc here. The QUARTZ-GOLD sets its time from the Internet, but is not an NTP server. Figure 60. Time settings Table 52. Time settings Setting Options Time Zone Set time zone from the drop down list.
  • Page 77 QUARTZ-GOLD Software Manual Admin Access Set the allowed methods of access to the QUARTZ-GOLD configuration settings here. The are two account types: ‘Admin’ which has unlimited access and ‘User’ which has read only access. Figure 61. Admin Access settings Table 53. Admin Access settings...
  • Page 78 QUARTZ-GOLD Software Manual Table 53 (continued). Admin Access settings Setting Options SSH Enable at Check to enable SSH at startup Startup Allow Telnet Remote Check to allow Telnet remote access (Telnet local access Access always allowed) Password (admin) Choose and re-enter the admin password...
  • Page 79 QUARTZ-GOLD Software Manual Scheduled Reboot Figure 62. Scheduled Reboot settings Table 54. Scheduled Reboot settings Setting Options Enabled Check to enable rule Choose reboot interval from drop down list (between hourly Time and every 60 days) Days Select which days the reboot should occur on After making all required changes, click ‘Save’...
  • Page 80 QUARTZ-GOLD Software Manual SNMP Figure 63. SNMP settings Table 55. SNMP settings Setting Options Enable SNMP Check to enable SNMP Port Enter port Remote Access Check to enable remote access Allowed Remote IP Whitelist of IP addresses allowed to access if remote...
  • Page 81 QUARTZ-GOLD Software Manual Table 55 (continued). SNMP settings Setting Options SNMPv3 Choose NONE, MD5 or SHA Authentication Type SNMPv3 Privacy Choose NONE, DES or AES Type Custom OID Enter up to 5 custom OIDs (optional) After making all required changes, click ‘Save’ to apply them.
  • Page 82 File Upload new file names must never include spaces. List of files stored on the QUARTZ-GOLD. Click the icons Current File List to the right of the file names to download or delete them. After making all required changes, click ‘Save’ to apply them.
  • Page 83 QUARTZ-GOLD Software Manual M2M Settings Siretta offer a M2M portal to allow you to view and manage many routers from a cloud-based portal. Configure the settings to connect the QUARTZ-GOLD to this portal here. NOTE: This is currently in Beta – please contact support for settings if you wish to try this out.
  • Page 84 QUARTZ-GOLD Software Manual TR-069 Configure TR-069 client for remote management settings here. Figure 66. TR-069 settings Table 57. TR-069 settings Setting Options Enabled Check to enable TR-069 Enable Periodic Check to enable periodic transmission Transmission Username Username as required for server...
  • Page 85 QUARTZ-GOLD Software Manual Configuration Backup and restore configurations here. Figure 67. Configuration settings Backup Configuration Enter a file name for the backup file and click the ‘backup’ button to download a .cfg file containing the routers configuration. Save As Default Configuration Click the ‘Save’...
  • Page 86 Software Manual Logging Status messages for debugging purposes can be logged by the QUARTZ-GOLD, either internally or to an external syslog recorder. The logs can be accessed via the ‘Tools > Logs’ menu at the top of the routers home page.
  • Page 87 Some firmware versions may alter the factory default settings. If possible, it is always wise to factory reset the QUARTZ-GOLD after a firmware update. This can be done either via the web interface of the router (Administration > Configuration, Restore Default Configuration), or by holding the reset pin in for at least 30 seconds after the router has been powered up and booted.

  • Page 88: Copyright Information

    Siretta Ltd. Trademarks Windows and Microsoft are registered trademarks of Microsoft Corporation. Siretta Ltd is an independent business and is neither affiliated with, nor authorized, sponsored, or approved by, Microsoft Corporation. Wireshark is a registered trademark of the Wireshark Foundation.

  • Page 89: Disclaimer

    The information contained in this document is proprietary to Siretta Ltd. Siretta has made every effort to ensure that the accuracy of the information contained within this document is accurate. Siretta does not make any warranty as to the information contained within this document and does not accept any liability for any injury, loss or damage of any kind incurred by the use of this information.

  • Page 90: Definitions

    QUARTZ-GOLD Software Manual Definitions Term Definition 4th Generation Mobile Telecommunications OSPF Open Shortest Path First Access Point Name PLMN Public Land Mobile Network Address Resolution Protocol Point-to-Point CIMI Cloud Infrastructure Management Interface PPPoE Point-to-Point over Ethernet Command Line Interface PPTP...
