Kampmann KA-520 L Assembly Instructions

EN Assembly instructions
1

Overview

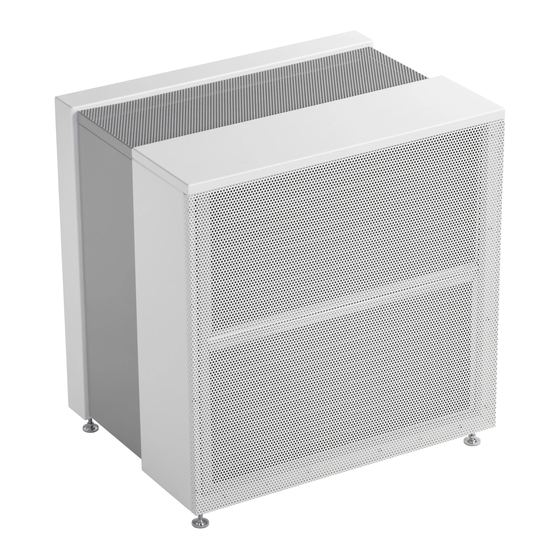

KA-520 L
3
8
7
6
4 1 2
5
KA-520 XL
2

Safety

Mains power supply/Mains power cable
Do not route close to heaters.
Do not route under heavy objects that could alter the cross-section of the mains power cable.
Only use the unit with the stated mains voltage! Incorrect connection to a mains power
socket can lead to fire or electrocution.
Do not use the unit if the mains power plug or mains power cable are faulty or damaged.
First switch off the unit, then disconnect the mains power plug before commencing mainten-
ance work!
IMPORTANT NOTE!
Do not cover the air inlet and outlet!
Do not place objects or textiles close to the air inlet and outlet, as this will impair
the efficiency of air purification.
IMPORTANT NOTE!
Do not damage the unit by heavy loads!
Avoid heavy loads (this is not a seat), as this may damage the casing and can im-
pair the operation of the unit.
DANGER!
Avoid electric shocks and/or fire hazards!
Prevent liquids or flammable cleaning agents from penetrating the unit.
Do not clean the unit with water, flammable cleaning agents or other li-
quids.
2.1 Correct use
The air purifier KA-520 uses air circulation to filter the smallest particles (e.g. bacteria, viruses,
pollen, etc.) out of the air using a particulate filter (Hepa filter).
Intended use of the unit also includes adherence to these instructions.
Any use beyond or other than the stated intended use is considered as misuse.
Any change to the unit or use of non-original spare parts will cause the expiry of the warranty
and the manufacturer's liability.
SAP 1418105 03/21
KA-520 XL Pro
KA-520 XXL
Kampmann GmbH & Co. KG
Friedrich-Ebert-Str. 128-130
49811 Lingen (Ems)
T: +49591/7108 0
E: info@kampmann.de
www.ka-520.de
1
2
3
4
5
6
7
8
2.2 Limits of operation and use
IMPORTANT NOTE!
Warning of misuse!
In the event of misuse, as itemised below, there is a danger of limited or failing
operation of the unit. Ensure that the airflow can circulate freely.
Never operate the unit in humid areas, such as swimming pools, wet areas
etc.
Never operate the unit in rooms with an explosive atmosphere.
Never operate the unit in aggressive or corrosive atmospheres (e.g. sea air).
2.3 Risk from electrocution!
DANGER!
Risk of fatal injury from electrocution!
Contact with live parts will lead to fatal injury from electrocution. Damage to the
insulation or individual components can lead to a fatal injury.
Only permit qualified electricians to work on the electrical system.
Immediately disconnect the system from the power supply and repair it in
the event of damage to the insulation.
Keep live parts away from moisture. This can cause a short circuit.
Properly earth the unit.
First switch off the main switch, then disconnect the plug before working
on the unit.
Luftreiniger KA-520
Assembly instructions
Assembly instructions:
H14 particulate filter
ISO Coarse pre-filter
Filter cover
Air outlet grille
Main switch (green light indicates operation)
Mains power connection
Switch for operating stage I and II
Timer Setting
4
