Summary of Contents for DeZurik D10350

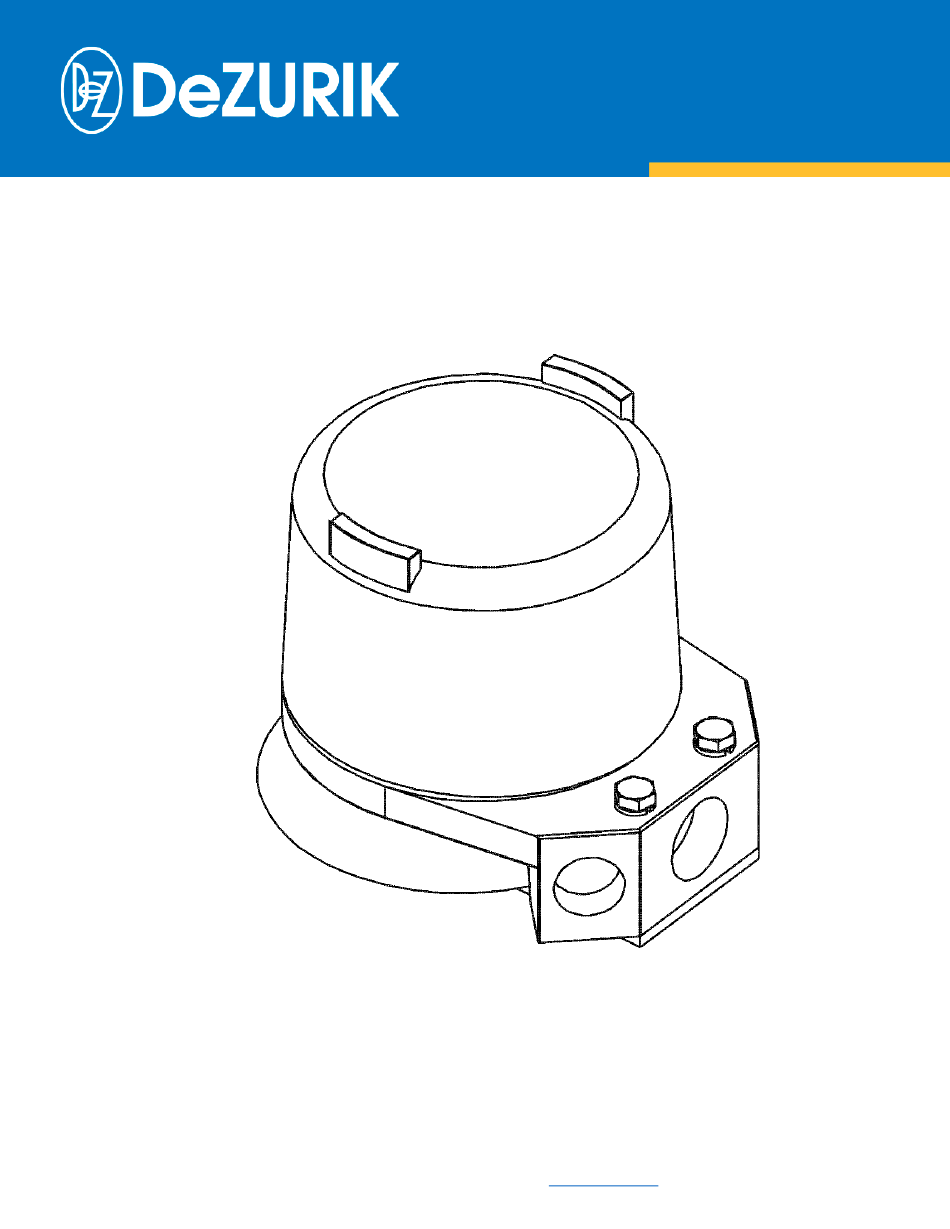

- Page 1 DEZURIK SWITCH AND POSITIONER TRANSMITTER D10350 Instruction May 2014 DeZURIK, Inc. Sartell, Minnesota USA | Phone: 320-259-2000 | www.dezurik.com | info@dezurik.com...
- Page 2 Recommended spare parts are listed on the assembly drawing. These parts should be stocked to minimize downtime. Order parts from your DeZURIK sales representative, or directly from DeZURIK. When ordering parts, please include the 7-digit part number and 4-digit revision number (example: 9999999R000) located on the data plate attached to the valve assembly.
-
Page 3: Table Of Contents
Switch Mounting Kit used on PMV Positioner - - - - - - - - - - - - - - - - - - - - - - - - - - - - May 2014 Page 3 D10350... -
Page 4: Description
The second and third switches are not factory set, but may be set in the field. The internal wiring from the switches to the terminal strip is shown in Figure 2. Figure 1— Mechanical Switches D10350 Page 4 May 2014... -
Page 5: Proximity Switches
To adjust the bottom switch, repeat the process with the bottom cam, but lift the cam upwards to rotate it to the desired position. Figure 2—Proximity Switches May 2014 Page 5 D10350... -
Page 6: Position Transmitter
6. Place the valve in the position desired for 20 mA output. Adjust the span trimpot so that the ammeter reads 20 ± 0.1 mA. The zero and span adjustments are not interactive. Figure 3—Position Transmitter D10350 Page 6 May 2014... -
Page 7: Indicator Adjustment
80 ± 5 inch pounds. 6. To fine-tune the position of the indicator cover (A3), loosen the set screw (A2), and rotate the indicator cover to the desired position. Tighten the set screw. Figure 4 - Indicator Adjustment Components May 2014 Page 7 D10350... -
Page 8: Switch Mounting Kit Used On Pmv Positioner
DeZURIK Switch Mounting Kit used on PMV Positioner Figure 5 – Switch Mounting Kit used on PMV Positioner D10350 Page 8 May 2014... - Page 9 If you use metric fasteners with ASME Class 150/300 bolt holes and flange bolt patterns, you do so at your sole risk and any liability associated with such use shall not be the responsibility of DeZURIK, Inc. In addition to the foregoing, DeZURIK’s Manufacturer’s Conditions apply.
