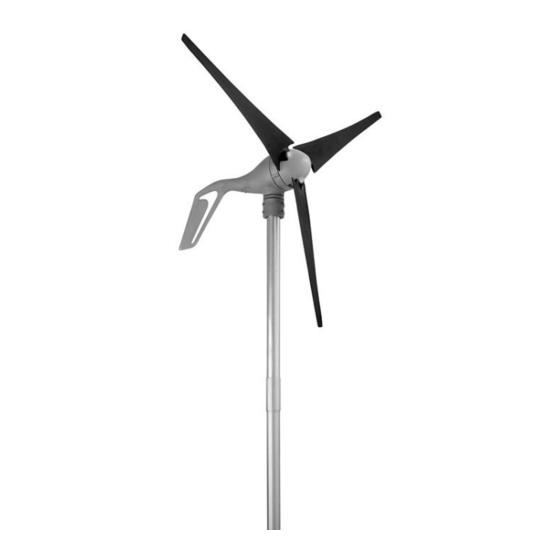

AIR Wind Turbine: Quick Start Guide – Important Information

WARNING:

Rotating blades are a serious me-
chanical hazard. Install AIR wind turbines so no
one can come into contact with blades.
IMPORTANT:
of your AIR wind turbine to limit any damage and
or water ingress when removing front hub/
blades for seasonal storage and or when trans-
porting between projects. Refer to AIR Owner's
manual storage kit instructions Appendix C.
WARNING!
•
Please read the AIR Owner's Manual prior to
installation! The AIR Owner's manual is saved in a
USB memory stick, which is included in the AIR box
with this quick start guide. The USB stick also
includes useful documents, videos, pictures and part
accessories for a safe and effective install of the AIR
wind turbine. These documents are seperated into
named files on the USB stick.
•
The most updated version of this manual is located
here: www.primuswindpower.com
•
The warranty does not include installation errors of
the AIR wind turbine.
•
If you are not familiar with electrical wiring, safety
procedures and off grid systems, please use a
qualified person to complete the install.
•
Please use high quality terminal connections and
correct wire sizing as a poor install may lead to
decreased perfomance or a non-operable AIR
turbine.
•
If using Lithium Ion battery type (or Diversion/Dump
load) please refer to the AIR Owner's manual
(Appendix A) prior to installation of the AIR turbine.
These installation types my require a Potentionmeter
setting change.
Follow proper storage instructions

IMPORTANT: BEFORE INSTALL!

•
All AIR turbines are voltage specific. Before
connecting your AIR turbine to the Battery Bank,
please be sure the voltage of the turbine matches
the voltage of the battery bank.
•
Be sure to pay attention to correct polarity when
connecting your positive and negative (Red/Black)
turbine wire leads. A reversed polarity connection
will damaged the internal control circuit and this
would void the warranty.
•
Green Wire is ground and proper turbine
grounding of the AIR turbine is critical to operation
and protects people and equipment. Refer to AIR
Owner's manual for specific grounding
recomendations.
•
Properly sized Breaker (recomended) or Slow Blow
Fuse is required in the AIR install to protect wiring
and addtional off grid equipment from over
current faults.
•
Determine your wire size using chart in manual for
specific AIR turbine, wire run distance and voltage.
Stranded, cooper wire is reccomended.
•
Read the AIR Owner's Manual prior to the start of
installation.
