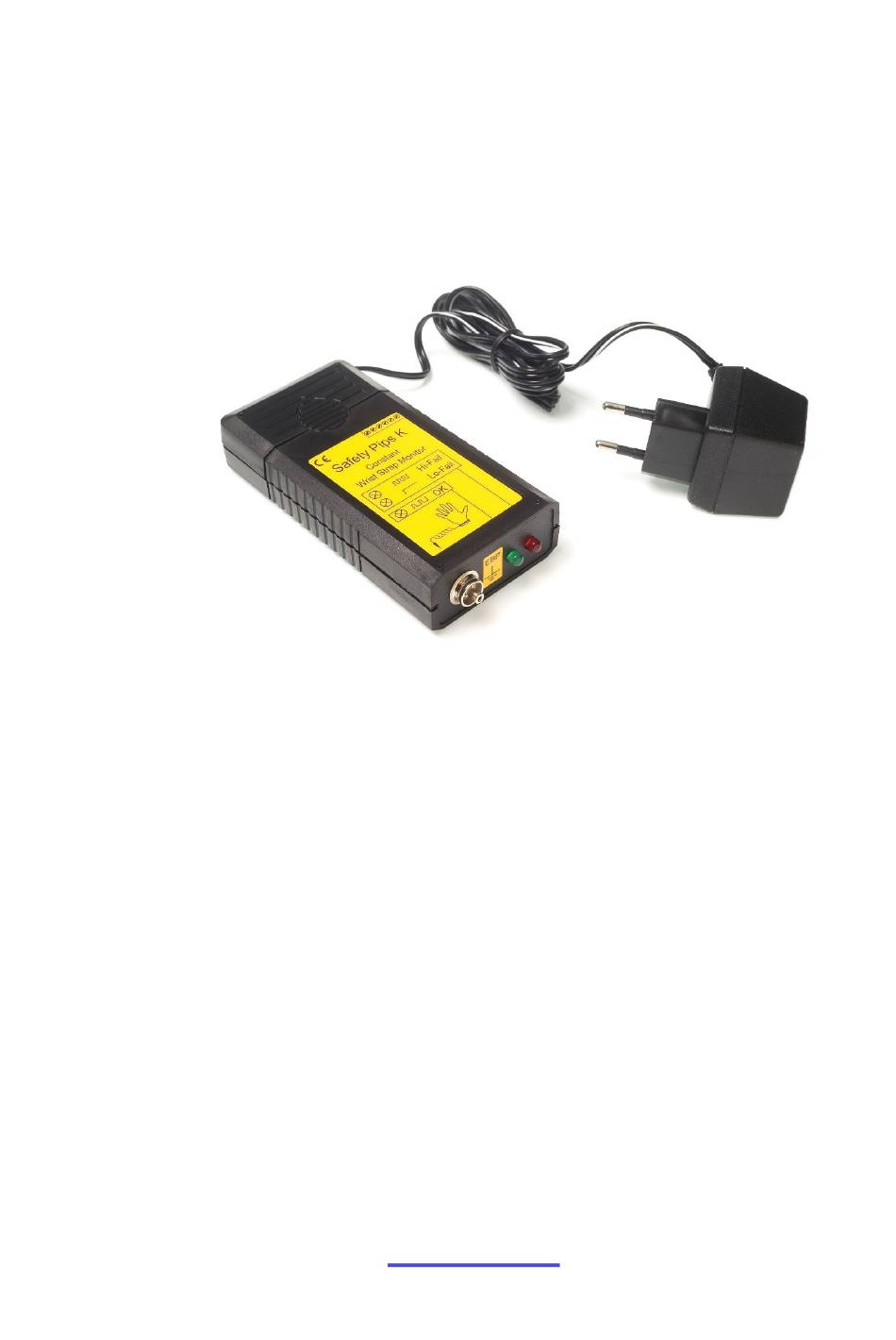

- Page 1 User's Manual Safety Pips with relay output (7100.181.K) Continuous Wrist Strap Monitor with relay output Wolfgang Warmbier GmbH & Co. KG Systeme gegen Elektrostatik Untere Gießwiesen 21 78247 Hilzingen, Germany www.warmbier.com...
- Page 2 Safety Pips K- User's manual Part No.: 7100.181.K Introduction The Safety Pips is a continuous wrist strap monitor. The person wearing the wrist band is grounded and checked permanently by a measurement of resistance and body capacity. When measuring the input resistance of the instrument to ground, please use a voltage above 15 Volt because of the 12 Volt protection zener diodes fitted in the instrument.
- Page 3 Safety Pips K- User's manual Part No.: 7100.181.K Signals and possible error conditions Green LED flashes Resistance and capacity are in the rated range Red LED flashes Reason: The measured resistance is too high Measures: Check if the wrist strap is fixed tight to the skin...
- Page 4 Safety Pips K- User's manual Part No.: 7100.181.K Technical data Power supply: Power supply 230V / 50Hz Connectors: 10 mm snap for coil cords Contact ratings: Max. voltage: 60 V Max. current: 0.2 A Max. power: 6 VA Switch on time of signal contact: ca.
