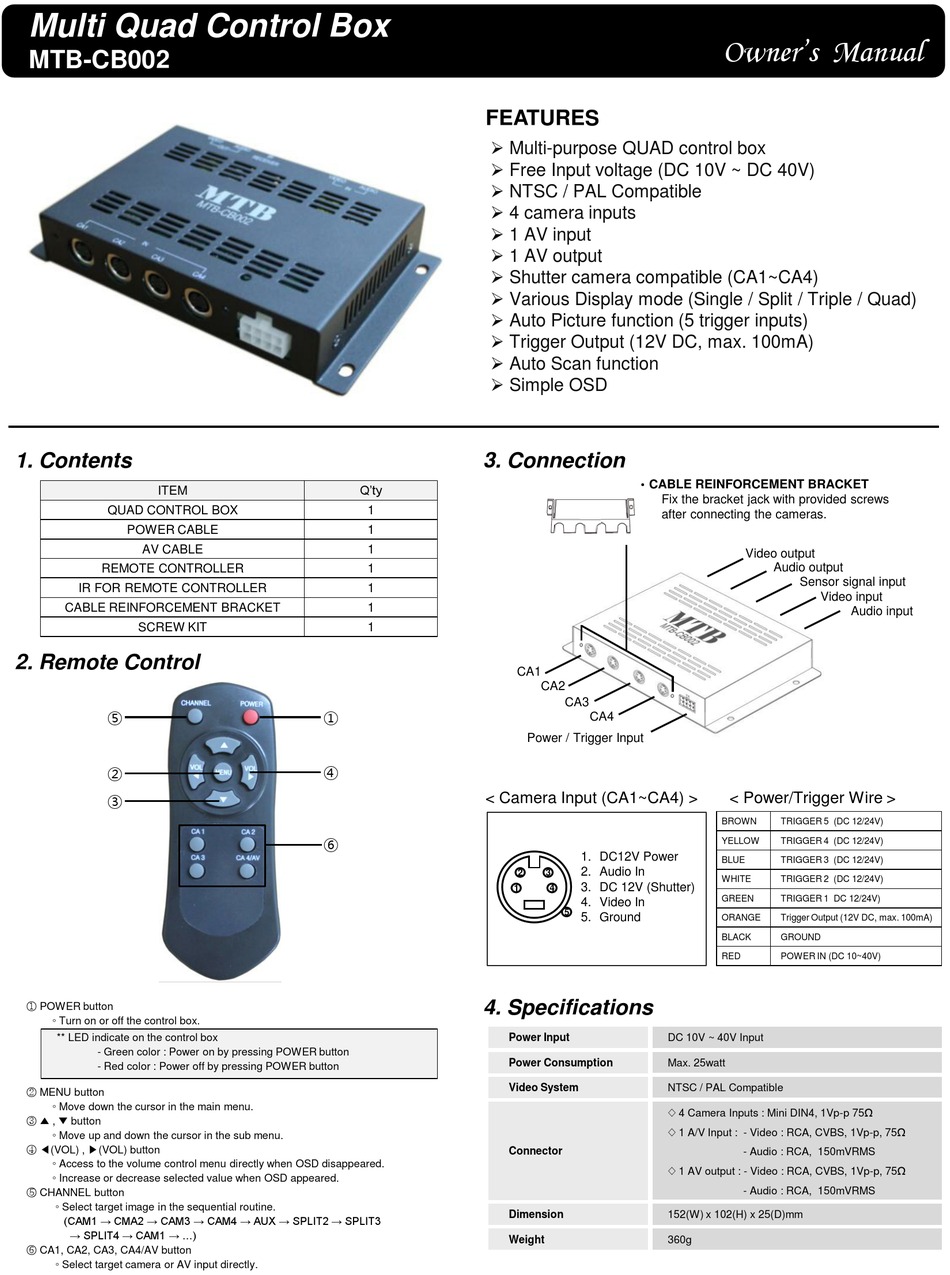

MTB -CB002 Owner's Manual

Multi Quad Control Box
MTB-CB002
1. Contents
ITEM

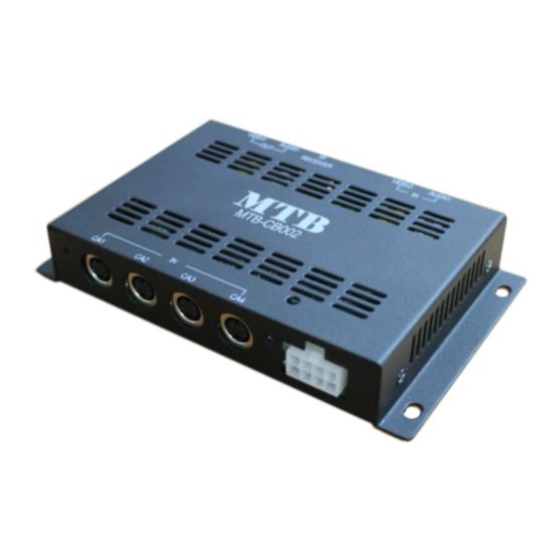

QUAD CONTROL BOX
POWER CABLE
AV CABLE
REMOTE CONTROLLER
IR FOR REMOTE CONTROLLER
CABLE REINFORCEMENT BRACKET
SCREW KIT
2. Remote Control
⑤
②
③
① POWER button
◦ Turn on or off the control box.
** LED indicate on the control box
- Green color : Power on by pressing POWER button
- Red color : Power off by pressing POWER button
② MENU button
◦ Move down the cursor in the main menu.
③ ▲ , ▼ button
◦ Move up and down the cursor in the sub menu.
④ ◀(VOL) , ▶(VOL) button
◦ Access to the volume control menu directly when OSD disappeared.
◦ Increase or decrease selected value when OSD appeared.
⑤ CHANNEL button
◦ Select target image in the sequential routine.
(CAM1 → CMA2 → CAM3 → CAM4 → AUX → SPLIT2 → SPLIT3
→ SPLIT4 → CAM1 → ...)
⑥ CA1, CA2, CA3, CA4/AV button
◦ Select target camera or AV input directly.
FEATURES
 Multi-purpose QUAD control box
 Free Input voltage (DC 10V ~ DC 40V)
 NTSC / PAL Compatible
 4 camera inputs
 1 AV input
 1 AV output
 Shutter camera compatible (CA1~CA4)
 Various Display mode (Single / Split / Triple / Quad)
 Auto Picture function (5 trigger inputs)
 Trigger Output (12V DC, max. 100mA)
 Auto Scan function
 Simple OSD
3. Connection
Q'ty
1
1
1
1
1
1
1
①
④
< Camera Input (CA1~CA4) >
⑥
4. Specifications
ㆍCABLE REINFORCEMENT BRACKET
Fix the bracket jack with provided screws
after connecting the cameras.
CA1
CA2
CA3
CA4
Power / Trigger Input
1. DC12V Power
2. Audio In
2 3
3. DC 12V (Shutter)
1 4
4. Video In
5
5. Ground
Power Input DC 10V ~ 40V Input
Power Consumption Max. 25watt
NTSC / PAL Compatible
Video System
◊ 4 Camera Inputs : Mini DIN4, 1Vp-p 75Ω
◊ 1 A/V Input : - Video : RCA, CVBS, 1Vp-p, 75Ω
Connector
◊ 1 AV output : - Video : RCA, CVBS, 1Vp-p, 75Ω
Dimension 152(W) x 102(H) x 25(D)mm
Weight 360g
Owner's Manual
Video output
Audio output
Sensor signal input
Video input
Audio input
< Power/Trigger Wire >
BROWN TRIGGER 5 (DC 12/24V)
YELLOW TRIGGER 4 (DC 12/24V)
BLUE TRIGGER 3 (DC 12/24V)
WHITE TRIGGER 2 (DC 12/24V)
GREEN TRIGGER 1 DC 12/24V)
ORANGE Trigger Output (12V DC, max. 100mA)
BLACK GROUND
RED POWER IN (DC 10~40V)
- Audio : RCA, 150mVRMS
- Audio : RCA, 150mVRMS
