USER'S MANUAL

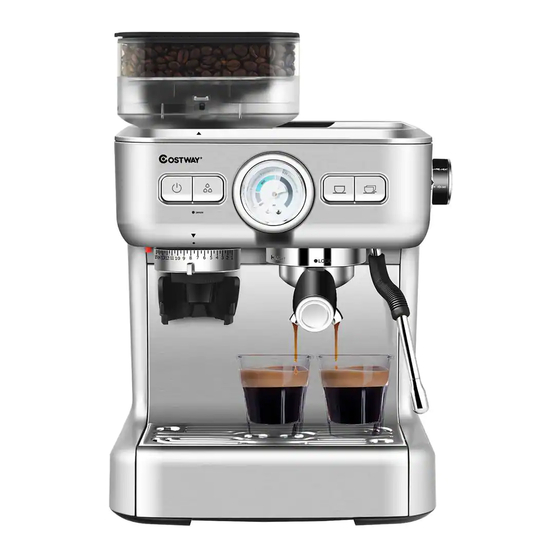

Coffee Maker with Grinder
EP24558US
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Follow Costway
Please give us a chance to make it right and do better！
Visit us: www.costway.com
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP!
Advertisement
Table of Contents
Related Manuals for Costway EP24558US
Summary of Contents for Costway EP24558US
- Page 1 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Follow Costway Please give us a chance to make it right and do better！ Visit us: www.costway.com Contact our friendly customer service department for help first. Replacements for missing or damaged parts will be shipped ASAP!
-
Page 2: Before You Start
Contact Us! Do NOT return this item. Contact our friendly customer service department for help first. E-mail US: cs.us@costway.com UK: cs.uk@costway.com Before You Start Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Before using the electrical appliance, the following basic precautions should always be followed including the following: 1.Read all instructions. 2.Before using check that the voltage of wall outlet corresponds to rated voltage marked on the rating plate. - Page 4 18.Connect plug to wall outlet before using and turn any switch off before plug is removed from wall outlet. 19.This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
-
Page 5: Know Your Coffee Maker
KNOW YOUR COFFEE MAKER... - Page 6 USER GUIDE...
-
Page 7: Control Panel
CONTROL PANEL Grinder Indicators Each button has a light indicator around, and there is a triangular light indicator on the fixing ring of steam knob. Preheating：Press the Power button once, the machine enters the preheating state, and the four indicators flash white in the form of a breathing lamp. The machine need around 10S to preheat. -
Page 8: Before The First Use
Steam preheating: In the standby state, turn the steam knob to the preheating position . At this time, the Power indicator is always white, the hot water, single cup and double cup indicators are off, and the steam indicator (triangle) flashes white. At this time, the steam function is preheating, and the steam indicator is always white, and the steam function is preheated. - Page 9 If you are grinding coffee beans for yourself, this step is a key step in the espresso making process and requires more practice. The coffee beans must be finely ground, and the adjustment knob can adjust the coarseness&fineness of ground coffee. The preset intermediate grind setting is optimal when the machine leaves the factory.
- Page 10 Fine Coarse 4. Make hot water: Press Hot water button, the Hot water button indicator flashes in the form of a breathing light; hot water flows out from hot water pipe, after dispensing 200ml hot water, the machine automatically stops and returns to standby mode. To stop the hot water function anytime, press the Hot water button again.
- Page 11 7.Produce steam to froth milk: Turn steam knob from off to preheat position, at this time the machine starts steam preheating, steam indicator flashes, when reaching steam preheating temperature, indicator keeps constant on, turn steam knob from preheat to Max position, the machine starts to produce steam, steam indicator flashes in the form of a breathing light during producing steam;...
-
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE Tip: The grinder of this coffee machine is detachable. The detailed detaching method is shown below: Detaching method: Press release button as shown, turn the adjustment knob to the maximum setting, and then turn it in the detaching direction shown in the figure to remove the grinder vertically. - Page 13 Attaching direction Detaching direction 1. Cut off power source and let the coffee maker cool down completely before cleaning. 2. Clean housing of coffee maker with moisture-proof sponge often and clean water tank, drip tray and removable shelf regularly then dry them.
-
Page 14: Cleaning Mineral Deposits
CLEANING MINERAL DEPOSITS To keep your coffee maker operating efficiently, you should clean away the mineral deposits left by the water regularly according to the water quality in your area and the frequency of use of the appliance, the detail is as follows: 1. -
Page 15: Troubleshooting
TROUBLE SHOOTING Symptom Cause Corrections Water leaks from the bottom There is much water in the Please clean the drip tray. of coffee maker. drip tray. coffee maker Please contact with the malfunction. authorized service facility for repairing. Water leaks out of outer side There is some coffee powder Get rid of them. -
Page 16: Environment Friendly Disposal
ENVIRONMENT FRIENDLY DISPOSAL You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal center. - Page 17 February 24, 2019 Great products so far. Fast delivery, easy setup, and working without any issues. With your inspiring rating, COSTWAY will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! US office: Fontana, California...
