Relay Output Cards
Features

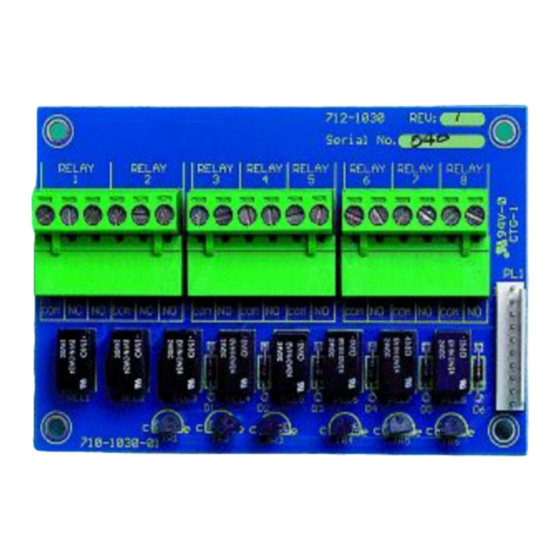

The Mxp-007 and Mxp-008 are internal peripherals for use with the MxPro 4 panels. The units connect
directly to the panel's motherboard and provide either 2 or 8 individually programmable 1-Amp rated, volt free,
clean contact outputs.
Each output can be individually assigned to an output group to provide full support for the MxPro 4 system's
DynamiX zoning facilities. In addition, each output has a number of programmable operational parameters
including fail-safe, can-silence, allow walk test and delayed operation.
These features not only aid commissioning and cut down on expensive ancillary hardware but also allow the
system to be easily configured to provide full support for the more complex cause and effect configurations
using standard products.
www.acornfiresecurity.com
www.acornfiresecurity.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MXPro4 Mxp-007 and is the answer not in the manual?

Questions and answers

Summary of Contents for Advanced Electronics MXPro4 Mxp-007

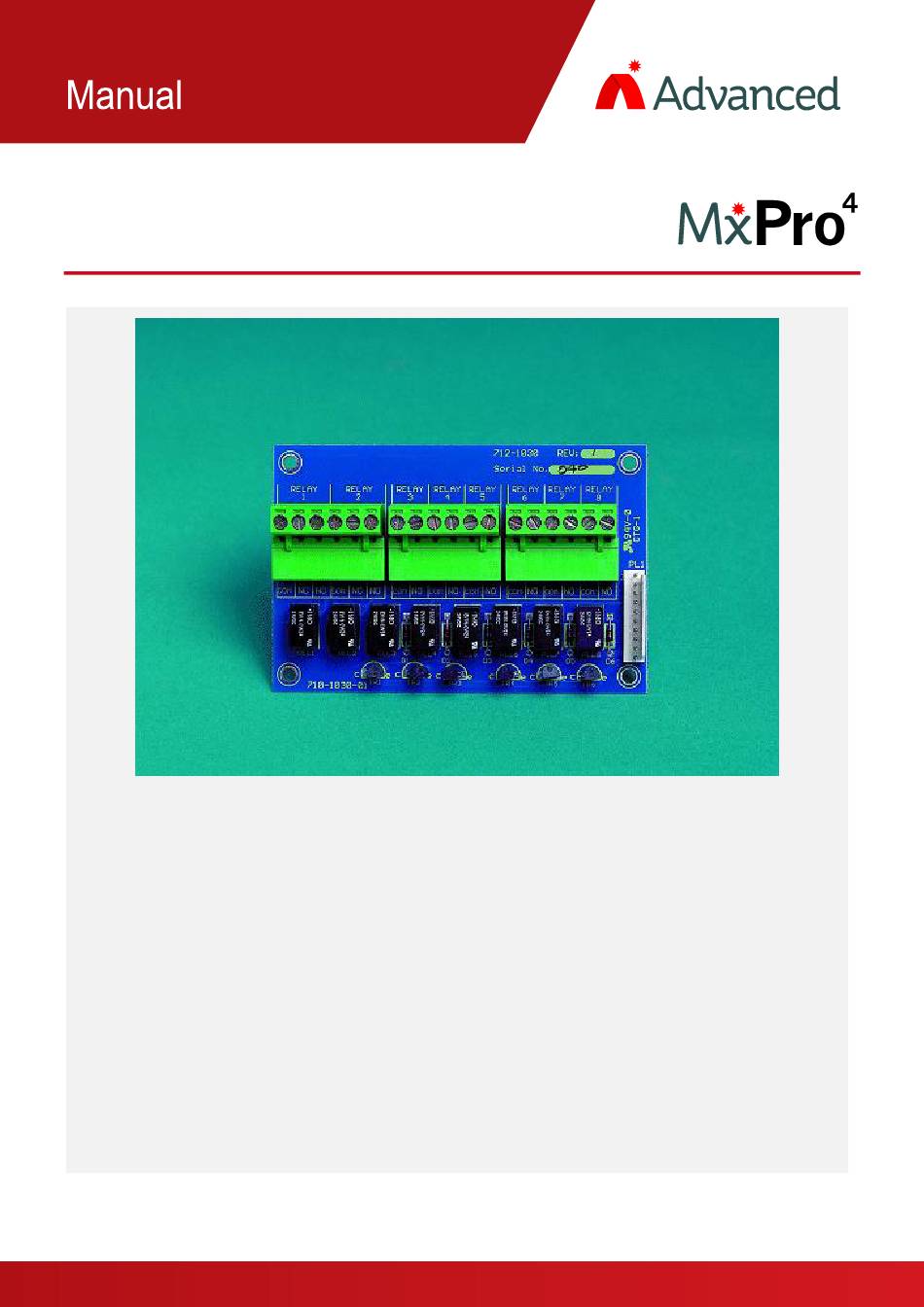

  • Page 1 www.acornfiresecurity.com Relay Output Cards Features The Mxp-007 and Mxp-008 are internal peripherals for use with the MxPro 4 panels. The units connect directly to the panel’s motherboard and provide either 2 or 8 individually programmable 1-Amp rated, volt free, clean contact outputs. Each output can be individually assigned to an output group to provide full support for the MxPro 4 system’s DynamiX zoning facilities.
  • Page 2 www.acornfiresecurity.com Specifications & Ordering: Models, Sales Order Parts: Mxp-007: 2 Way Relay Output Card Mxp-007F: 2 Way Relay Output Card fitted within an Mx4100/L, Mx4200, Mx4400 or Mx-4800 control panel Mxp-008: 8 Way Relay Output Card Mxp-008F: 8 Way Relay Output Card fitted within an Mx4200, Mx4400 or Mx-4800 control panel Applications / Limitations: Ideal for any application where a number of programmable outputs are required at the panel.
  • Page 3: Table Of Contents

    www.acornfiresecurity.com Table of Contents Page INSTALLATION ..............................4 -007 -4100/L ....................4 NSTALLING THE IN THE 1.1.1 Mounting the Card........................... 4 1.1.2 Internal Wiring ............................4 -007 -4200/M -4400/M -4800 ..............4 NSTALLING THE IN THE 1.2.1 Mounting the Card........................... 4 1.2.2 Internal Wiring ............................
  • Page 4: Installation

    www.acornfiresecurity.com 1 Installation 1.1 Installing the Mxp-007 in the Mx-4100/L 1.1.1 Mounting the Card The card mounts on 4 pillars in the rear of the enclosure. See diagram opposite. Screw in the four spacers supplied into the threaded inserts in the back box.
  • Page 5: Installing The Mxp-008 In The Mx-4200/Mx-4400/Mx-4800

    www.acornfiresecurity.com 1.3 Installing the Mxp-008 in the Mx-4200/Mx-4400/Mx-4800 1.3.1 Mounting the Card The card mounts on 4 pillars in the top left hand corner of the control panel chassis adjacent to the Mx4200/Mx 4400 base card. See diagram opposite. Use the four M3 screws supplied to securely affix the card to the chassis.
  • Page 6: Program The Relay Outputs

    www.acornfiresecurity.com Program the Relay Outputs. Each relay output can be independently programmed in the same way as other outputs on the panel. On the PC configuration software the outputs are under the “On-board” devices and shown as “Panel O/C-1” through to “Panel O/C-8”. O/C-1 and O/C-2 only for the Mxp-007 O/C-1 to O/C-8 for the Mxp-008 By default, the relays are all in the same Output Group, 199, but this can be changed as required.
  • Page 7: May Silence

    www.acornfiresecurity.com 2.1 May Silence: If this parameter is ticked, the relay will behave in a similar manner to a sounder circuit output. It will energise as defined by their “Output Group” setting and de-energise when the “Silence” key is pressed. 2.2 Inverted Output: relay will behave in a manner similar to a “Fault”...
  • Page 8 www.acornfiresecurity.com This page is intentionally left blank. www.acornfiresecurity.com...
  • Page 9 www.acornfiresecurity.com USER NOTES www.acornfiresecurity.com...
  • Page 10 www.acornfiresecurity.com www.acornfiresecurity.com...
