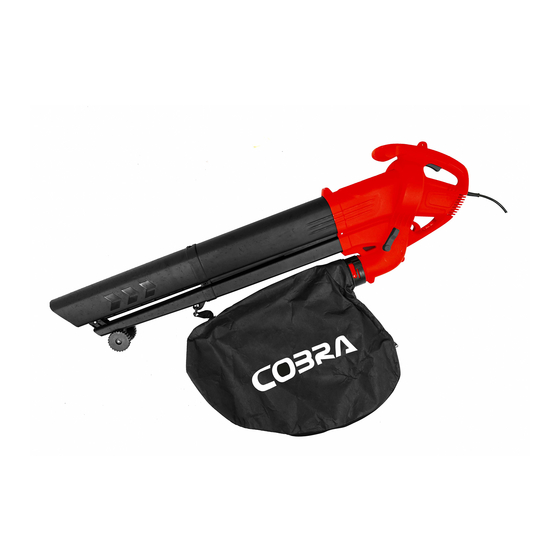

Cobra BV3001E Owner's Manual

Electric leaf blower vac
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

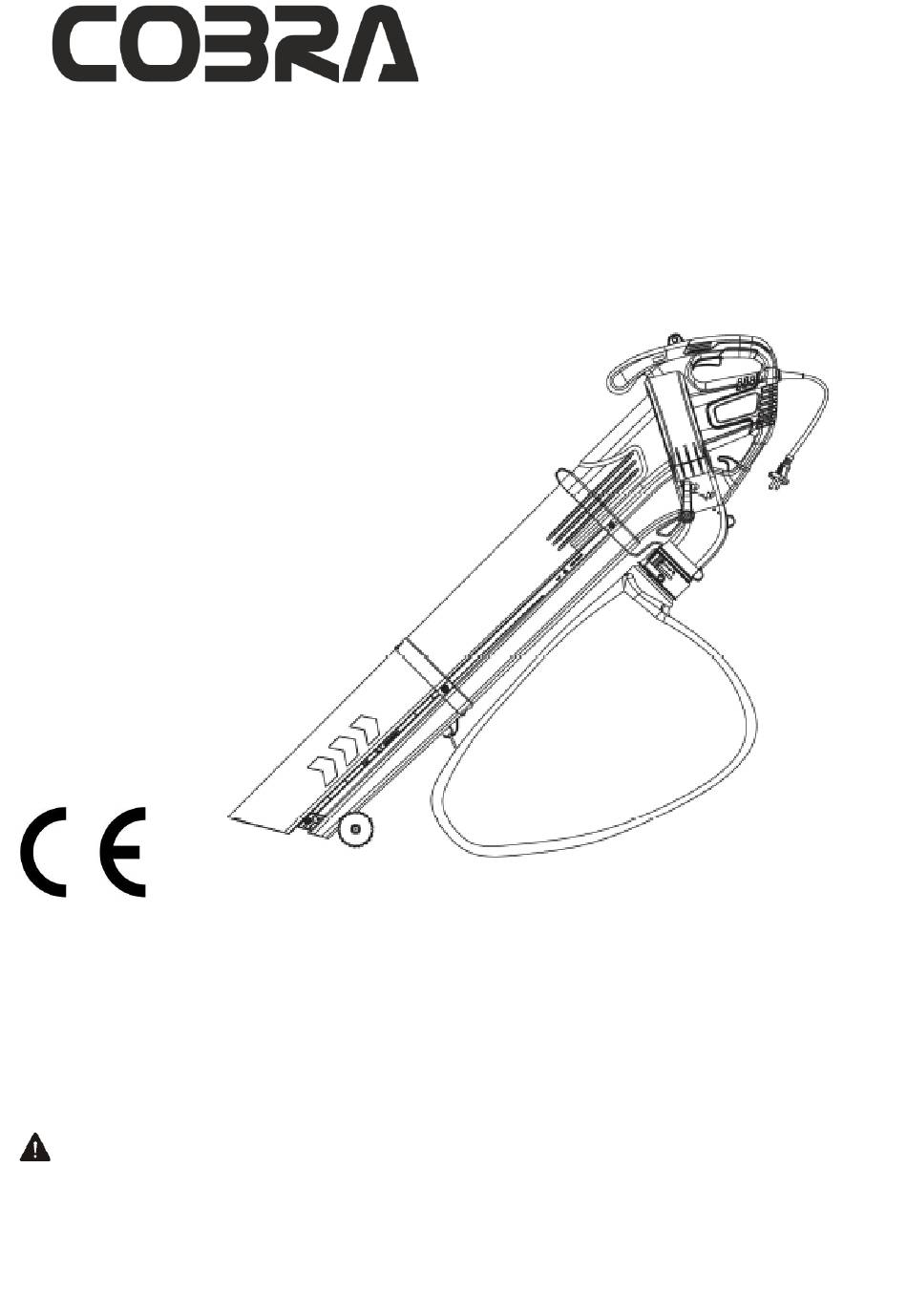

MODEL: BV3001E (YT6217)
COBRA
ELECTRIC LEAF BLOWER VAC
OWNER'S MANUAL
Cobra Garden Machinery
Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK
www.cobragarden.co.uk
WARNING：
For your own safety please read this manual before attempting to operate your new tool. Failure to follow
instructions can result in serious personal injury. Spend a few moments to familiarize yourself with your garden
tool before each use. Keep this manual in a safe place, so that the information is available at all times. If you
give the equipment to any other person, hand over these operating instructions and safety regulations as well.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BV3001E and is the answer not in the manual?

Questions and answers

Related Manuals for Cobra BV3001E

Summary of Contents for Cobra BV3001E

  • Page 1 MODEL: BV3001E (YT6217) COBRA ELECTRIC LEAF BLOWER VAC OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk WARNING： For your own safety please read this manual before attempting to operate your new tool. Failure to follow instructions can result in serious personal injury.

  • Page 2: Symbols Marked On The Product

    1. SYMBOLS MARKED ON THE PRODUCT Read operator's manual Read the instruction manual before using the appliance. Keep bystanders away. Wear eye and ear protection. Keep hands out of rotation fan. Do not use this product in the rain or leave outdoors while it is raining. CE Marking The product meets demands and regulations set by the European Community.

  • Page 3: General Safety Rules

    2. GENERAL SAFETY RULES General Power Tool Safety Warnings WARNING： Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”...

  • Page 4: Additional Warnings

    c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

  • Page 5: Maintenance And Storage

    ● If the appliance starts to vibrate abnormally. ● Do not place the inlet or outlet of the Blower near eyes or ears when operating. Never blow debris in the direction of bystanders. ● Do not use in the rain or leave outdoors while it is raining. ●...

  • Page 6: Parts Description

    3. PARTS DESCRIPTION On/Off switch Hook Main handle Guide roller Power cord with plug 10 Lower tube set Cord retainer 11 Upper tube set Mode lever 12 Front carrying handle Outlet nozzle 13 Harness hold clip Collection bag 14 Carrying harness 7a Connector 15 Air vents 7b Hanging loop...

  • Page 7: Technical Data

    4. TECHNICAL DATA Rated voltage: 220-240V 50Hz Rated input 3000W No load speed 15,000 /min Weight: 4.3kg Air velocity 145 mph Air volume 380 cfm Collection bag 35 l Mulch ratio 10:1 Measured sound power LPA = 86 dB(A) level: Guaranteed sound power LWA.d: 100 dB(A) level:...
  • Page 8 3. Insert the hanging loop of collection bag into hook (Fig. 2). 4. Align the connector on the collection bag with the outlet nozzle, pin of outlet nozzle into slot of connector and insert it all the way to the stop. Turn the connector counterclockwise until the pin of outlet nozzle is locked in the ring of connector .
  • Page 9 3. Move the lever to the down position to use the product as a blower (fig. 5). 4. Always ensure that the lever is adjusted in either end positions. Do not use it in any other position. Fitting the harness The single harness is adjustable to suit the operator.
  • Page 10 Operating Hours Only operate the product at reasonable hours - not early in the morning, late at night. Check with your local authorities if there are any specific restrictions. Switching On and Off Before you start the machine, make sure that the collection bag is connected correctly and the shoulder strap ensures the correct posture.

  • Page 11: Maintenance

    Connect to the plug the socket. Use an Not connected to the power supply RCD protected socket. Device does not start Power cord or plug are defective Contact your Cobra service centre Defective electrical component Use an extension cable to the correct Unsuitable extension cable specification.

  • Page 12: Warranty

    Any damage that occurs from the use of non-genuine Cobra parts will not be covered. We reserve the right to reject any claim where the purchase cannot be verified or when it is clear that the product was not maintained properly.

  • Page 13: Ec Declaration Of Conformity

    11. EC-DECLARATION OF CONFORMITY EC Declaration of Conformity We herewith declare, Cobra Garden Machinery, Henton & Chattell Ltd, London Road, Nottingham NG2 3HW UK That the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
