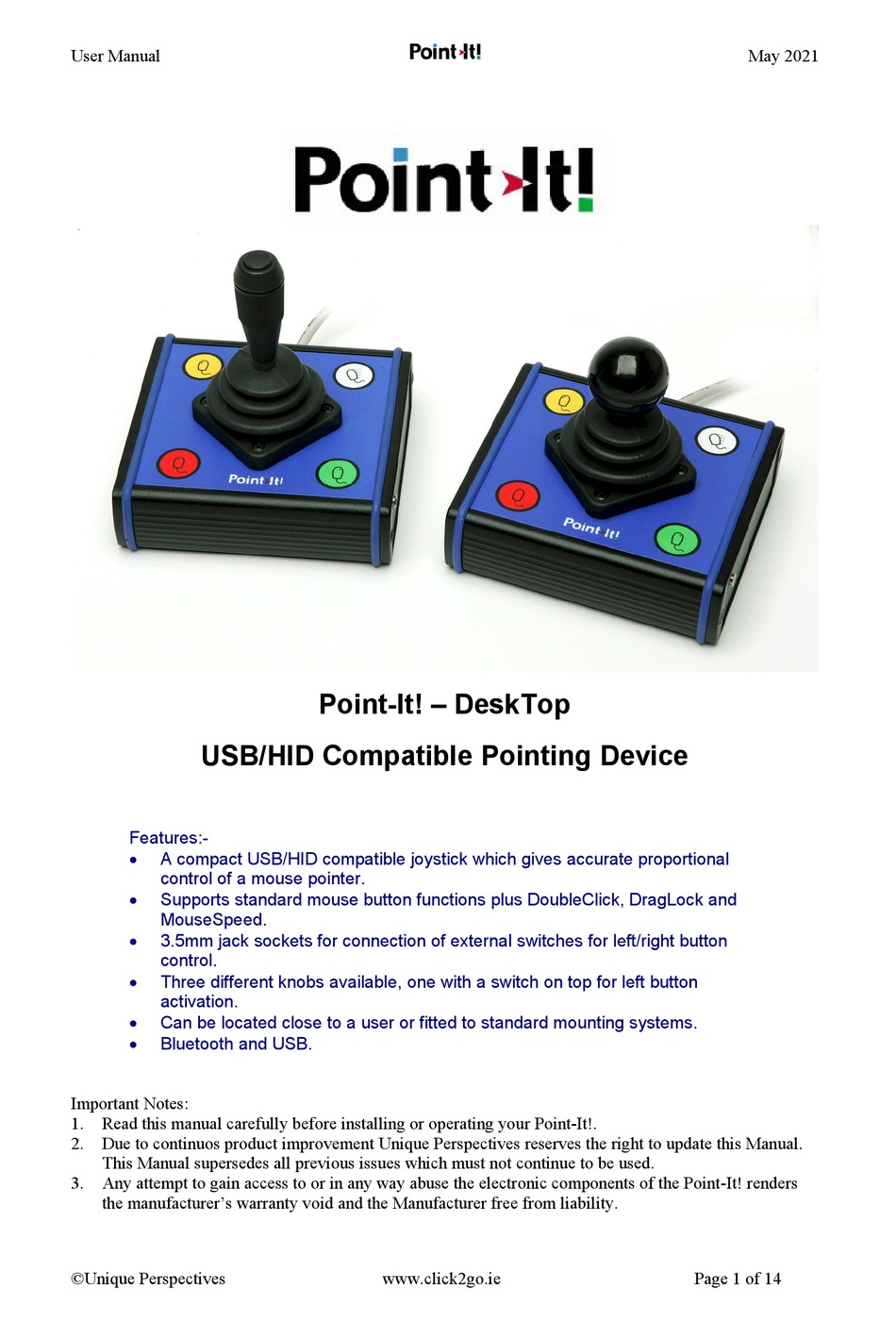

User Manual
USB/HID Compatible Pointing Device
Features:-
A compact USB/HID compatible joystick which gives accurate proportional
control of a mouse pointer.
Supports standard mouse button functions plus DoubleClick, DragLock and
MouseSpeed.
3.5mm jack sockets for connection of external switches for left/right button
control.
Three different knobs available, one with a switch on top for left button
activation.
Can be located close to a user or fitted to standard mounting systems.
Bluetooth and USB.
Important Notes:
1. Read this manual carefully before installing or operating your Point-It!.
2. Due to continuos product improvement Unique Perspectives reserves the right to update this Manual.
This Manual supersedes all previous issues which must not continue to be used.
3. Any attempt to gain access to or in any way abuse the electronic components of the Point-It! renders
the manufacturer's warranty void and the Manufacturer free from liability.
©Unique Perspectives
Point-It! – DeskTop
www.click2go.ie
May 2021
Page 1 of 14
Advertisement
Table of Contents
Related Manuals for Unique Perspectives Point-It!
Summary of Contents for Unique Perspectives Point-It!
- Page 1 Important Notes: 1. Read this manual carefully before installing or operating your Point-It!. 2. Due to continuos product improvement Unique Perspectives reserves the right to update this Manual. This Manual supersedes all previous issues which must not continue to be used.
-
Page 2: Table Of Contents
User Manual May 2021 Contents Page Introduction Specifications Installation Operation Connections Maintenance Safety and Misuse warnings Warranty Sales and Service Information 10. CE Marking ©Unique Perspectives www.click2go.ie Page 2 of 14... -
Page 3: Introduction
3.5mm jack sockets allow connection of standard switches for those who find it difficult to operate the switches on the unit itself. DragLock feature allows a user to drag without having to keep the left button pressed. ©Unique Perspectives www.click2go.ie Page 3 of 14... -
Page 4: Specifications
The Point-It! is for indoor use only. The Point-It ! can be connected to a PC/MAC/Android or iOS device. ©Unique Perspectives www.click2go.ie Page 4 of 14... -
Page 5: Installation
M4 screws. The choice and construction of the mount will depend upon the user’s needs. Warning !! For safe installation, select a screw length between 6mm and 10mm. Dimensions of the mounting position is shown below:- AbleNet Jellybean switch mounting plate Super Mount 2.5inches ©Unique Perspectives www.click2go.ie Page 5 of 14... - Page 6 Go to Settings on your device and click on the Scan button. When turned on, the Point-It! should appear as a standard Human Interface Device (HID). Follow the pairing procedure for your target device. ©Unique Perspectives www.click2go.ie Page 6 of 14...
-
Page 7: Operation
1. The Left Mouse Button is also controlled by the button located at the top of the joystick (standard knob only). 2. You can disable the button at the top of the joystick knob by inserting a 3.5mm plug into the left mouse button socket. ©Unique Perspectives www.click2go.ie Page 7 of 14... - Page 8 A range of knob alternatives are now available for the Point-It! joystick including Chin, Sponge, Carrot, DX, Wrist plate, T-Bar and more. These knobs are only inter-changeable with the Ball Knob version of the Point-It! joystick. ©Unique Perspectives www.click2go.ie Page 8 of 14...
-
Page 9: Connections
Go to Settings on your device and click on the Scan button. The Point-It! should appear as a standard Human Interface Device (HID). Follow the pairing procedure for your platform. Note: You must specify when ordering whether you require a USB or Bluetooth version. ©Unique Perspectives www.click2go.ie Page 9 of 14... -
Page 10: Maintenance
In accordance with the requirements of CE marking of this device and the Company’s policy, it is requested that re-occurring faults or defects be reported back to Unique Perspectives Ltd. Warning !! If the Point-It ! is damaged in any way, or if internal damage may have occurred (for example by being dropped), have it checked by qualified personnel before operating. -
Page 11: Safety And Misuse Warnings
While the manufacturer has made every effort to ensure that RFI does not cause problems, very strong signals could still cause a problem. Report any malfunctions immediately to your Service Agent. ©Unique Perspectives www.click2go.ie Page 11 of 14... -
Page 12: Warranty
May 2021 Warranty All equipment supplied by Unique Perspectives Ltd. is warranted by the company to be free from faulty materials or workmanship. If any defect is found within the warranty period of 12 months, the company will repair the equipment, or at its discretion, replace the equipment without charge for materials and labor. -
Page 13: Sales And Service Information
User Manual May 2021 Sales and Service Information For Sales and Service advice, or in case of any difficulty, please contact: Unique Perspectives Ltd. Telephone: +353 56 7725913 Ballyclovan Fax: +353 56 7725936 Callan Kilkenny Ireland WEB: www.housemate.ie EMAIL: info@housemate.ie NOTE: The Point-It! should be clearly labeled with the manufacturer’s service... -
Page 14: Ce Marking
EN ISO 13485 – Medical device – Quality management system – Requirements for regulatory purposes EN60601-1-2: 2011 EN 55016-2-3 (2010) & A1 (2010) - Emissions EN61000-4-2 (2009) – Electrostatic discharge EN61000-4-3 (2006) – Immunity R&TTE Directive 1999/5/EC ©Unique Perspectives www.click2go.ie Page 14 of 14...
