Summary of Contents for DS18 DDX6.9ML
- Page 1 DDX6.9ML 6.9" DOUBLE DIN MULTIMEDIA RECEIVER WITH MIRROR-LINK FOR IOS & ANDROID BT/AUX/USB/SD/AM/FM OWNER’S MANUAL...
-
Page 3: Mp3 /Wma/ Jpeg
DDX6.9ML IMPORTANT NOTICE & PRECAUTIONS Thank you for using our DS18 multi-media player! To operate the unit correctly, please read the operation manual carefully before using. Keep this operation manual for further reference. The unit is designed only for DC 12V negative ground operation system. -
Page 4: Wiring Connections
WIRING CONNECTIONS REMARKS Due to the law of some countries, video playback is not allowed, during driving. To allow video playback during driving, the brown wire (brake) should be connected to ground (b-) of the car battery. Thick Reverse Lamp Output Thin Ilumination Detection input (B+) - Page 5 DDX6.9ML MAIN UNIT OPERATIONS function operations & controls Press to activate operation. For voice reception under BT operation. Remote control sensor for signal reception from remote handset. Press to shift between MAIN MENU & current operatIon mode. For rotary control version, rotate to adjust sound output level.
- Page 6 MAIN UNIT OPERATIONS function operations & controls Insert an external device to this jack in order to have sound output of that external device through the unit. Insert micro SD card to this port for digital files playback It shows the status of operation on the unit. This screen is also a touch-screen display - tap the screen softly for different operations of unit (refer to other parts of this manual for operation details).
- Page 7 DDX6.9ML ON SCREEN - MAIN MENU OPERATIONS operations & controls Touch to start radio operation (when the radio antenna connected). Touch to start BT operation (when mobile phone connected). Touch to start mobile phone mirror linking operation (when the mobile phone connected to the front usb port).

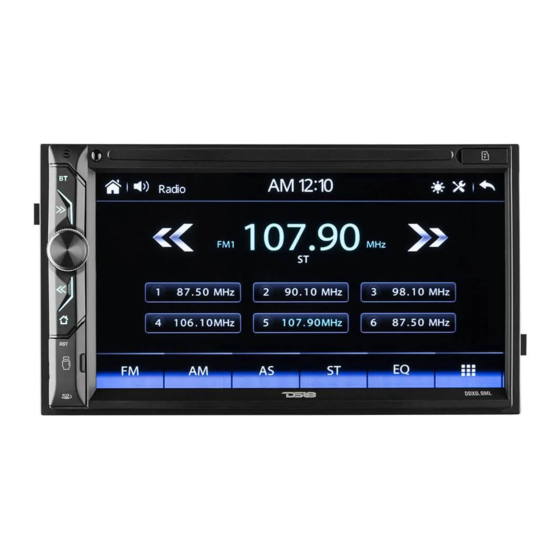

- Page 8 ON SCREEN - RADIO OPERATION At MAIN MENU, touch to shi to radio mode operations & controls Touch to shift to MAIN MENU for selection of various operation and setup. Touch repeatedly to select brightness of screen or turn off the screen. Turn off of screen is available under headlamp detection at OFF mode.
- Page 9 DDX6.9ML ON SCREEN - RADIO OPERATION operations & controls Touch to activate EQ operation. Touch to input the exact frequency which users wants. Touch to select local (LOC) setting for reception of strong signal stations and a distant setting for reception of weak stations at FM radio band. When local (LOC) setting is selected, LOC will be appeared on screen and this is no indication for distant setting.
- Page 10 - Set the mobile phone on BT state - Start to search new device - After searched, new device (DDX6.9ML) searched out, confirm the search - In case of need, input default code “0000” or “8888”...
- Page 11 DDX6.9ML ON SCREEN - MOBILE PHONE LINKING OPERATION At MAIN MENU, touch to shi to mobile phone linking mode For iOS devices (supported iPhone 5 to iPhone XS), mobile phone linking operation will start automatically without any setting. Mirror linking appeared on the screen.
- Page 12 ON SCREEN - USB/SD CARD INPUT OPERATION At MAIN MENU, touch to shi to multi-media playback mode Playback will start automatically. Depends on the input device and playback media, touch on screen (at music playback, touch repetedly on screen) to show various playback menus for operation. operations &...
- Page 13 DDX6.9ML ON SCREEN - MOBILE PHONE LINKING OPERATION At MAIN MENU, touch to shi to various setup selection of the unit. operations & controls Touch to shift to System SETUP MENU for various system setting. Touch to shift to Language SETUP MENU for various language setting.
- Page 14 ON SCREEN - AUXILIARY INPUT OPERATION At MAIN MENU, touch To shift to auxiliary input operation (provided an auxiliary video device had been connected). At auxiliary input operation, touch any portion of screen to activate AV INPUT MENU for operation. ON SCREEN - SWC OPERATION At MAIN MENU, touch To shift to activate SWC STUDY MENU for steering wheel control.
-
Page 15: App Control
DDX6.9ML APP CONTROL Download the APP: DS18 DDXRC in the Google Play for your Android Device After the APP is intalled, make sure the Radio is ON, now you can open the APP in your phone, the setup screen is the first screen that you will see: The Radio must appear in the list, tap it and this will be “Connected”... - Page 16 The main screen is showing all the basic functions to control your DS18 Radio: EQ and Audio Controls Mute Source Playing Track Info Main Volume Radio Mode (FM/AM) Play / Pause Seek (Previous/Next) Source Selector Setup Menu Exit the APP...
-
Page 17: Specifications
DDX6.9ML SPECIFICATIONS General: Rated power source: 14.4V DC (10.8V to 15V operation) 14.4V DC (10.8V to 15V operation) Maximum Current Consumption: 10 Amp 10 Amp Dimensions (W x H x D): Chassis: 178mm x 100mm x 135mm Chassis: 178mm x 100mm x 165mm... -
Page 18: Simple Troubleshooting
SIMPLE TROUBLE SHOOTING Problems, Causes & Solutions... - Page 20 DDX6.9ML 6.9" DOUBLE DIN MULTIMEDIA RECEIVER WITH MIRROR-LINK FOR IOS & ANDROID BT/AUX/USB/SD/AM/FM OWNER’S MANUAL...
