Esperia KRH-M505 Owner's Manual

KRH-M505
Owner's manual
12/24V DAB/DAB+/Bluetooth®/
USB/MP3/WMA/FM/MW Stereo Radio
Thank you for purchasing this product.
Please read this instruction manual to the end before use so that you can fully utilize the functions
of this machine and use it effectively.
After reading it, please keep it in a safe place. It is always useful if you have any questions or
problems during use.
Also, if you operate the machine while driving, you may be careless in front of you and cause an
accident. Therefore, be sure to stop the car in a safe place before operating the machine.
About the waterproof performance of this machine
(１)This machine is not waterproof. The front panel is drip-proof, but do not splash water directly on it.
Surroundings and inside Water may get into the part and cause a fire, electric shock, or malfunction.
(２)Make sure that the rubber cap is completely closed before use.
(３)Do not give a shock to this machine. Damage may cause deterioration of waterproof performance.

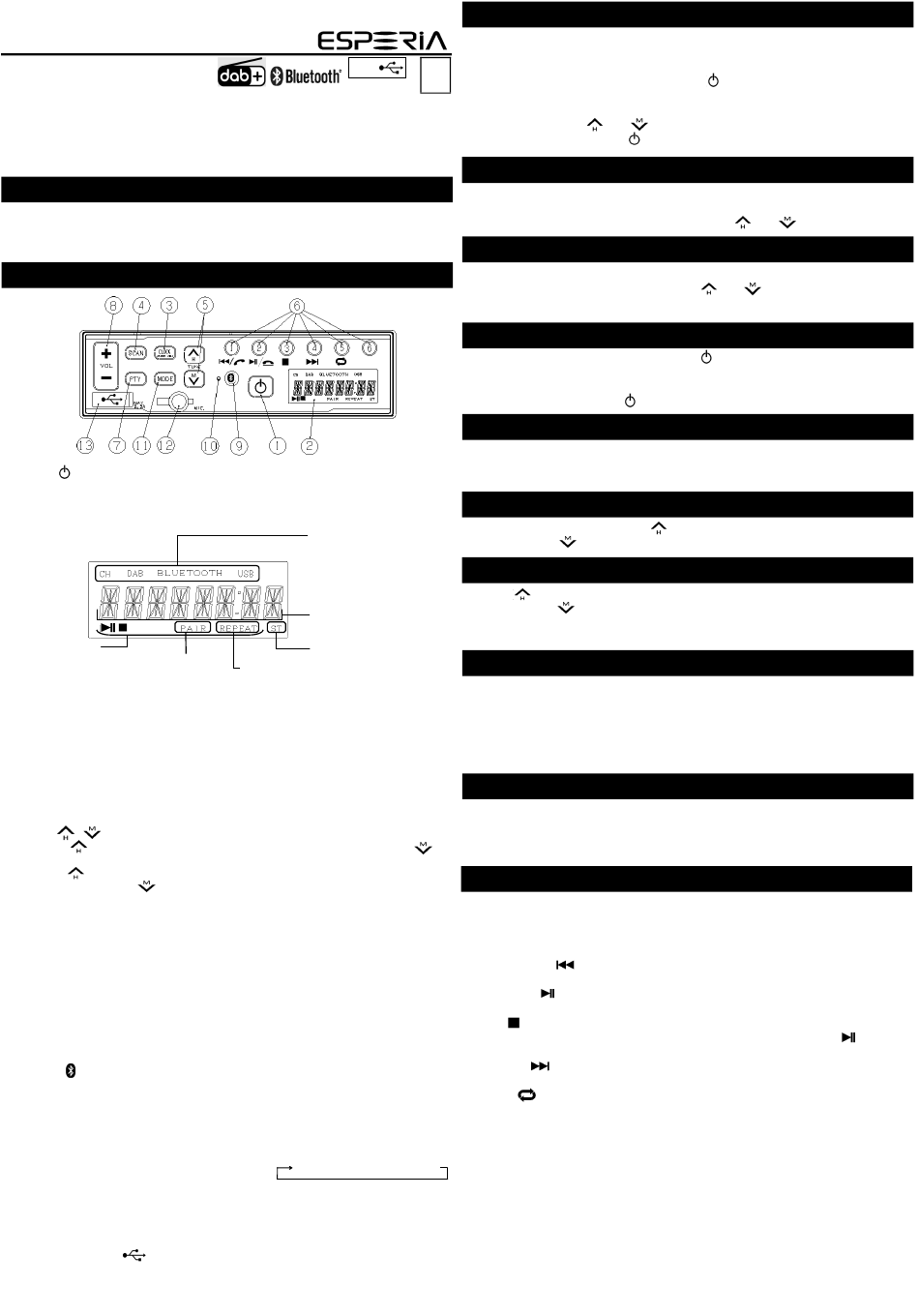

Operational Panel
① Power [ ] Button
Press the button to power ON. Press again to power OFF.
② LCD (Liquid Crystal Display)
The receiving band and frequency or the current time will be indicated on the display.
Audio Operations
※For Bluetooth Mode or USB Mode only
Bluetooth
Pairing display
③ Clock [CLOCK ] Button
CLOCK ADJ.
While receiving radio, press the button to change the display to a clock, and press it again to dis-
play the frequency.
If you press and hold (2 seconds or more), "ADJ" will be displayed on the display,
"Clock" will blink and the clock adjustment mode will be set.
In DAB mode, pressing this button will switch the LCD display.
PTY-> Frequency-> Clock-> LIST
④ Scan [SCAN] Button
In radio mode, press the button to start searching for stations and preset receivable stations.
Buttons ① to ⑥ can be automatically memorized.
⑤ Tuning [ , ] Buttons
Press the [ ] button to increase the reception frequency by one step, and press the [
button to decrease the reception frequency by one step. (Manual channel selection)
Press the [ ] button for 2 seconds or longer, the frequency will automatically change to the
higher side, and press the [ ] button for 2 seconds or longer, the frequency will automatically
change to the lower side, searches for a broadcasting station, and stops when it can be received.
If you want to stop in the middle press again. (Seek channel selection)
⑥ Preset Memory [①～⑥] Buttons (Bluetooth control, USB button combined)
One FM and one MW station can be preset memory for each button.
※For Bluetooth mode and USB mode operations, "Play audio of Bluetooth device" and "USB
Operations" please see.
⑦ Program type [PTY] (DAB/DAB+ ) Button ※Broadcast target area
Select the type of station you are listening to Pop, classical, news and more.
⑧ Volume Control [VOL＋,－] Buttons
Press the [ VOL+ ] button to increase the sound volume, press the [ VOL– ] button to decrease the
sound volume. Press and hold to change the sound volume continuously.
Button
⑨ Bluetooth [ ]
Press the button to connect to the last Bluetooth compatible device that has registered (Pairing).
Press the button until you hear a beep, connection (registration) is released and the pairing stand-
by mode is set.
⑩ Bluetooth LED
When this LED lights up, the Bluetooth device is connected. Flashes in pairing standby mode.
⑪ Mode Select [MODE] Button
Press the button to switch the operation modes as shown.
In Bluetooth mode and USB mode, the display switches from frequency to clock.
⑫ Mic-IN jack（ Mic In Put）
When using, open the rubber cap and connect a commercially available microphone (φ3.5mm).
※Be sure to close the rubber cap when not in use.
⑬ USB Input Terminal ( ) ※Type A
When using, open the rubber cap and connect it to the USB memory using a commercially available
USB extension cable. If you cannot use the extension cable, use a short type USB memory.
※Be sure to close the rubber cap when not in use.
USB
MP3/WMA
Functions
CH : Radio Mode
DAB : DAB Mode
BLUETOOTH：Bluetooth Mode
USB : USB Mode
Radio Mode , Frequency,
Preset Memory/
Volume/Clock/Text
FM Stereo
For USB Mode only
FM → MW → DAB → BT→ USB
Listening the DAB/DAB+
DAB is one of the digital radio broadcasting systems currently available.
It can provide digital quality sound without annoying interference or signal distortion. In addition, it can
24V
carry text and data.
(１) Turn the ignition key to ACC or ON, and press the [
12V
(２) With the [MODE] button, select DAB.
(３) Press the [SCAN] button to automatically scan and memorize the stations that can be displayed.
(４) Use the [① ～ ⑥] or [
(５) To turn off the radio, press the [
DAB/DAB+ Frequency Manual tuning
(１) Press the [CLOCK, clock ADJ] button to switch the LCD display.
PTY-> Frequency-> Clock-> List No,
(2) Select the desired broadcasting station by pressing the [
DAB/DAB+ PTY Manual tuning
Select the desired program type (PTY) from the station types that can be selected
by pressing the [PTY] button, and then pressing the [
select from pop, classic, news, and so on.
Listening the radio
(１) Set the ignition key to ACC or ON and press the [
(2) Select the desired band FM or MW by the [MODE] button.
(3) Use the preset memory button or tuning button to select a channel and adjust the volume.
(４) To turn off the radio, press the [
Receiving FM stereo broadcasting
When you receive an FM stereo broadcast, "ST" will appear on the display. When the reception con-
dition deteriorates, it automatically switches to monaural with less noise and the "ST" display disap-
pears.
Radio Manual tuning
Select the channel manually. Press the [
step, and press the [ ] button to decrease the reception frequency by one step.
Radio SEEK tuning
Press the [ ] button for 2 seconds or longer, the frequency will automatically change to the higher
side, and press the [ ] button for 2 seconds or longer, the frequency will automatically change to
the lower side, searches for a broadcasting station, and stops when it can be received. If you want
to stop in the middle press again.
Memorizing radio station to the memory
(１) Press the [MODE] button to select FM or MW and select the desired station.
(２) Then search the desired station by the seek or the manual tuning.
(３) Press any button (from ① to ⑥) for 3 seconds or longer.
※If you press the button that has been preset memory for 3 seconds or longer, the preset frequency
will be overwritten with the current frequency.
※You can preset memory for each FM and MW station for each button.
Auto Store Memory
During the radio mode, by pressing and releasing [SCAN] button will automatically store a strong signal station in
memory from the channel ① to the channel ⑥.
CAUTION:
・Auto store memory overwrites previously stored stations.
]
・If the desired button does not memorize, please preset it manually.
USB Operations
Connect a USB storage device to USB socket on the this unit.
Press the [MODE] button and select the USB mode.
("USB"will be displayed on the display, it becomes a clock display.)
When playing back a USB memory, you can perform the following operations with the preset memory buttons ① to ⑤.
① Previous Track [ ] Button
Skip to the previous track. Press and hold this button to rewind fast-rewind.
② Play/Pause [ ] Button
Pause or resume playback.
③ Stop [ ] Button
If you press the button during playback, playback will stop. When you press the play / pause [
button, the beginning of the song that was playing. Playback starts from.
④ Next Track [ ] Button
Skip to the next track. Press and hold this button to rewind fast-forward.
⑤ Repeat [ ] Button
Repeat the current track. Press the repeat button again, turn off the repeat mode.
CAUTION: ・We do not guarantee the connection with all USB memory.
・USB memory playback model is audio compression method MP3 (MPEG-1 Audio Layer3
(～192kbps)), WMA (Windows Media Audio) , play the saved file.
・Insert and remove the USB memory in a mode other than USB mode.
・When connecting to a USB memory, use a commercially available USB extension cable. If
the extension cable cannot be used Please use a short type USB memory.
・Do not connect any device other than USB memory. Smartphones cannot be charged.
・Even if the data on the USB memory is lost or damaged when used in combination with
this unit, we are not responsible for the compensation. Please note that we cannot take
responsibility.
