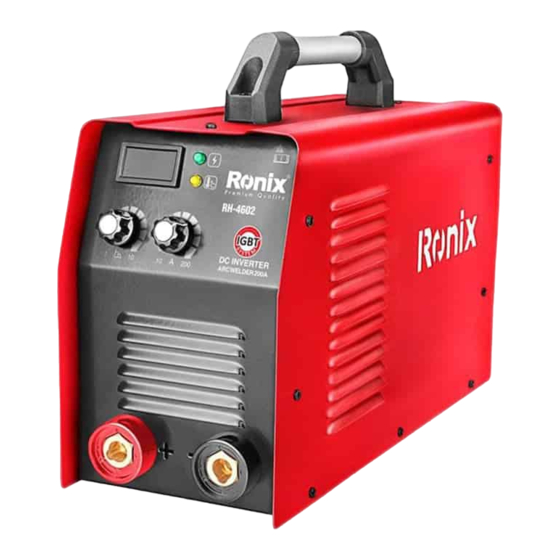

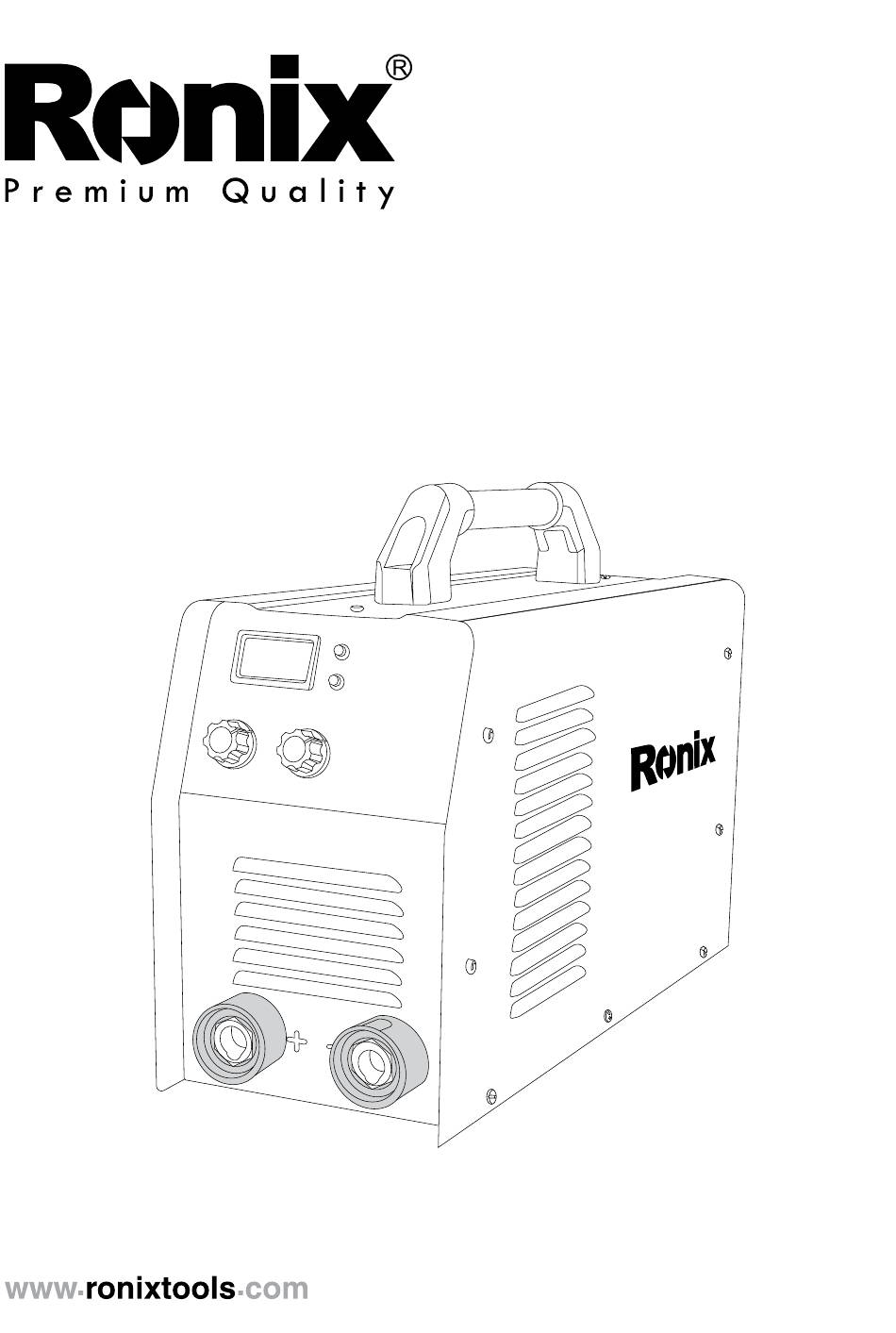

- Page 1 ARC WELDING INVERTER RH-4602...
-
Page 2: Technical Data
TECHNICAL DATA Model RH-4602 Rated Input voltage 220V Rated Input Power 8.2 KVA Rated Output Power 200A Welding Current Range 10-200A No Load voltage Rated duty Cycle Weight SAFETY Welding is dangerous, and may cause damage to you and others, so take good protection when welding. - Page 3 Keep the working environment properly ventilated with exhaust or ventilation equipment when welding. Arc radiation-may damage eyes or burn skin Wear suitable welding masks and protective clothing to protect your eyes and bod. Use suitable masks or screens to protect spectators from harm. Improper operation may cause fire or explosion Welding sparks may result in a fire, so please make sure there are no combustible materials nearby and pay attention to fire hazard.
-
Page 4: General Description
GENERAL DESCRIPTION Advanced IGBT inverter technology High inverter frequency greatly reduces the volume and weight of the welder. Great reduction in magnetic and resistance loss obviously enhances the welding efficiency and energy saving effect. Switching frequency is beyond audio range, which almost eliminates noise pollution. -
Page 5: Installation, Debugging And Operation
BACK CONTROL PANEL (SEE FIGURE 2) Power switch: Power ON/OFF switch. Power input: Power input cable Power LED Overheating LED Digital meter power Arc force current knob switch Welding current knob Power Output terminal input cable (electrode holder) Output terminal (work clamp) INSTALLATION, DEBUGGING AND OPERATION NOTE:... - Page 6 5) Insert the cable plug with work clamp into the socket on the front panel of the welding machine, and tighten it clockwise 6) Ground connection is needed for safety purpose. The connection as mentioned above in 6.1(4) and 6.1(5)is DCEP connection. Operator can choose DCEN connection according to work piece and electrode application requirement.
-
Page 7: Working Environment
NOTE: This table is suitable for mild steel welding. For other materials, consult related materials and welding process for reference. WORKING ENVIRONMENT CAUTION: 1) Welding should be carried out in dry environment with humidity of 90% or less. 2) The temperature of the working environment should be between -10c and 40c. -
Page 8: Maintenance
Remember to observe the max load current at any moment (refer to the corresponding duty cycle). Make sure that the welding current should not exceed the max load current. Overload could obviously shorten the machines lifespan, or even damage the machine 2.3 Over-voltage is forbidden Regarding the power supply voltage range of the machine, please refer to «Main Parameters»... -
Page 9: Troubleshooting
a proper level in order to avoid the small parts inside the machine being damaged. 4. Avoid rain, water and vapor infiltrating the machine. If there is, dry it and check the insulation of the equipment (including that between the connections and that between the connection and the enclosure). - Page 10 COMMON MALFUNCTION ANALYSIS AND SOLUTION: Malfunction Phenomena Cause and Solution Turn on the machine, the power Check if the power is closed No input LED is off, the fan doesn›t work, power and no welding output Turn on the machine the fan The current potentiometer fails.
