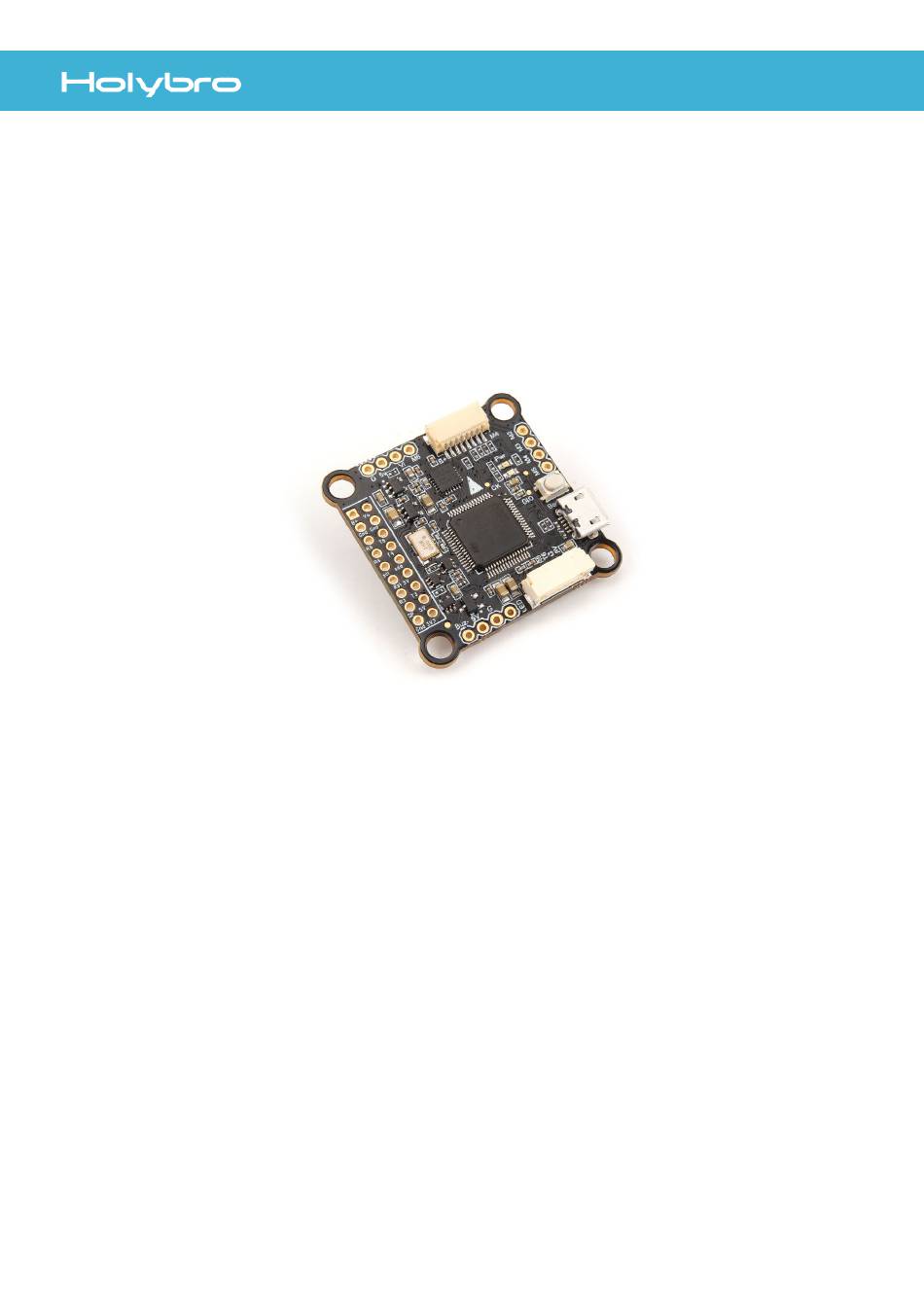

- Page 1 #11048 Kakute F4 V2.3 User Manual & Installation Guide v1.0...
- Page 2 The refund amount is limited to the price of the product. Shipping costs are never refundable. Contact us at: • Email: productservice@holybro.com • Facebook Page: Holybro • Facebook Group: Holybro Hobby Official Group P a g e www.holybro.com...

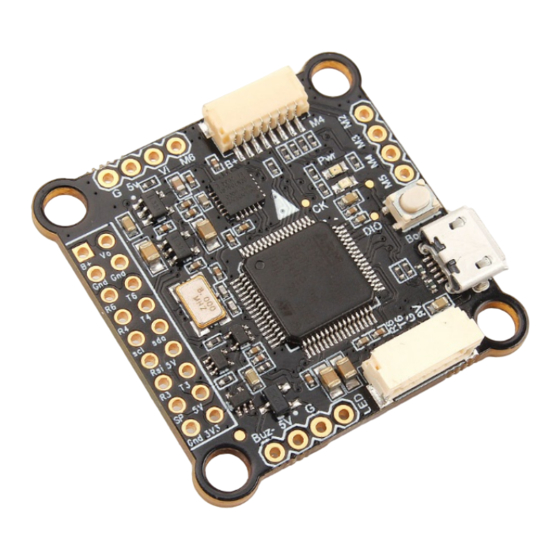

- Page 3 Overview The Holybro Kakute F4 flight controller supports important features of Betaflight/Cleanflight, such as OSD and Dshot. The faster F4 processor gives room for future feature development: run all features at the fast 8 kHz PID loop rate, at single-digit CPU utilization! Because of issues with serial inversion, other F4 boards struggle to support protocols such as FrSky SBUS and SmartPort at the same time.
- Page 4 M5 to M6 Motor signal outputs(need to resource) UART 5 RX (uninverted, for ESC Telemetry) Video output to video transmitter Video input from FPV camera Boot Bootloader button G or Gnd Ground Battery positive voltage (2S-6S) P a g e www.holybro.com...
- Page 5 JST GH 6 Pin Port Function The 6PIN GH port available on the board makes it much more convenient for you to connect HolyBro Kakute F4 V2 to the DJI FPV VTx or Caddx Vista, for both signal and power supply.
- Page 6 Wiring diagram 1).Digital HD Camera DJI AIR UNIT NULL NULL CADDX VISTA 2).ESC JST SH1.0 8Pin-8Pin VBAT CURRE CURRE P a g e www.holybro.com...
- Page 7 3).5.8G VTx ATLATL-HV V2 V >>>VO B+>>>B+ G >>>GND T>>>T6 ATLATL-Micro 4) .Analog FPV Camera & Buzzer & LED Camera VID >>>VI GND >>>G VCC >>>5V Buzzer - >>>BUZ- + >>>5V DATA P a g e www.holybro.com...
- Page 8 5).Receiver TBS Crossfire Receiver CH2 >>>T3 CH1 >>>R3 +5V >>>5V GND >>>GND Frsky Receiver GND >>>GND S.Port SBUS VCC >>>5V SBUS>>>RX3 S.Port >>>SP P a g e www.holybro.com...
