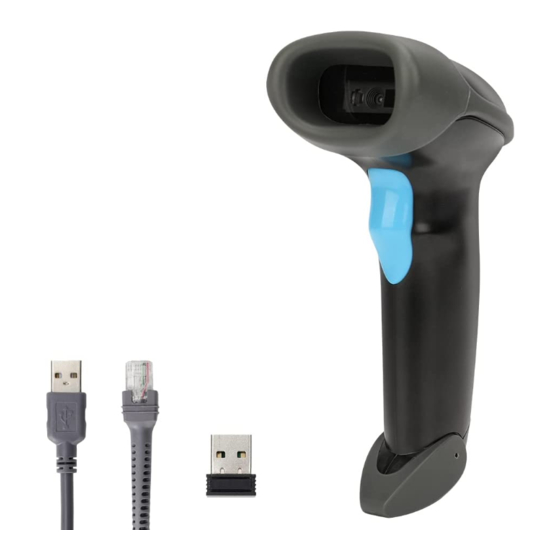

AI 2.4G&-BS-WS40-V User Manual

Wireless barcode scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Ai Hardware
wireless barcode Scanner
2.4G&AI-BS-WS40-V
User Guide
vision：V1.5
1 / 27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2.4G&AI-BS-WS40-V and is the answer not in the manual?

Questions and answers

Summary of Contents for AI 2.4G&AI-BS-WS40-V

  • Page 1 Ai Hardware wireless barcode Scanner 2.4G&AI-BS-WS40-V User Guide vision：V1.5 1 / 27...

  • Page 2: Table Of Contents

    Contents Contents ..................................2 2、Data interface ................................. 3 2.4 G&RF 433 wireless data interface can be divided into the sending end of data interface and data interface at the receiving end................................3 2.1 The data interface of sender ........................... 3 2.1.1 Barcode scanning decoding module connection ....................

  • Page 3: 2、Data Interface

    1.2 A brief introduction AI-BS-WS40-V wireless solutions AI-BS-WS40-V wireless solutions using STM32FC8T6 (MCU) + Si4438 (RF) way to realize wireless sending and receiving data. 2、Data interface 2.4 G&RF 433 wireless data interface can be divided into the sending end of data interface and data interface at the receiving end.

  • Page 4: The Data Format Of Setting Command

    scan one or more Settings （3）Scanning：scan “@END”. （4）Some functions can be set directly. such as “pairing”, “discharge pairing” 3.2 The data format of setting command Table 3.3-1 The data format of setting command table① Prefix Target Type Parameter Reference the data format T-/R-/W- ***** of setting command table...

  • Page 5: Pairing

    Notice☆:1. For the setting of the non-quick setting command, it is necessary to scan into the setting command first, and then scan the corresponding parameter setting instruction and finally scan the saving and exit setting instruction. 3. If in setting state, scanned the setting bar code, the system will identify as invalid barcode, low sound alarm, invalid alarm belongs to the normal situation.

  • Page 6: To Change The Frequency Of The Wireless Reception

    language setting of the sender is successful and the language of the receiver is not changed. 4.3 To change the frequency of the wireless reception Function Command Barcode Remark @SET ①To change the receiving WN-R-C0000 Methods①：Automatic address @END Note★:After the receiver frequency is changed, it must be re-powered (unplug the receiver to re-insert) before pairing, otherwise communication will not be possible.
  • Page 7 @.WN-T-F2002 Data sum Upload the sum of barcode @.WN-T-F2003 Clear data To clean the data of barcode Instructions： ☆:1、 Working mode of six instructions for quick setup, state changes save directly, without scanning into the keep out of the setup instructions and instructions; Work mode of "real time"...

  • Page 8: Restore The Factory Settings

    Case key(CapsLK)on @.WN-W-F3202/ ★ 4.7 Sleep times setting Function Command Barcode Remark @SET *20 sec WN-T-G0001 60 sec WN-T-G0003 3 min WN-T-G0009 5 min WN-T-G0015 15 min WN-T-G0045 30 min WN-T-G0090 After startup, with no sleep (applicable to when used to non-sleep WN-T-G0000 connect wireless scanner cable...
  • Page 9 1. The serial output function can be used only on devices that support serial output (hardware). Currently, only the AI-BS-WS40-V receiver WN-R-L10 supports serial output. RS232 output 2. The new product optimizes the transmission method. USB...

  • Page 10: The Command Of Firmware Upgrade

    4.9 The command of firmware upgrade Function Command Barcode Remark @SET 1. The receiver is connected to the PC via USB, and in the case of pairing, after the scanner scans the barcode, the receiver reinserts the receiver after receiving it. 2.

  • Page 11: The Sender Wired Output

    test When multiple scanners are connected to a receiver, *Disable connection detection needs to connection WN-T-C0002 be turned off. The factory test default is to disable connection detection. @END 4.11 The sender wired output Function Command Barcode Remark @SET 1. After open the sender after the PCB via USB cable connection, connection can * Enable USB wired...
  • Page 12 1, a serial port output function only in support of a serial port output devices (hardware) can use, now only AI-BS-WS40-V receive support serial output 2, RS232 mode WN-R-L1002 optimizes the transmission way of new products. USB and RS232 serial port...

  • Page 13: 4．13 Auto Trigger

    3.10.3 Stop bit *1 Stop Bit WN-R-D1003 2 Stop Bit WN-R-D1004 3.10.4 Parity bit *No Parity WN-R-D1005 Odd Parity WN-R-D1006 Even Parity WN-R-D1007 @END Note★：The serial port setting can be used normal on support serial output equipment only 4．13 Auto trigger Function Command Barcode...
  • Page 14 Function Command Barcode Remark @SET No end symbol WN-T-I1000 No end symbol Custom end symbol can be composed of Custom end ASCII codes of any WN-T-I100A symbol character, customers can set according to need @END The sample of end symbol mode setting：To set a start symbol “%B”in barcode “1234567”,The barcode data will be “1234567%B”.

  • Page 15: Receiver Instructions System

    *Enable sending successful voice WN-T-E1001 prompts Turn off sending successful voice WN-T-E1002 prompts @END Note: This function is mainly for module use. Most modules have boot sound and scan code sound, so the boot sound of the motherboard and the wireless send sound are turned on. The two sounds overlap.
  • Page 16 Boot to detect hints Wireless module to detect Short three beeps(high Red light blinks three times anomalies frequency) External storage module Long two beeps (high frequency) Red light blinks twice abnormal Short Four beeps（high／mid／ Power on Green light normally on low frequency）...

  • Page 17: Receiver Led Light Indicator

    Red light on (does not affect Low battery tips None the green light to red light) Quick command indicators Long one beep and short two Green light blink once Quick instructions beeps（high／mid／low frequency） Data Overflow Red light blink once Data Overflow Long one beep(Low frequency) 5.2.1 Receiver LED light indicator Serial number...

  • Page 18: 7、Inventory Mode To Save And Read Data Packet Format

    u8 pkt_part 1 byte Long subcontract send number barcode data u8 payload[29] Max 29byte Effective data area (Data of barcode) 7、Inventory mode to save and read data packet format： The statement field Size Description u16 len 2byte The length of the barcode The size of the data barcode_buf[520] of effective...

  • Page 19: Symbol Table

    U8 pkt_repeat 1byte Packets duplicate detection Effective data area (Data of barcode)( Plan to u8 pkt_payload [56] Max 56byte increase to120Bytes) ACK packet format The statement field Size Description The length of the packet (The entire packet length， U8 pkt_length 1byte contains the length of byte) [7] Address pairing indication marks...
  • Page 20 ^I（HTab） ^J（LF） ^K（VTab） ^L（FF） ^M（CR） ^N（SO） ^O（SI） ^P（DLE） ^Q（DC1） ^R（DC2） ^S（DC3） ^T（DC4） ^U（NAK） ^V（SYN） ^W（ETB） ^X（CAN） ^Y（EM） ^Z（SUB） ^[（ESC） ^\（FS） ^]（GS） 20 / 27...
  • Page 21 ^^（RS） ^_（US） Symbol " & 21 / 27...
  • Page 22 < > 22 / 27...
  • Page 23 23 / 27...
  • Page 24 24 / 27...
  • Page 25 Function keys 25 / 27...
  • Page 26 Backspace Return（ENTER） Enter（Numeric Keypad） Arrow Down Arrow up Arrow right Arrow left Insert Home 26 / 27...
  • Page 27 Page up Page down Left Shift Left Ctrl Left Alt Left GUI Right Shift Right Ctrl Right Alt Right GUI Caps Lock 27 / 27...
