Summary of Contents for Qanon TC15

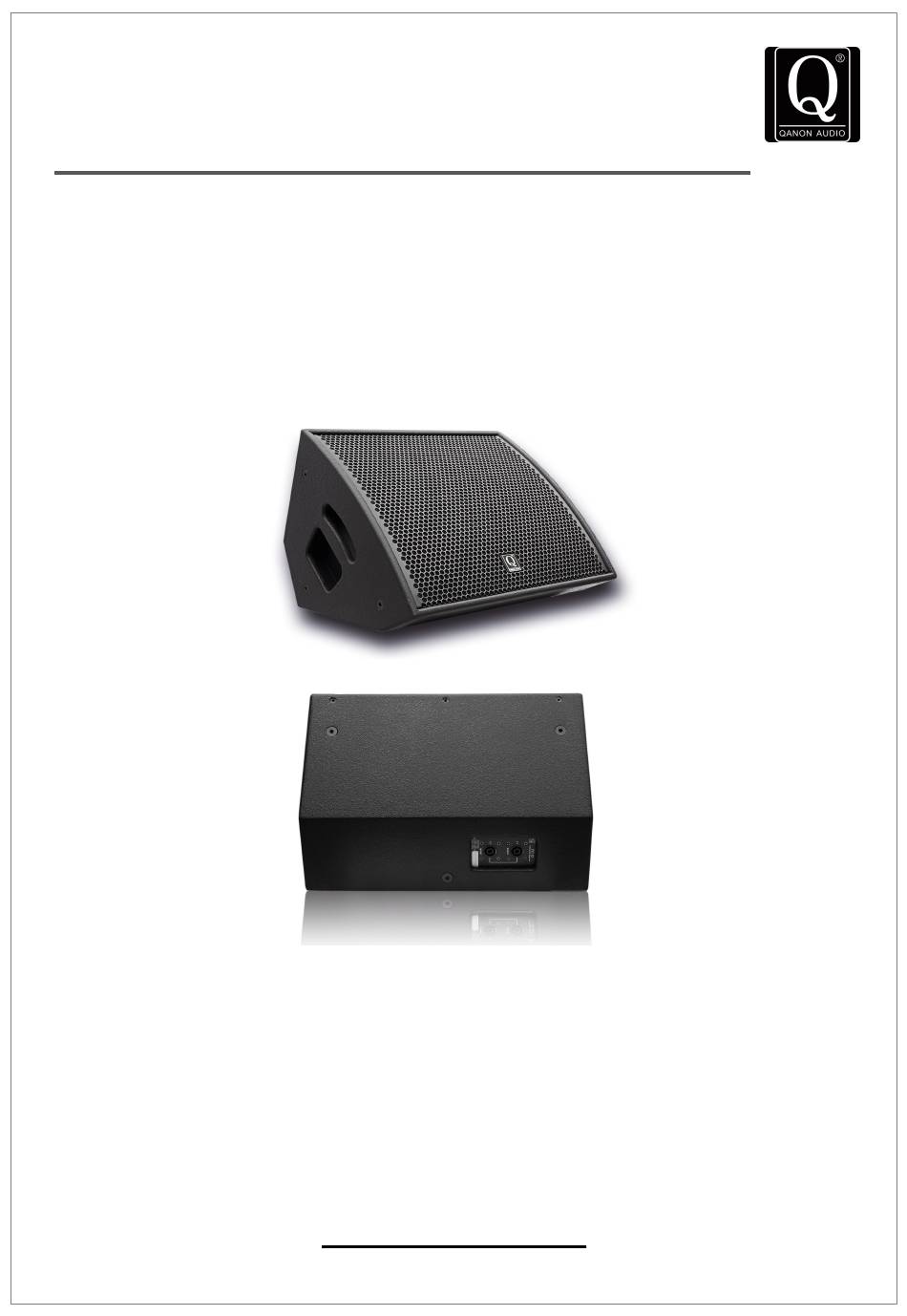

- Page 1 TC15 PASSIVE 2-way COAXIAL www.qanon-audio.com - 1 -...
-
Page 2: Safety Instructions

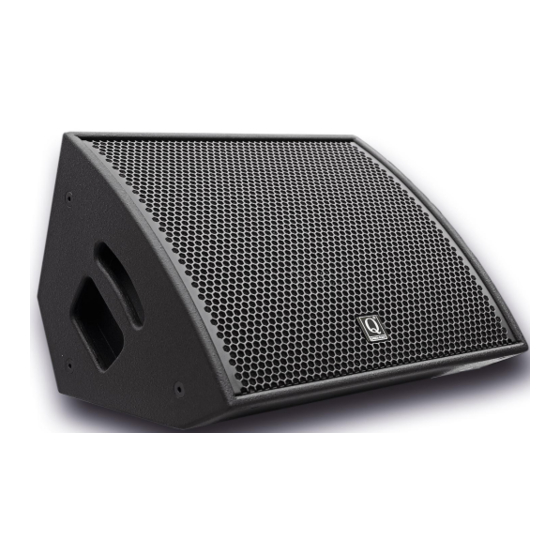

Do not resell products without this update document Thank you for purchasing QANON AUDIO #TC15. The container shall contain - 1 #TC15 enclosure. Each QANON AUDIO #product has been tested and inspected before it leaves the factory and should arrive intact. - Page 3 TC15 TC15 is 2-way full frequency coaxial structure and high performance stage monitor, provide the frequency range of 60Hz-18kHz，Composed of a 15” low frequency and 1.75” high frequency compression unit, the constant directional diffusion angle, with a custom unit and waveguide technology,40°...
- Page 4 TC15 Technical Specification TC15 Technical Specification Type Passive 2-way Coaxial Enclosure Frequency Response(Preset) 55Hz - 18kHz(±3dB) Horizontal 40° Vertical 60° 55°(1) Monitor Angle 15°(2) LF ： 1×15" （ Ferrite ） Drivers HF ： 1×1.75" （ Ferrite ） LF ： 350W Handling Power (AES) HF ：...
- Page 5 Dimensions CAD 460mm [18.12''] 460mm [18.12''] 360mm [14.18''] www.qanon-audio.com - 5 -...
- Page 6 The design and application of TC15 coaxial monitor system can be used in many functions. The monitoring angle is matched with two kinds angles, 55 degrees and 15 degrees, TC15 and V18 / Xiv18 ultra low frequency loudspeaker ground stack integration. The addition support ⌀ 35mm pole socket can be used with Xiv18, providing fast and simple ground and stack application.
- Page 7 TC15-Touring case: removable front case on wheels (two TC15) TC15-Cover: one TC15 Rigging Frame Accessories TC15 Circular Rigging(M10) Speaker Cable TC15 2Pin NL4 2 x 4 mm² （50cm） TC15 2Pin NL4 2 x 4 mm² （15m） www.qanon-audio.com - 7 -...
- Page 8 VDA18 / C15 Maximum number of enclosures per Amp Enclosure Max enclosure in parallel Max enclosure per controller TC15 TC12 TC10 H800 Maximum number of enclosures per Amp Enclosure Max enclosure in parallel Max enclosure per controller TC15 TC12 TC10...
